BPS-LFP-60AHP
BENERGY
003260
Model No.: BJN-LFP60AHP
Parameter Table:
| Product Type | Lithium Iron Phosphate Cell |
| Shell Type | Aluminum Sell |
| Brand Name | Benergy |
| Voltage | 3.2V |
| Nominal Capacity | 60AH |
| Minium Capacity | 60AH |
| IR | ≤2mΩ |
| Size | 36*130*170mm (W,L,H) |
| Weight | 1250g±150g |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Max Charge Current | 30A (0.5C) |
| Charge Cut Off Voltage | 3.65V±0.05 |
| Standard Discharge Current | 30A (0.5C) |
| Max Continuous Discharge Current | 120A (2C) |
| Peak Discharge Current @3 sec | 180A |
| Discharge Cut Off Voltage | 2.5V |
| Terminals | M8 |
| Cycle Life | >2000 Times (0.5C charge/discharge, 100% DOD) |
| Discharge Temperature | 0～45℃ |
| Charge Temperature | 0～45℃ |
| Application | Telecom sation building, solar system , energy storage, golf cart, EV etc. |
| Warranty | 2 Years |
| OEM/ODM | Yes(Accepted) |
Cell Diagram:
Discharge curves
Benergy 3.2V 60Ah cell can bear 10C discharge, can widely used for EV ,Power tools, UPS, Solar.
Product Picture:

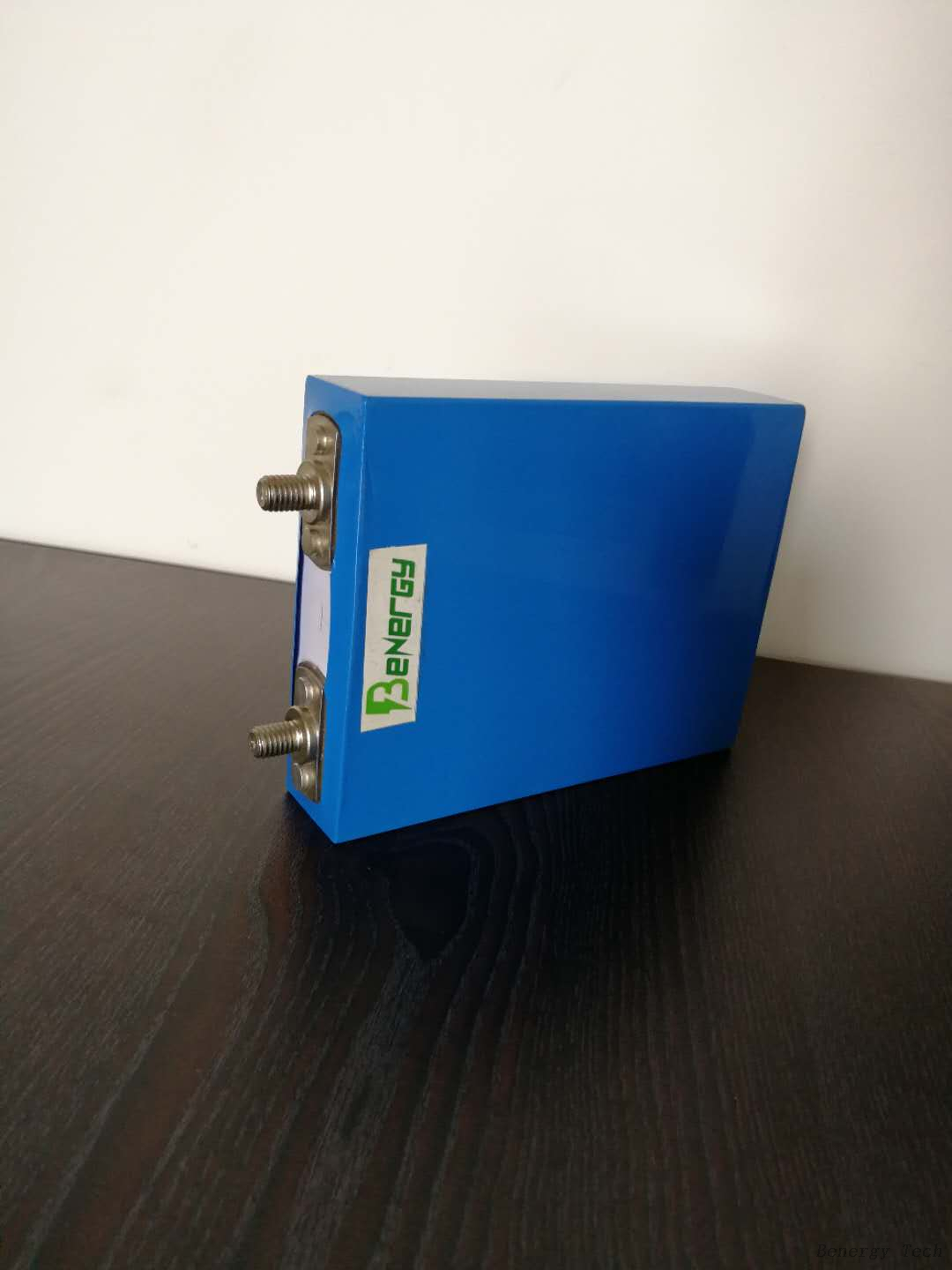

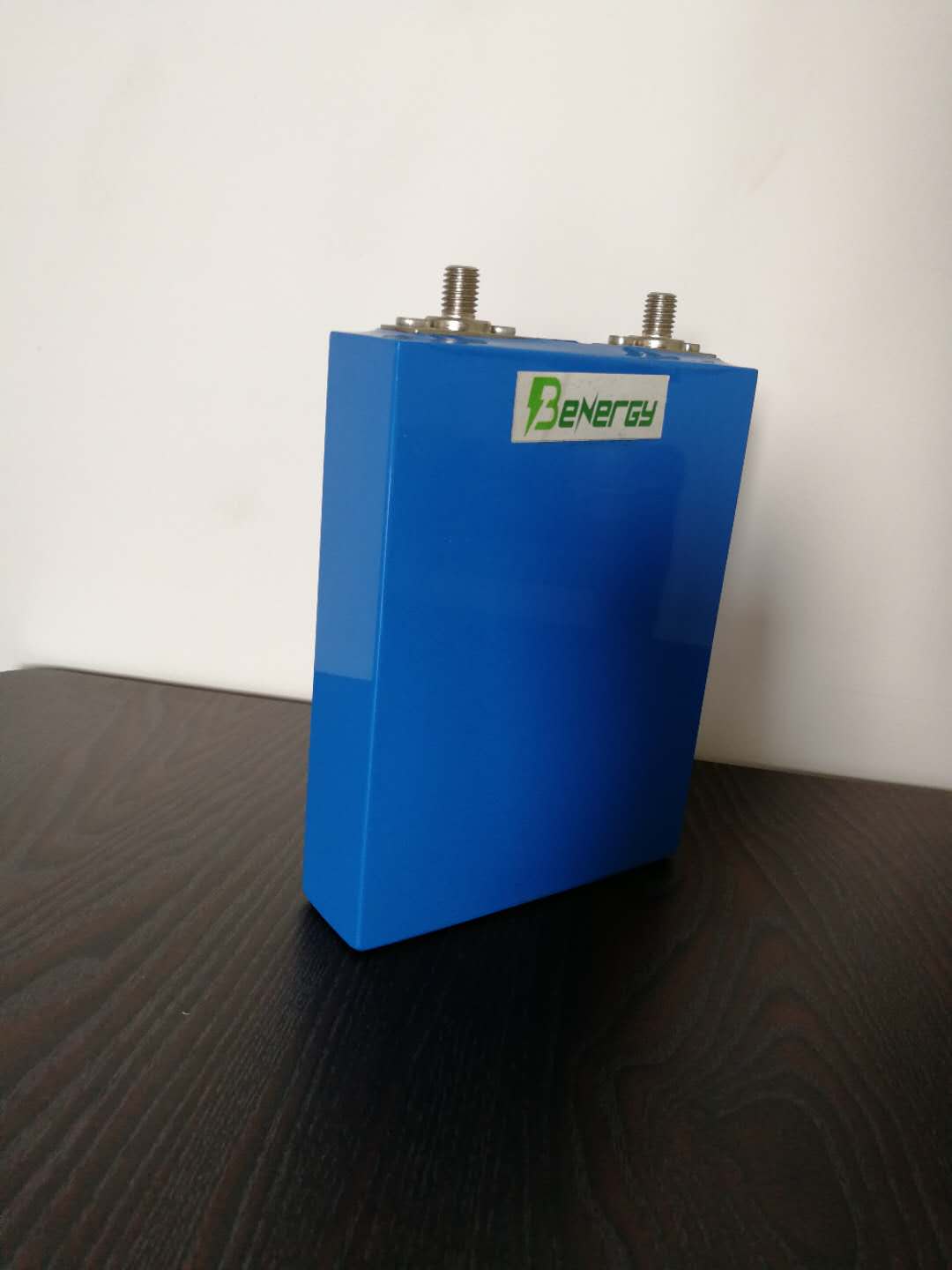

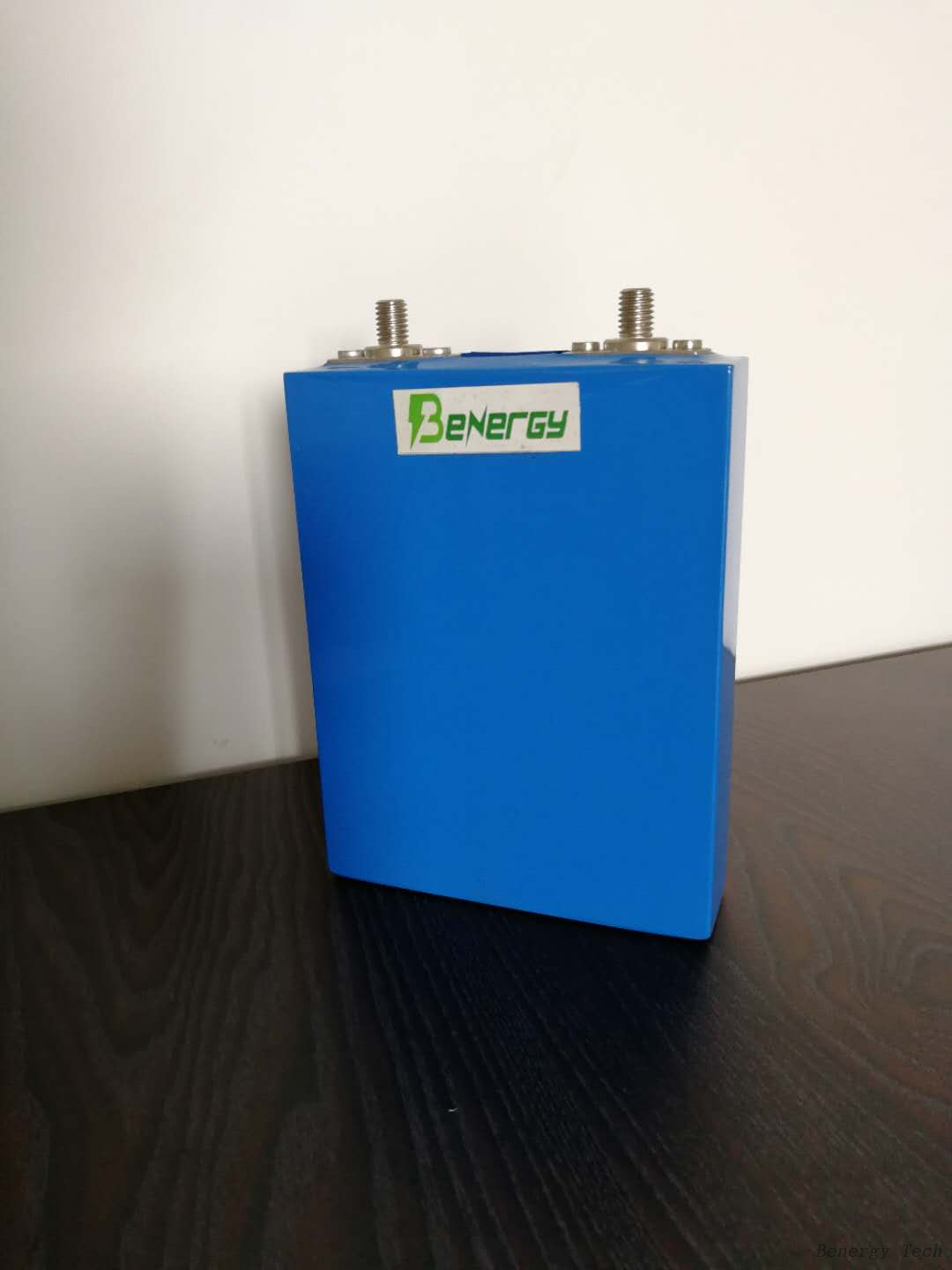

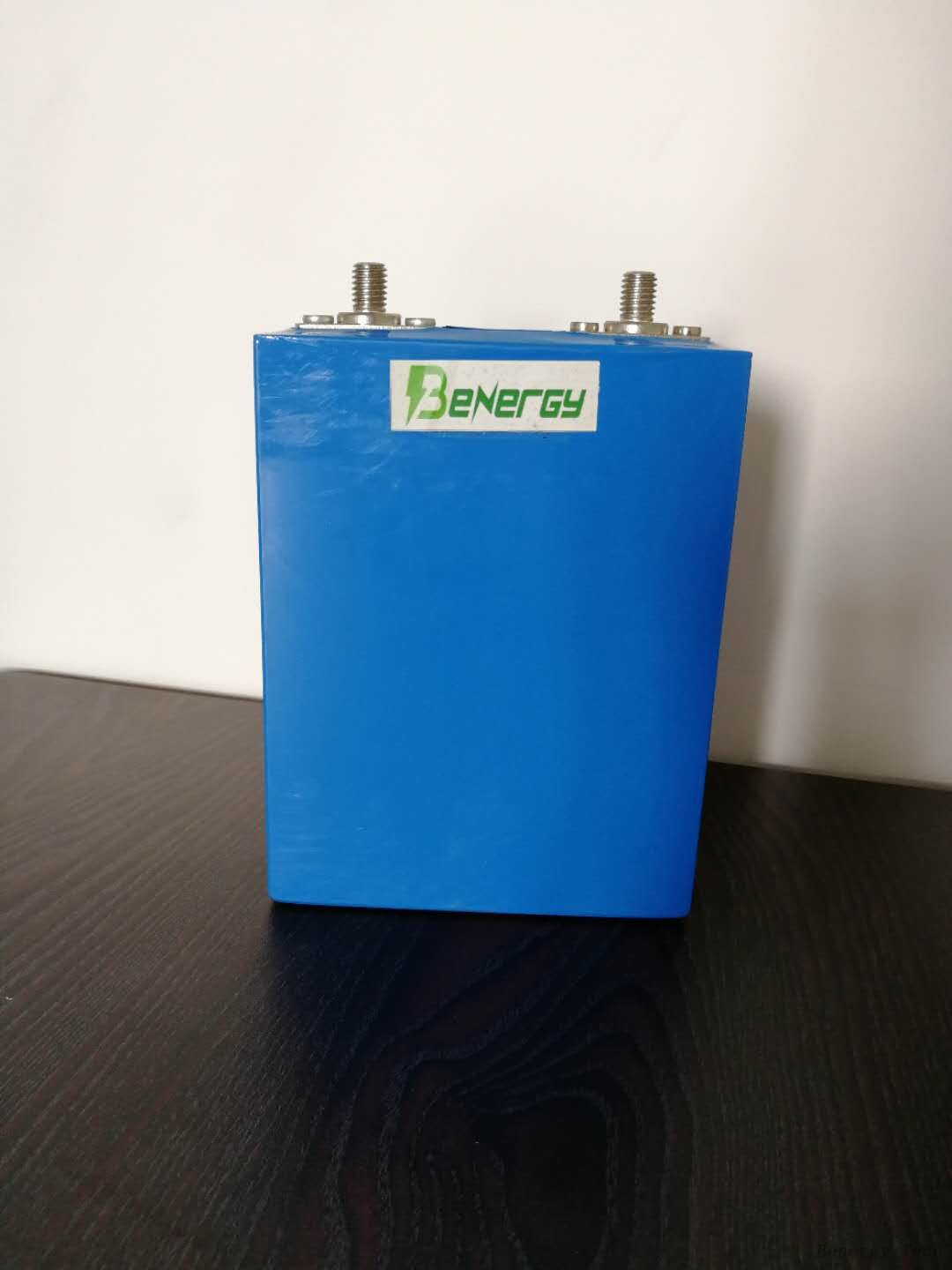

New produced cell with no PVC
New produced cell with PVC
Characteristic:
1. Long cycle life: More than 3000 times (charge and discharge at 1C, 80% capacity retention after 3000 cycles);
2. High safety: No fire and explosion in overcharge test;
3. High Energy Density: 40AH single cell weight 750g, size:36*130*158mm (W, L, H with terminal)
4. Good charging and discharging performance;
5. All raw material of the batteries are environmental-friendly;
6. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.
7.Produced with automatic equipments.
Package:
Applications of Benergy Lifepo4 Battery:
Electric bike, Electric wheelchair, Electric scooter, Electric motorcycle, Golf cart, Electric robot, Vacuum cleaner, Electric mower, Wind/solar energy storage ...
Our production line:
Certifications:
