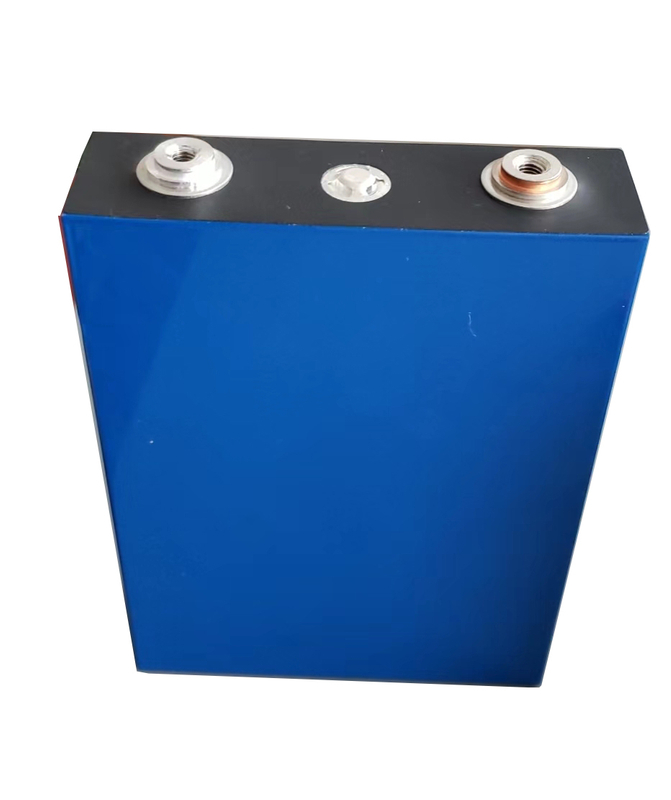

Lifepo4 Battery 3.2V 40AH Prismatic Cell

Availability:
Quantity:
  • BPS-LFP-40AHP
  • BENERGY
  • 003240

3.2V 40AH Lifepo4 cell. Screw terminal design. Easy for pack composing.Can made different packs in series or in parallel.  3.2V 65AH 3


Model No.: BPS-LFP40AHP



Characteristic:

1. Long cycle life: More than 3000 times (charge and discharge at 1C, 80% capacity retention after 3000 cycles);

2. High safety: No fire and explosion in overcharge test;

3. High Energy Density:  40AH single cell weight 750g, size:36*130*158mm (W, L, H with terminal)

4. Good charging and discharging performance;

5. All raw material of the batteries are environmental-friendly;

6. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.

7.Produced with automatic equipments.


Specification:

Item

Specification

Remark

1. Nominal Capacity

40AH

0.2C Capacity

2. Nominal Voltage

3.2V


3. AC Impedance   Resistance

≤1.5mΩ

AC 1KHz

4. Discharge Cut-off Voltage

2.5V


5. Charge Cut-off Voltage

3.65V


6. Standard charging   current

8A

0.2CmA

7. Max. Charging   Current

40A

1CmA

8.Standard Discharging   current

40A

1CmA

9. Max. continuous discharging   current

120A

3CmA

10.Peak discharging   current @5sec

200A

5CmA

11.Weight

≤1250g


12.Size

36*130*158mm

Thickness, Length, Height

13.Cycle life

≥3000 Times

100%DOD, capacity left for more than 80%.

14.Operating Temperature

Charge

0~+45℃


Discharge

-20~+60℃


15. Storage

Temperature

less than 1 month


-10~+45℃

Recommend storage at 20℃ during transportation


less than 6month


-10~+35℃

Low temperature 50AH single cells size03

Applications of Benergy Lifepo4 Battery:

Electric bike, Electric wheelchair, Electric scooter, Electric motorcycle, Golf cart, Electric robot, Vacuum cleaner, Electric mower, Wind/solar energy storage ...
