High Voltage 204V 50AH 10.24KWH Energy Storage System for on Grid/ Off Grid/hybrid Solar System
High Voltage Hybrid Charging Lifepo4 Solar Battery 204V 50AH Energy Storage System
| Power | 10.24KWH | 15.36KWH | 20.48KWH | 25.6KWH | 30.72KWH | 35.84KWH | 40.96KWH |
| Battery pack number | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Max discharge current | 50A | 50A | 100A | 100A | 100A | 100A | 100A |
| Peak discharge current | 100A, 3S | 100A, 3S | 200A,3S | 200A,3S | 200A,3S | 200A,3S | 200A,3S |
| Nominal voltage | 204V | 307V | 204V | 256V | 307V | 358V | 409V |
| Battery capacity | 50AH | 50AH | 100AH | 100AH | 100AH | 100AH | 100AH |
| Voltage range | 160-230V | 240-354V | 160-230V | 200-290V | 240-345V | 280-403V | 320-460V |
| Size(L*W*H,mm) | 602*403*702 | 602*403*902 | 602*403*1102 | 602*403*1302 | 602*403*1502 | 602*403*1702 | 602*403*1902 |
| Weight (KG) | 150KG | 202KG | 253KG | 305KG | 357KG | 409KG | 461KG |
| Matched inverter power | <10KW | <15KW | <20KW | <25KW | <30KW | <35KW | <40KW |

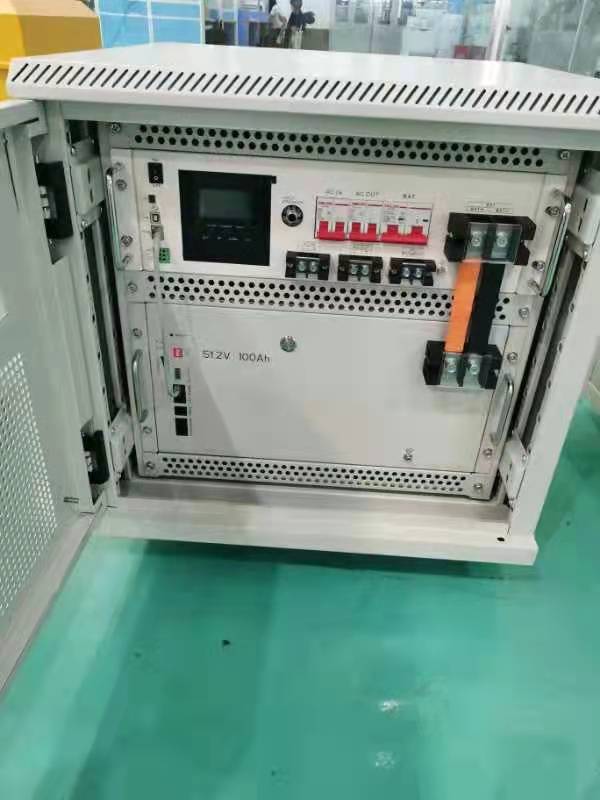

Battery pack picutre:
Details:
Can match with on-gird,hybrid solar system, UPS, energy storage system.
Product Advantages
1. Long cycle life. More than 3000 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);
2. High energy density. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
4. LCD to monitor the battery pack condition.
5. Good charging and discharging performance. 3C continous discharge and 10C burst.
6. Full green and no pollution. All raw material of the batteries are environmental-friendly,
7. Wide operational temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.
Package
Certification
Don't wait - contact us now to get started on your journey to success!
Benergy Tech Co., Ltd
Kevin Zhang
What's app: +86-135 8045 2443
