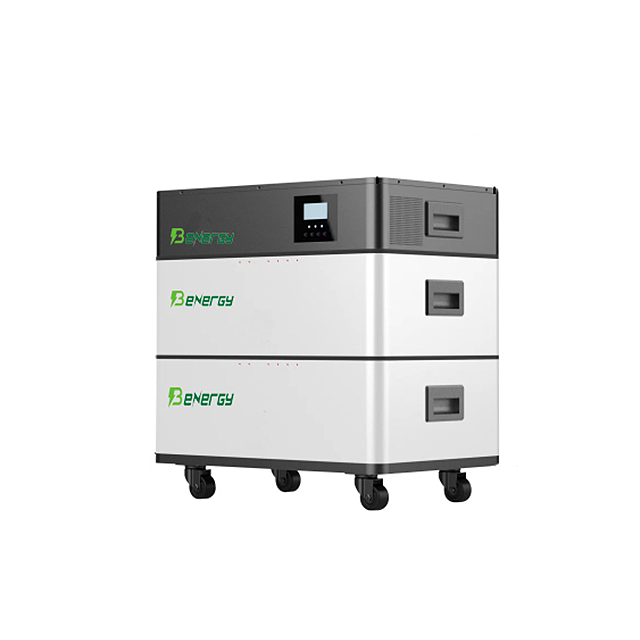

Household EES/UPS/Solar System Lifepo4 Battery 51.2V 200AH 10.24KWH
Household EES/UPS/Solar System Lifepo4 Battery 51.2V 200AH 10.24KWH
For solar system, Energy Storage System, UPS , Off grid System ect.
Model No.: BFB-48200AHP
Characteristic:
1. Long cycle life: Single cell more than 3000 times (charge and discharge at 0.2C, 80% capacity retention after 3000 cycles);
2. High safety: No fire and explosion in overcharge test;
3. Good charging and discharging performance;
4. All raw material of the batteries are environmental-friendly;
5. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.
6.Produced with automatic equipments.
7. Movable.
Specification:
Specification | |
Phase | Single Phase |
Maximum output power | 3KW/4KW/5KW selectable |
Rated voltage | 51.2V |
Rated capacity | 200AH |
Continuous discharge current | 100A |
Max peak discharge current | 110A/10S |
Standard charge current | 50A |
Fast charge current | 100A |
Can parallel number | 2~15 |
Optional capacity range | 10.24~76.8KWH |
Cooling way | Natural cooling |
Battery type | Lifepo4 battery |
Designed lifespan | ＞15 years @25℃ |
Cycle life | ≈10000 Times |
Rated grid frequency | 50HZ/60HZ Automatic detecting |
Grid voltage range | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% |
Photovoltaic maximum input power | 4200W |
MPPT voltage range | 60-115Vdc |
Charging and discharging efficiency of the whole system | >92% |
Battery voltage range | 40.0Vdc~60Vdc ± 0.6Vdc (Undervoltage alarm/ Shutdown voltage / overvoltage alarm / overvoltage recovery... LCD screen Settable) |
Warranty | Battery pack（10 years） Inverter（5 years） |
Certification | |
Battery certification | CE, UN38.3, MSDS,ROHS |
Cell certification | CE, UL, IEC62109, IEC62477, EN61000, UN38.3 |
Mechanical parameters | |
Inverter size/weight | 602*403*139mm/15KG |
Battery size/weight | 602*403*200mm/55KG(single layer） |
Chassis size / weight | 602*403*82mm/6KG |
Environmental parameters | |
Storage humidity range | ≤85%RH |
Running temperature range | 20℃~55℃ |
Recommended running temperature | 25℃ |
IP range | IP21 |
Application:
UPS
Telecom Base station, Lighting, Small Doctor instruments, Stand by Power, Mining lighting, LED torch, Video, Heating garment, data acquisition power, Electric water pump, Road side night warning indicator, laser sensor
Power tools
Electric lawn mower, electric drill, electric vacuum cleaner, Electrical tools
Power storage system
Solar system, Solar pv system, Solar LED street light,Tidal energy, Wind / solar energy, on & off grid solar system
