5G Tower Telecom Battery Smart 48V 100AH Rack Mounting
Telecom Tower Base Station Rack Mounting Battery 48V 100AH
Parameter Table:
| Model | BSM-48100AHP | Smart 48V 100AH Lifepo4 Battery Pack | |
| Battery Type | LFP | ||
| Rated Voltage | 48V | ||
| Rated Capacity | 100AH | ||
| Energy | 4800WH | ||
| Rated Discharging Voltage | 56.4V | ||
| Discharging Voltage Range | 40-58V (consistant voltage) | ||
| Cut off voltage | 40V | ||
| Outoput Power | 4800W | ||
| Max. Charging& Discharging Current | 100A | ||
| Max. Continuous DischargingCurrent | 100A | ||
| Discharging End Voltage | 40A | ||
| Cycle Life | >4000 Times | (25℃, 0.5C charge and discharge ,80%DOD, ) | |
| Balance Method | Passive balancing | 100mA | |
| Dimensions | 442*400*133MM | W*D*H | |
| Weight | 46KG | ||
| IP Grade | IP20 | ||
| Communication | RS485*1,CAN*1,and dry contact*2 | ||
| Parallel Connection | Up to 32packs(CAN)/ 16packs (RS485) | ||
| WorkingTemperature | Charging | 0℃ to 45℃ | |
| Discharging | -20℃ to+45℃ | ||
| StorageTemperature | 0℃ to 40℃ | ||
| Relative Humidity | 5%-95%RH (non-condensing) | ||
| Heat Dissipation | Natural cooling | ||
| Protection and Alarm | Over-heat,over-current,short-circuit,over-charging, over-discharging,etc. | ||
| Working Mode | Default mode,main bus voltage aligning mode,constan tvoltage discharging mode,peaking-shaving mode,peak-shifting mode,etc. Optional | ||
| Accessories | Anti-theft gyroscope (Optional) | ||

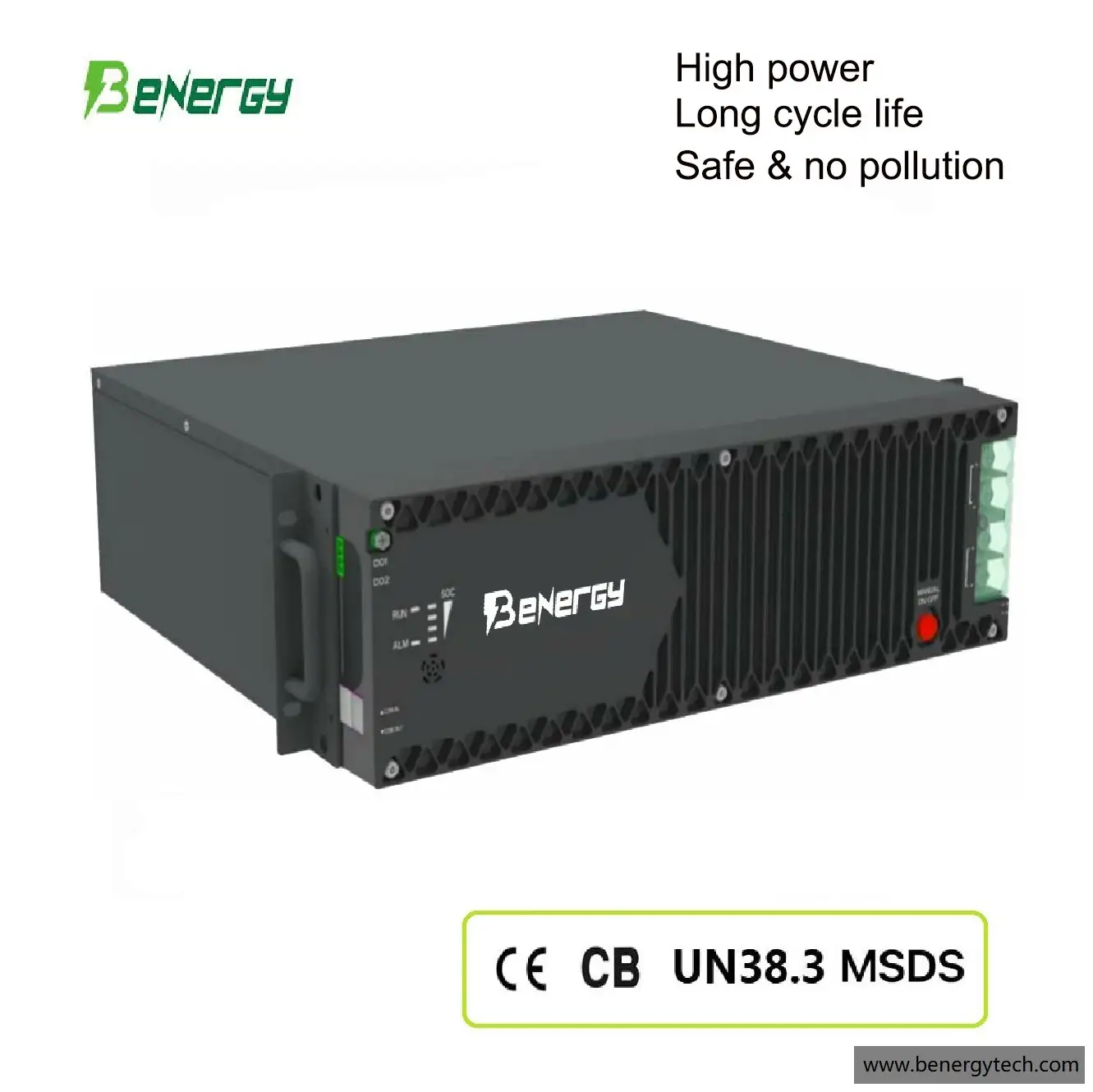

Product Picture:
Our Battery Pack Details :
Cells are weldered with BMS and connectors by laser welding machine
Product Advantages
1. Long cycle life. Comparing to lead acid battery, the cycle life of Benergy Lifepo4 batteries is about 4-5 times longer than lead acid batteries.
2. High energy density. Benergy Lifepo4 battery's size is 1/3 smaller than lead acid battery, 2/3 lighter in weight than lead acid battery.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
4. Good charging and discharging performance. Benergy Lifepo4 batteries can bear 3C continous discharge and 10C burst discharge.
5. Full green and . All raw material of Benergy batteries are environmental-friendly, no pollution to the environment.
6. Wide working temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.
7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.
8. Free maintanance. Benergy battery pack don't need frequent maintanance after installation, which will be more economical for long time using.
Benergy 48V 100AH battery packs for 5G base station are under Testing:

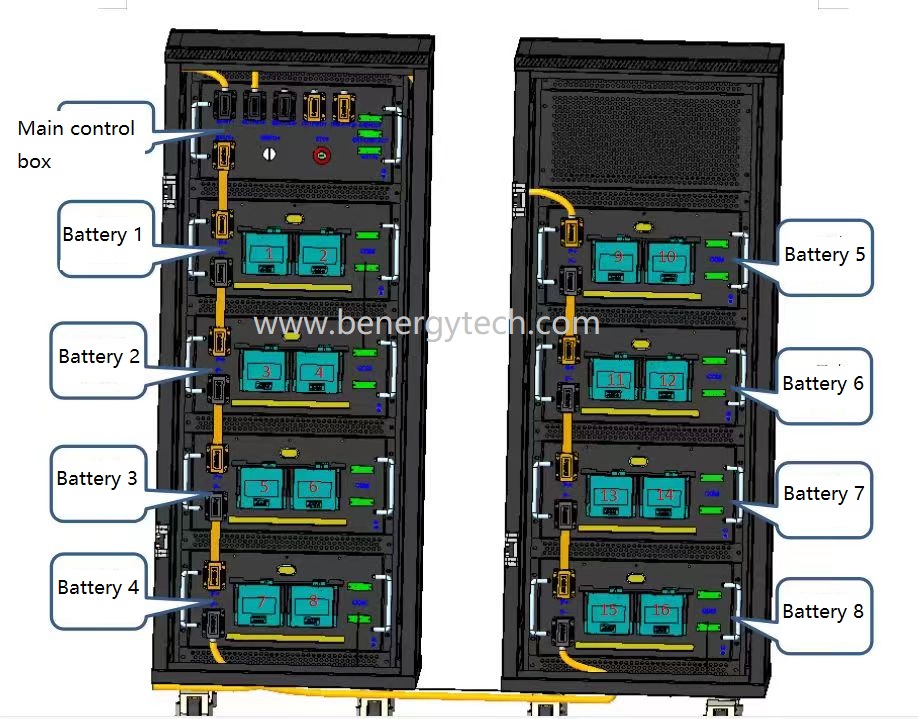

Can stack the battery packs to make high voltage battery packs. (Put the 48V 100AH battery packs into series or parallel them)

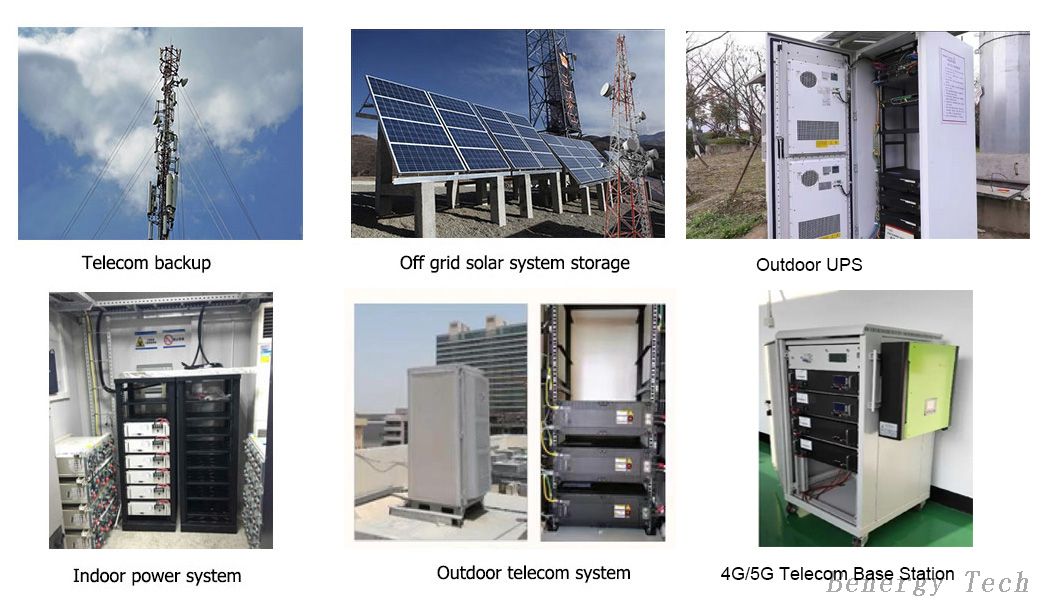

Applications:
Benergy Lithium ion phosphate (Lifepo4 )batteries are used in a variety of applications, like various electric vehicles, storing energy from renewable sources such as solar and wind power, and providing backup power for critical applications such as hospitals , 5G station building and data centers.
Production line details and packages:
Certifications:
Benergy can provide CE, ROHS, MSDS, UN38.3, CB, IEC62619, IEC 62133 for our batteries.
Our team of experts is ready and waiting to assist you - get in touch now!
Sales Engineer:Kevin Zhang
What's app: +86-135 8045 2443
