Telecom Tower Base Station Rack Mounting Battery 51.2V 100AH
Telecom Tower Base Station Rack Mounting Battery 51.2V 100AH
Specifications:
| No. | Technical parameter | 51.2V 100AH |
| 1 | Rated Capacity | 100Ah |
| 2 | Nominal voltage(15S) | 51.2V |
| 3 | Battery pack max float voltage | 58.4V |
| 4 | Discharge cut off voltage | 40V |
| 5 | Max charge current | 50A |
| 6 | Max discharge current | 100A |
| 7 | Battery pack weight | 50±1kg |
| 8 | Size | 176*442*480MM |
| 9 | Charge temperature | 0℃~55℃ |
| 10 | Discharge temperature | -10℃~55℃ |
| 11 | Storage temperature | -10℃~55℃ |
| 12 | Cooling way | Natural cooling |
| 13 | Communication | CAN/RS232/RS485 |

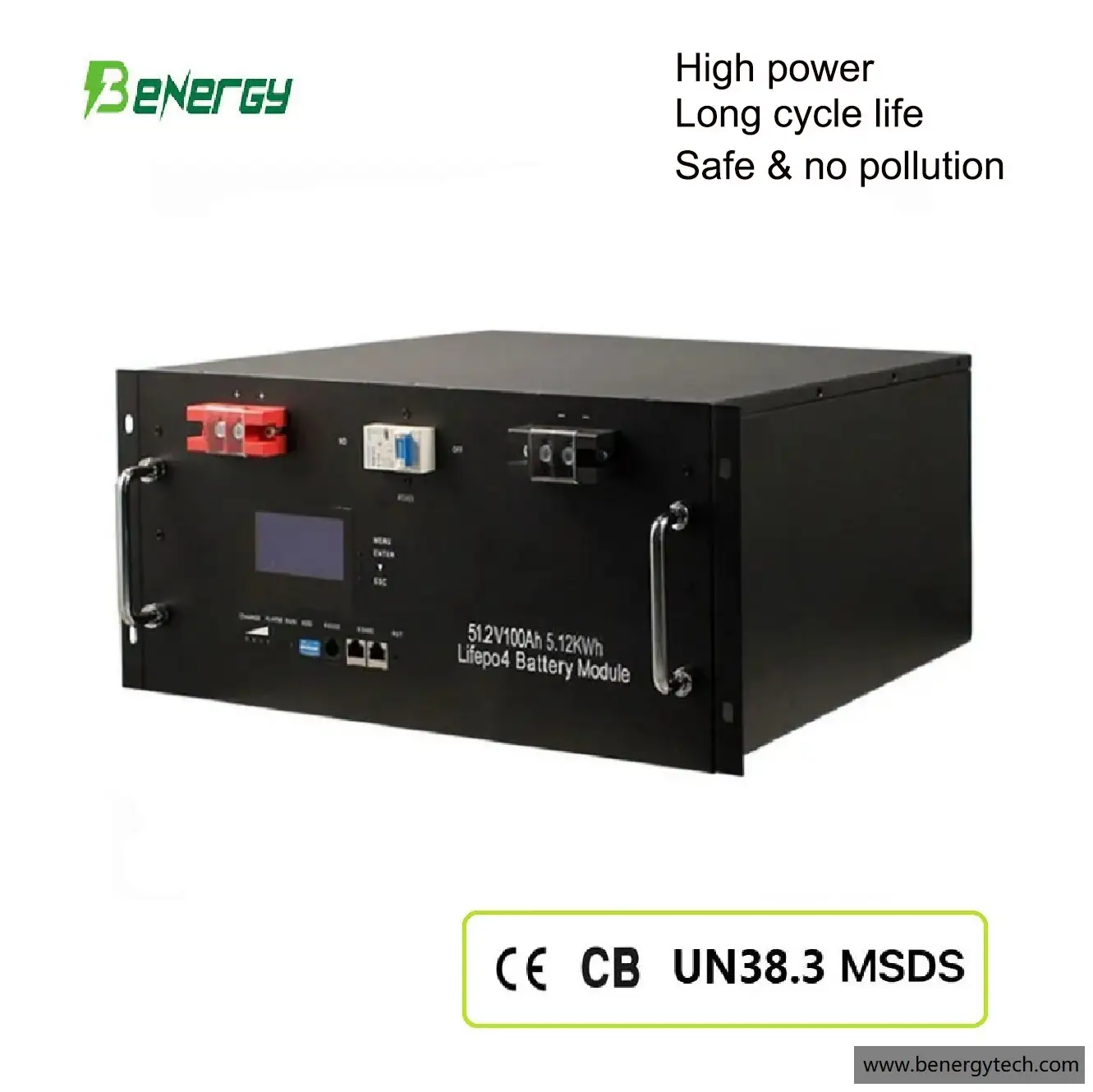

Product Picture:

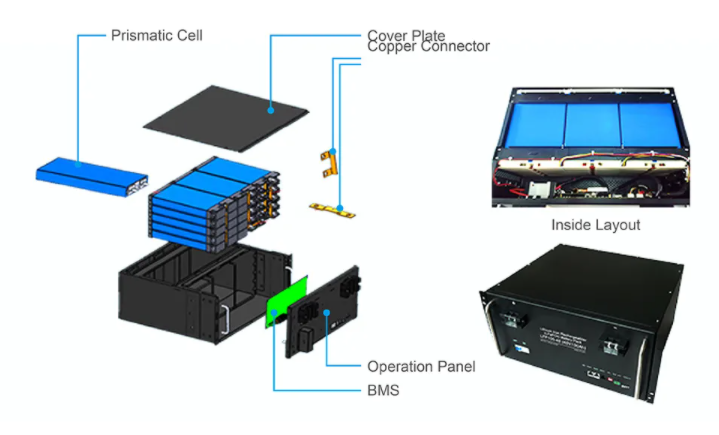

Details:
Product Advantages
1. High energy density. Can fully replace lead acid battery. For 4G/5G telecom station base building, energy storage system, solar system etc.
2. Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles), designed life more than 10 years.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
4. Free maintainance. No need to maintane like lead acid battery.
5. Full green and . All raw material of the batteries are environmental-friendly,
6. Wide working temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.

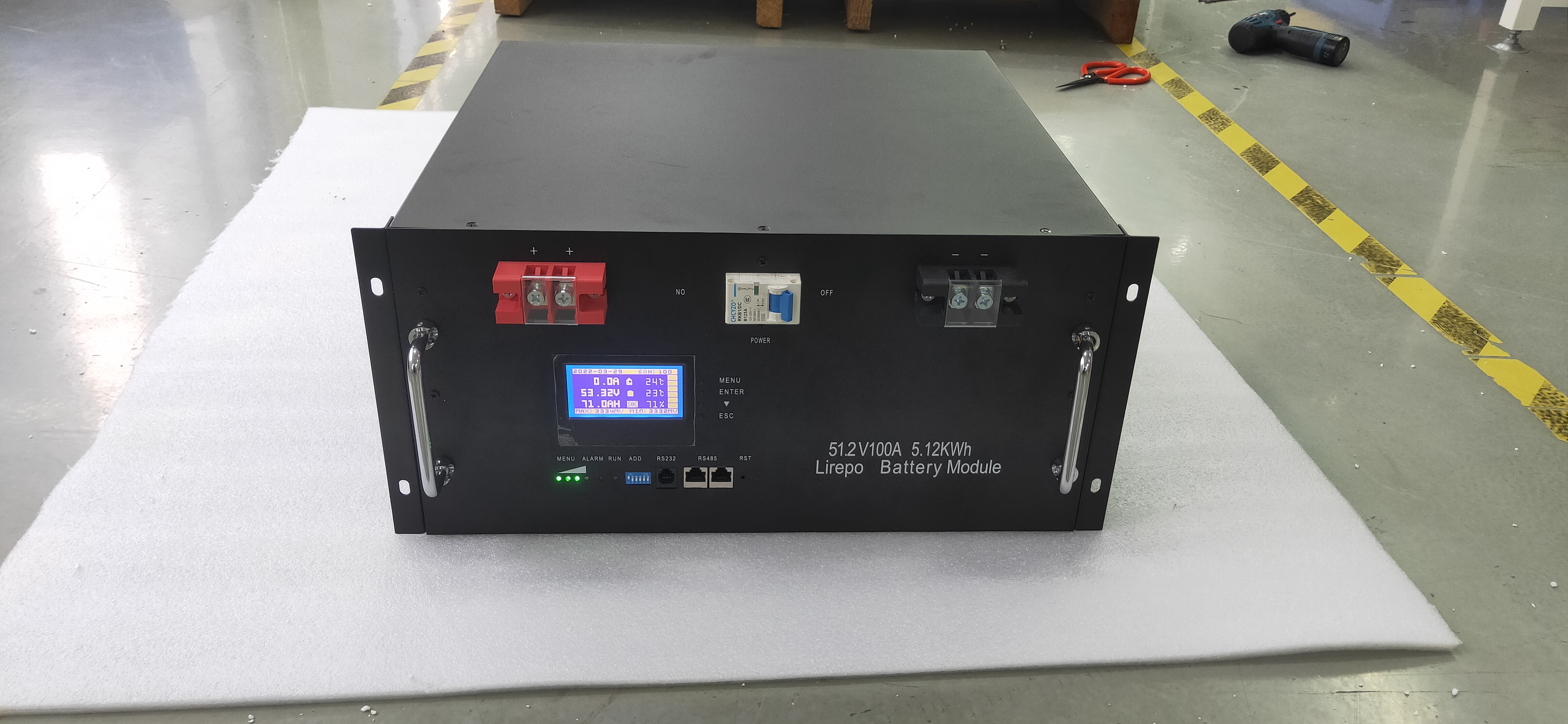

Testings

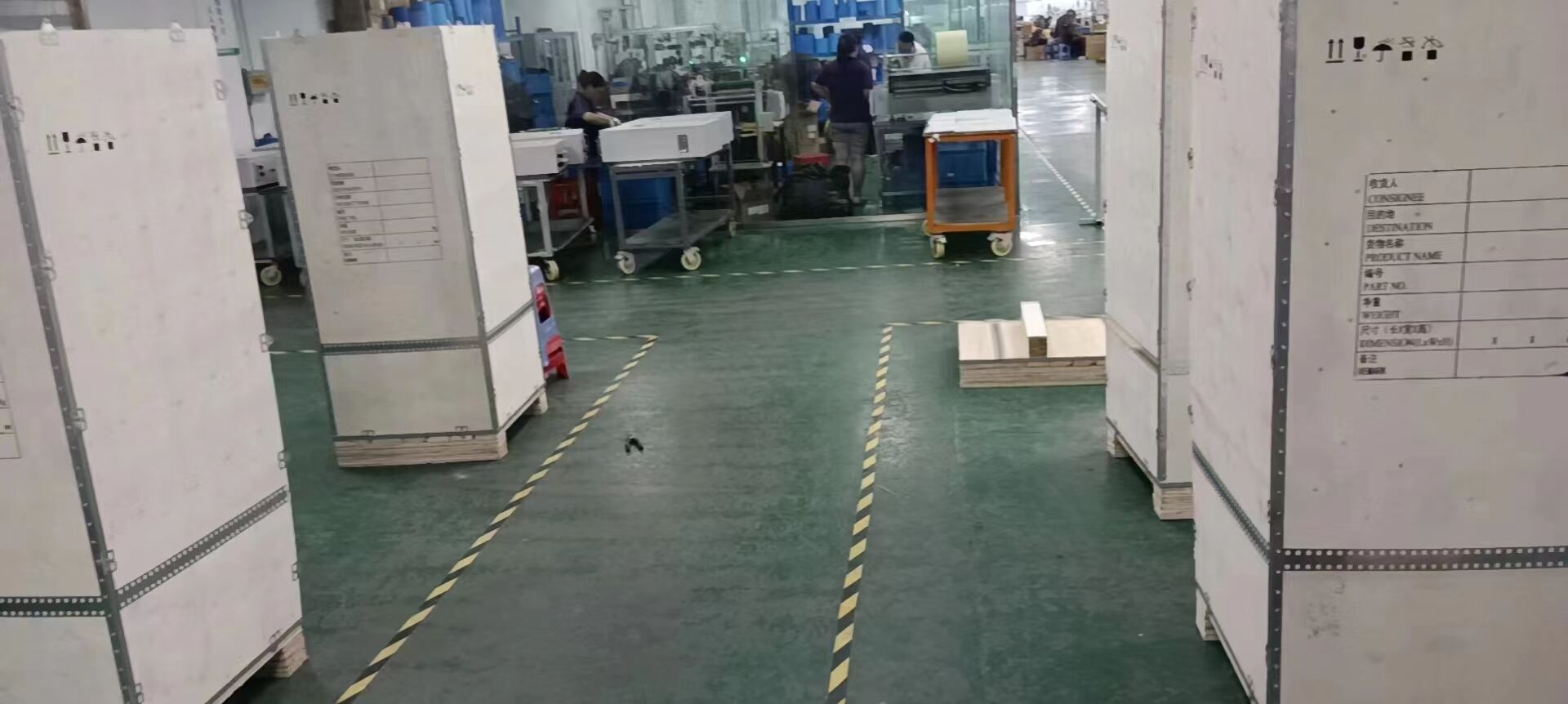

Package
Applications:

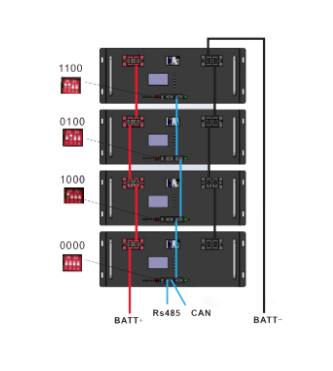

Can parallel the battery packs or put the 48V 100AH packs to make different high voltage or high capacity battery packs.

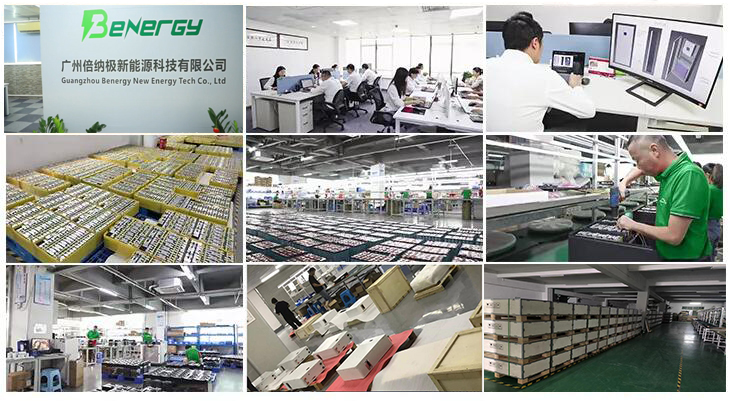

Benergy production lines:
Certifications
Fast delivery, and we welcome OEM work.
Pls feel free to contact us!
