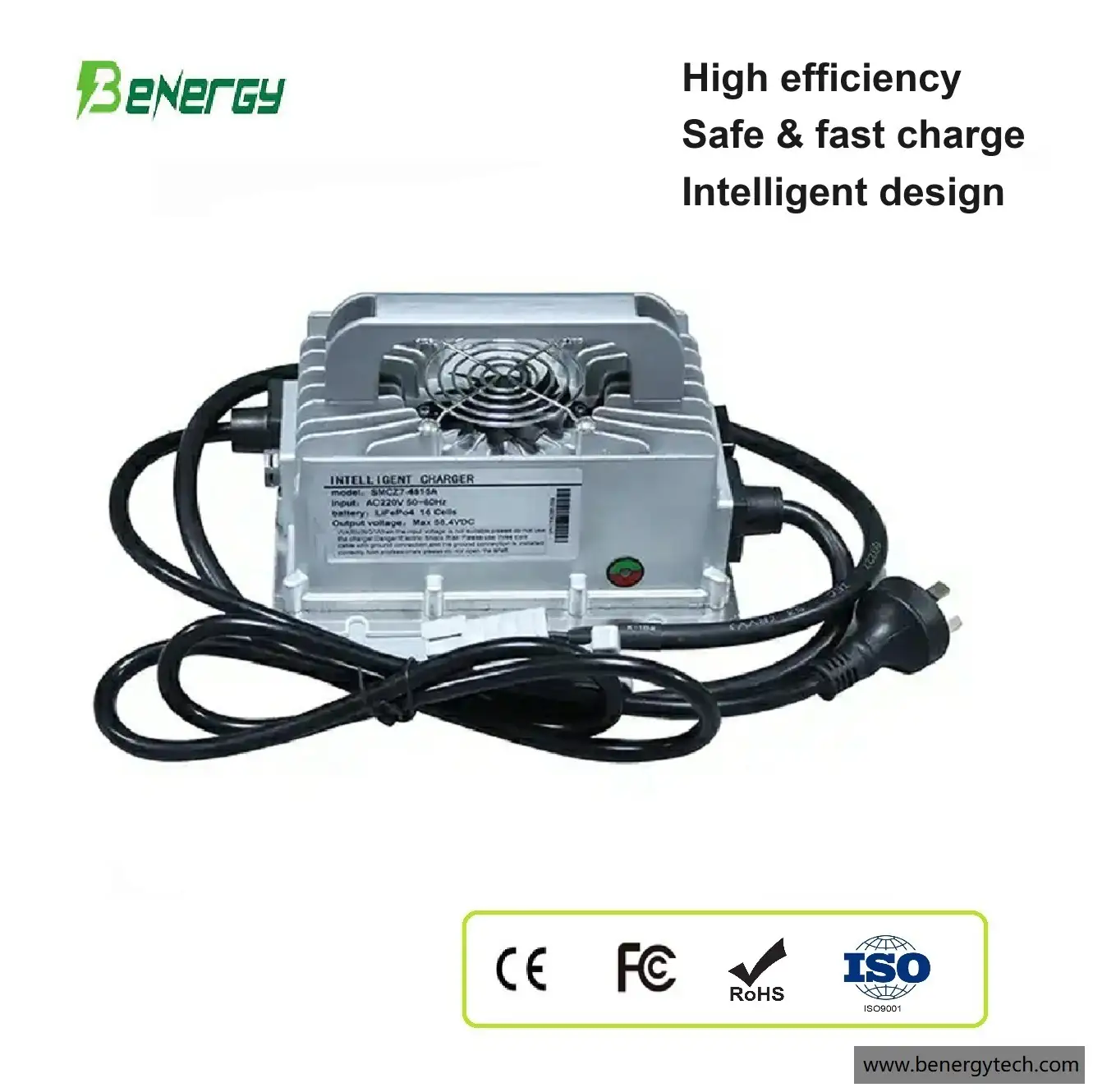

Lithium Battery Charger 24V 30A 25.6V 30A Lifepo4 golf cart battery charger
Features:
1. Long cycle life
2. High Safety
3. Wide temperature range
4. Environmental friendliness
5. IP67
6. With reverse connection / short-ciruit / over heat/ low voltage / over voltage protection
25.6V 30A Charger Parameter Table:
|
Product Type |
Lithium Iron Phosphate Battery Charger |
|
Brand Name |
Benergy |
|
For Battery Pack |
24V (8S) Lifepo4 Battery Packs |
|
Charge Voltage |
25.6V |
|
Charge current |
30A |
|
Size |
282×130×82mm (L,W, H) 11.1*5.75*3.23" |
|
Weight |
2600g±50g 5.73 lbs |
|
Charge Mode |
CC/CV (Continuous current/Continuous Voltage) |
|
Warranty |
1 Year |
|
OEM/ODM |
Yes(Accepted) |
Main product specification
|
Max.output power |
Input voltage |
Output voltage |
Combined regulation |
Output current |
Combined |
|
1500W |
90-264Vac |
25.6V+/-0.2Vdc |
+/-0.2V |
30A |
+/-3A |
Protection function:
- Overheat Protection
When the internal temperature of the charger exceeds 80℃, the charging current will reduce automatically, When it exceeds 85℃ the charger will shutdown for protection. When the temperature drop, the charger automatically resumes to charge.
- Short Circuit Protection
When the output get short-circuited, the charger wil automatically shutdown the output. After trouble shooting, the battery can resume charging.
- Battery Reverse Connection Protection
When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.
- Input low-voltage &Over-voltage Protection
If the input voltage is lower than 90V or higher than 264v, the charger will shut down protectively and automatically resume working when the voltage is normal again.
- Full Automatic Shutdown
Automatically shut down after full charge.
Input characteristic
|
No. |
Item |
Technical specification |
Remark |
|
1 |
Rated input voltage |
230Vac |
|
|
2 |
Input voltage range |
90 ~ 264Vac |
|
|
3 |
AC input voltage frequency |
50～60 Hz |
product display
Detail size
Input connector (selectable)
Output connector (selectable)
Applications
Packages
Certifications
Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.
FAQ
