12V 20A 14.6V 20A Lifepo4 Battery Charger for RV, Boat ,Solar And Power Tools
Benergy Charger is specially for Lithium Ion Battery pack. The working mode of our charger is CC/CV (constant current/constant voltage) mode.
14.6V 20A Charger Parameter Table:
| Product Type | Lithium Iron Phosphate Battery Charger |
| Brand Name | Benergy |
| For Battery Pack | 12V (4S) Lifepo4 Battery Packs |
| Charge Voltage | 14.6V |
| Charge current | 20A |
| Size | 180×90×63mm (L,W, H) |
| Weight | 1.2Kg±50g |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Warranty | 1 Year |
| OEM/ODM | Yes(Accepted) |
Main product specification:
Max.output power | Input voltage | Output voltage | Combined regulation | Output current | Combined regulation |
| 360W | 230Vac | 14.6V+/-0.2Vdc | +/-0.2V | 20A | +/-3A |
Input characteristic:
| No. | Item | Technical specification | Remark |
| 1 | Rated input voltage | 230Vac | 230Vac |
| 2 | Input voltage range | 180 ~ 240Vac | |
| 3 | AC input voltage frequency | 50～60 Hz |
Output characteristic or charge stages
No. | Item | Technical specification | Remark |
| 1 | CC(constant current) | ≤14.6Vdc, 20A | |
| 2 | CV(constant voltage) | 14.6Vdc, 20A↓ | |
| 3 | Float stage | No | 5%CC |
| 4 | Power efficiency | ≥85% | Vin=230Vac,rated load |
Protection characteristics
No. | Item | Technical specification | Remark |
| 1 | Over voltage protection | Yes | |
| 2 | Software over voltage protection | The charger software limits the maximum output voltage to a level suitable for the connected battery system. | |
| 3 | Thermal protection | Yes | |
| 4 | Current limiting protection | Yes | At CC mode |
| 5 | Short circuit protection | Short circuit protection should be automatically recovery after remove the condition. | |
| 6 | Reverse polarity protection | When output wires are reversely connected to the battery the charger will not operate and will work normally when DC wires are correctly connected. |
Charging indicator
| No. | Item | Status | Remark |
| 1 | Power on | LED1: Red | |
| 2 | Charging | LED2: Red | |
| 3 | Fully charged | LED2: Green | |
| 4 | Charging Voltage Display | Yes | |
| 5 | Charging Current Display | Yes |
Safety & EMC
No. | Item | Standard (or test condition) | Remark | |
| 1 | Electric strength test | Input-output | 1500Vac/10mA/1min | No breakdown |
| 2 | Isolation resistance | Input-ground | ≥10Mohm@500Vdc | |
Output-ground | ≥10Mohm@500Vdc | |||
| 3 | Leakage current | ＜3.5mA | Vin=264Vac | |
| 4 | LVD | EN60335-1:2002+EN60335-2-29:2002 | ||

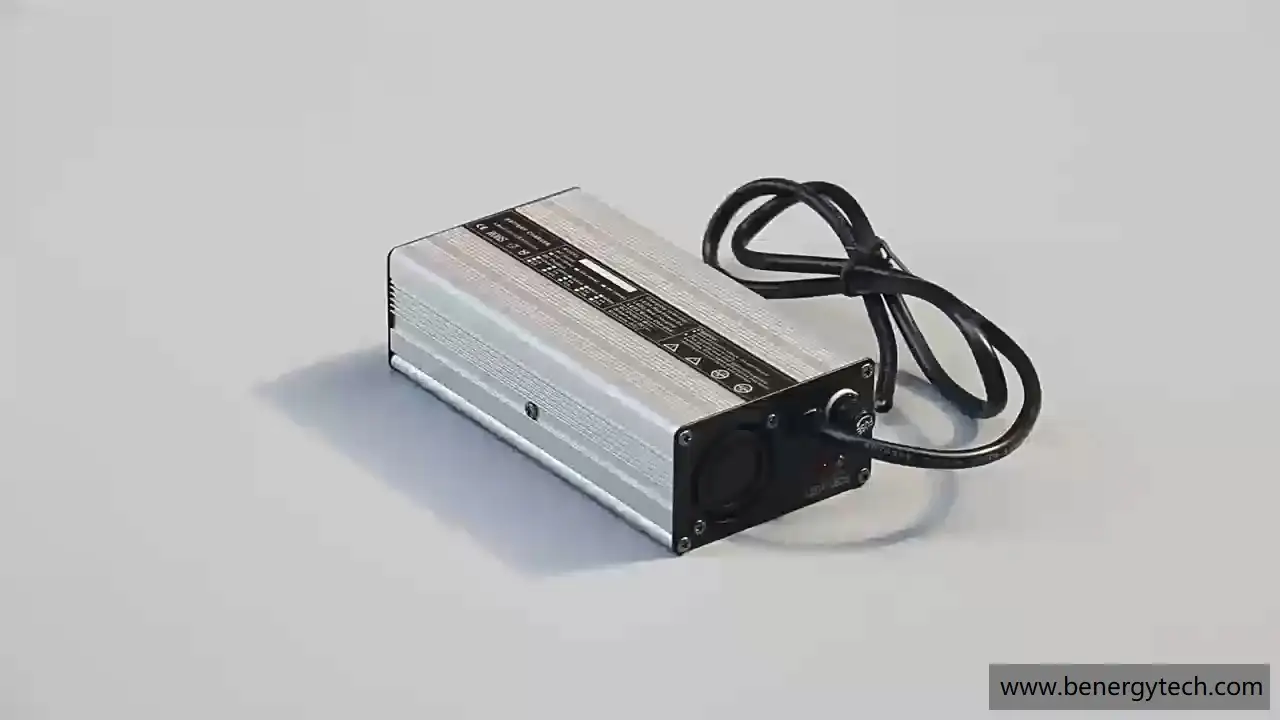

Detail picture:
Input connector (selectable):
Output connector (selectable):
Packages:
FAQ:
Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is delivery time if we place an order?
A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.
Q4: Are your factory or trading company?
A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.
Q5.What is your warranty?
A5:We offer 1 year warranty for all our lithium ion battery chargers.
