Benergy Industrial lithium batteries manufacturer since 2009

Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 1
Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 2
Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 3
Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 4
Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 5
Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 1
Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 2
Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 3
Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 4
Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 5

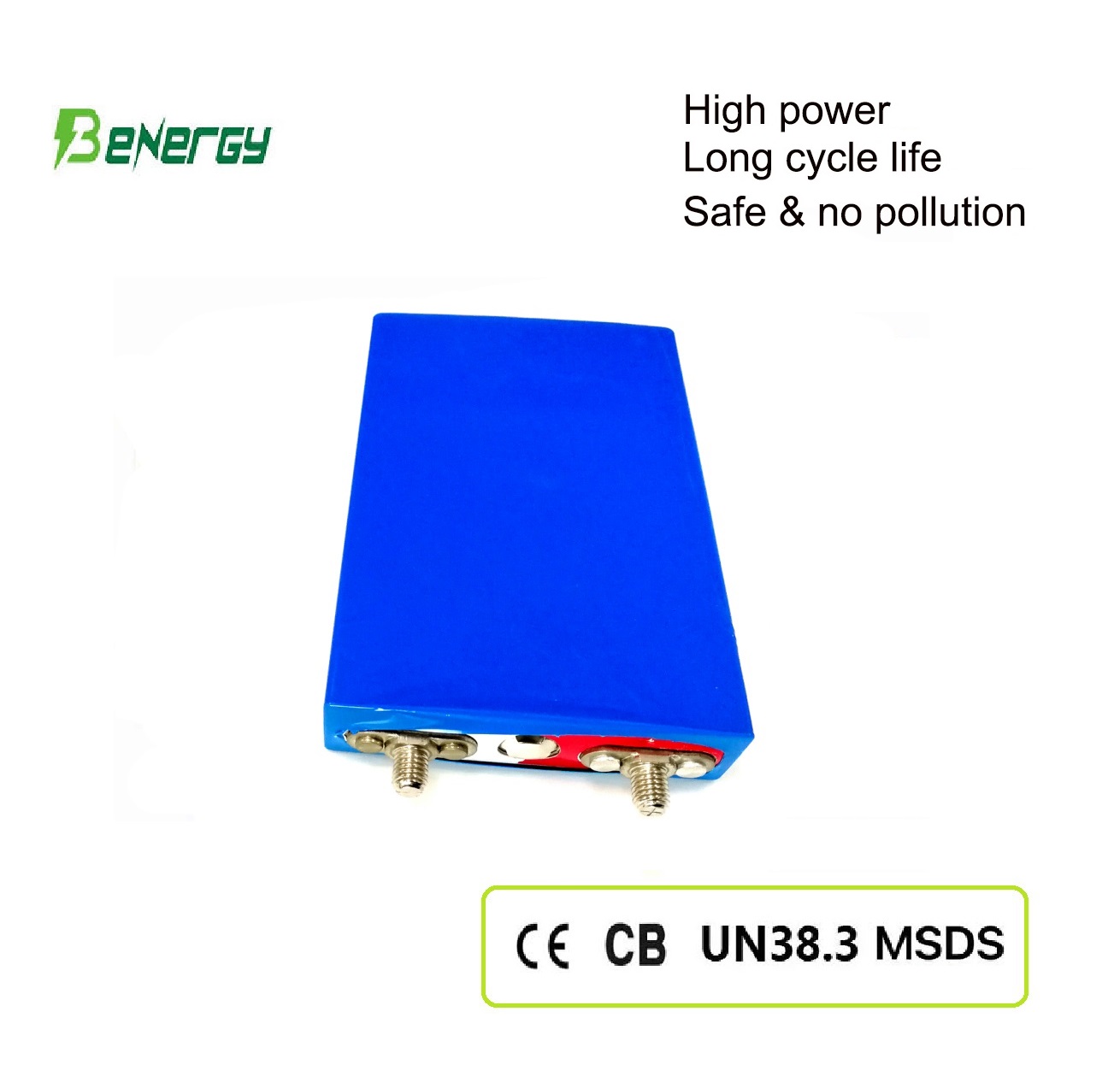

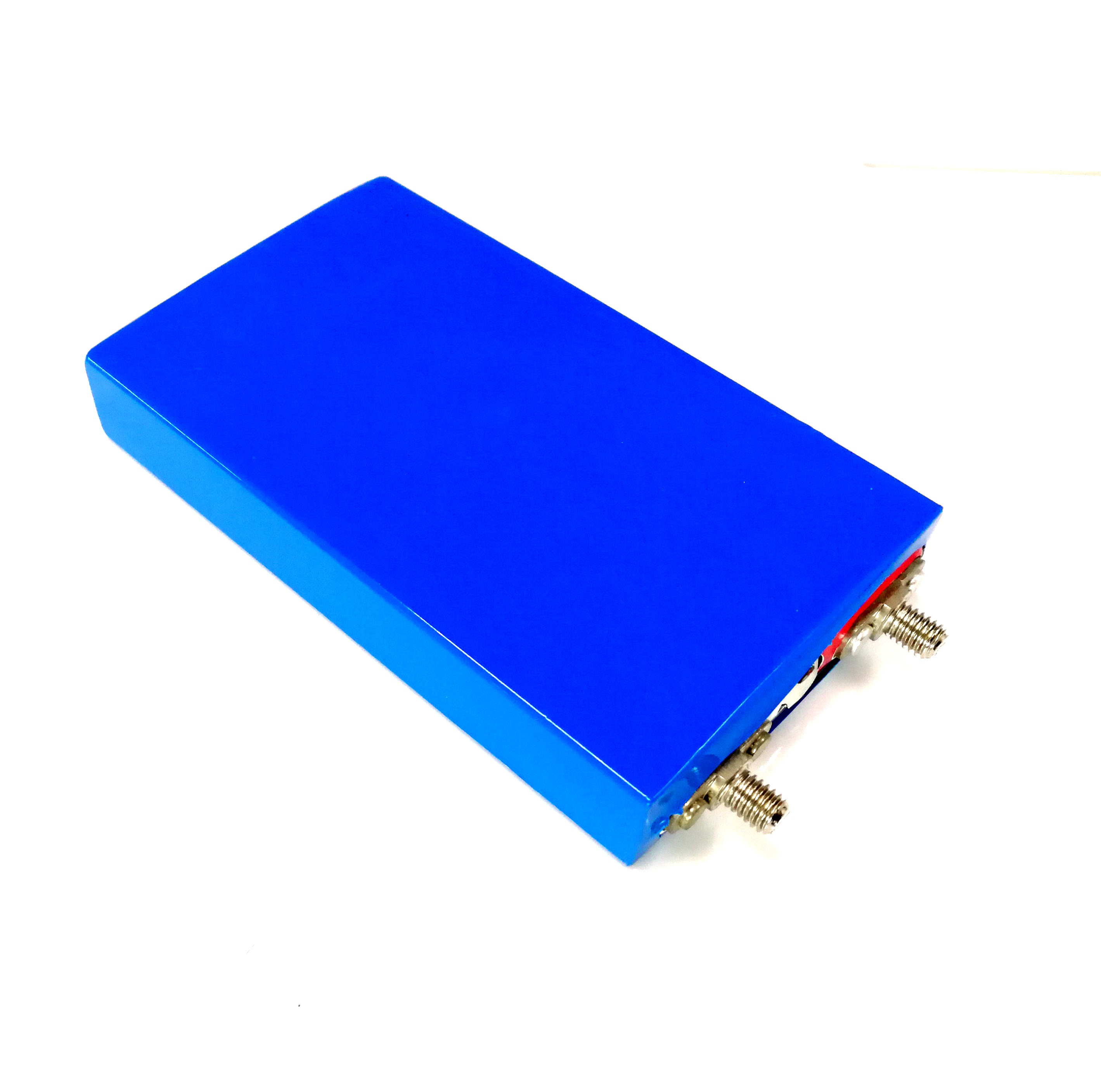

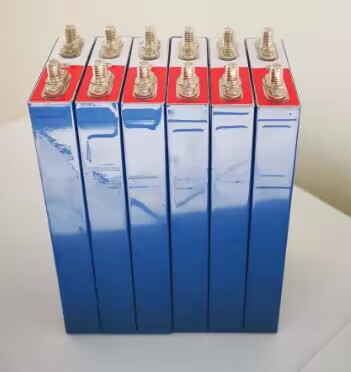

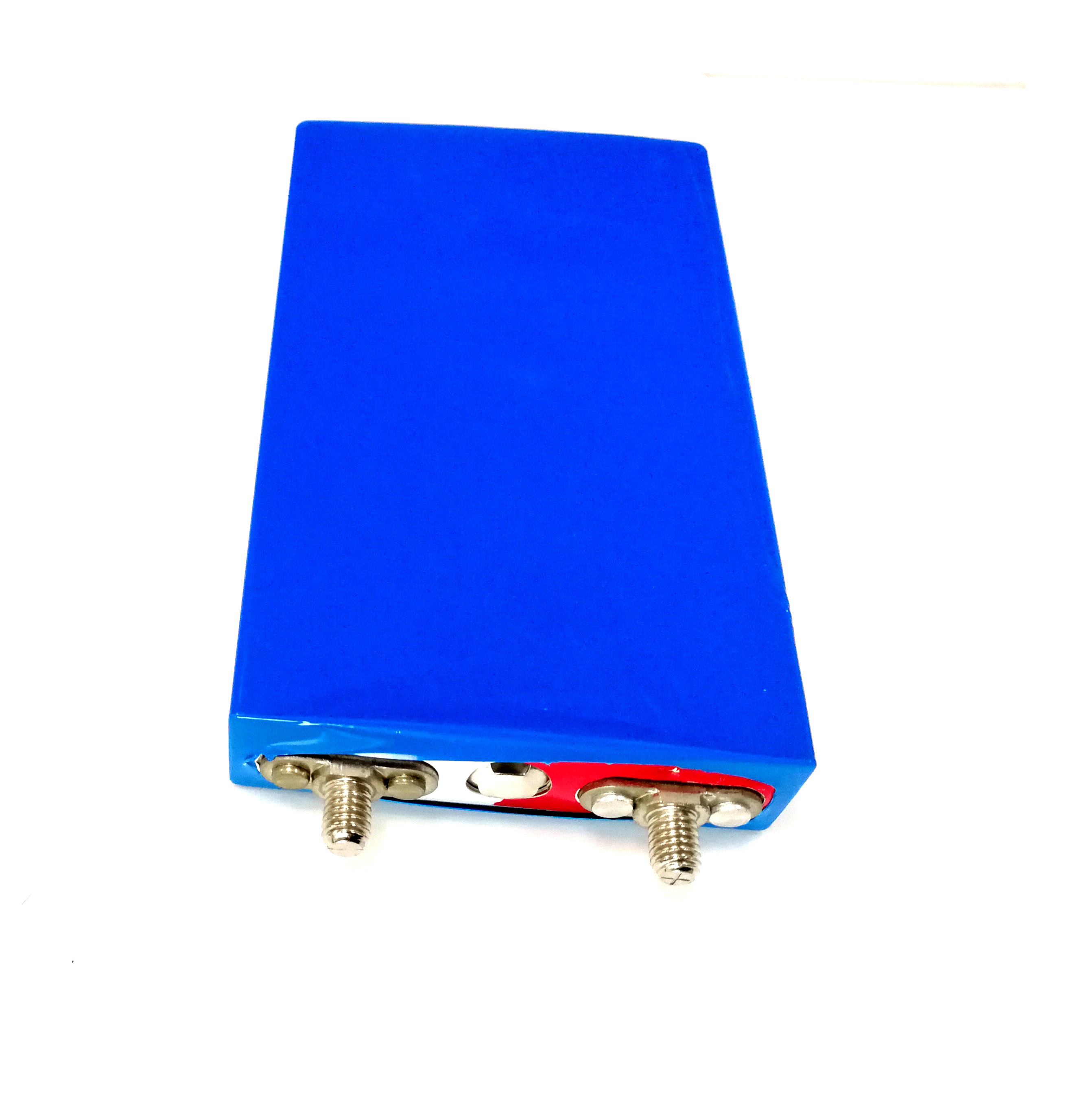

Rechargeable Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery

Features:

Benergy fast charge lifepo4 prismatic cells can bear 4C charge, which make the charging time quite shorter than normal lifepo4 cells. And they are designed as high power discharge rate, can bear 5C continuous discharge and 8C peak discharge. Our cells can be widely used for power tools, vehicles and devices which require fast charge and high rate discharge.

    oops...!

    no product data.

    Go to homepage

    Specification

    Product Type

    Lithium Iron Phosphate Cell

    Shell Type

    Aluminum Shell

    Brand Name

    Benergy

    Voltage

    3.2V

    Nominal Capacity

    13AH

    Minium Capacity

    13AH

    IR

    ≤5mΩ

    Size

    18*65*150mm (W,L,H)
    0.91*2.56*5.9 "  (W,L,H)

    Weight

    330g±150g
    0.728 lb

    Charge Mode

    CC/CV (Continuous current/Continuous Voltage)

    Max Charge Current

    52A (4C)

    Charge Cut Off Voltage

    3.65V±0.05

    Standard Discharge Current

    6.5A (0.5C)

    Max Continuous Discharge Current

    65A (5C)

    Peak Discharge Current @3 sec

    104A (8C)

    Discharge Cut Off Voltage

    2.5V

    Terminals

    M6

    Cycle Life

    >2500 Times (0.5C charge/discharge, 100% DOD)

    Discharge Temperature

    -10~55℃

    Charge Temperature

    0~45℃

    Application

    Electric boat, yacht, marine, EV etc.

    Warranty

    2 Years

    OEM/ODM

    Yes(Accepted)

    Products detail

    Benergy start to produce since 2009.   And it is proved to be the most stable and safest lifepo4 cells after over 10 years marketing proving.

    图片2 (3)
    New produced cell with no PVC
    1 (6)
    Cell Diagram
    QQ图片20230330101257
    QQ图片20230330101257
    Benergy 3
    图片2  (2)
    Discharge curves

    Product advantages

    Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 11
    01
    Long cycle life
    More than 6000 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles).
    Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 12
    02
    High energy density
    1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
    Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 13
    03
    High safety
    No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
    Rechargeable  Lithium Battery 3.2V 13AH Lifepo4 Prismatic Cell 4C Fast Charge Battery 14
    04
    Good charging and discharging performance
    5C continous discharge and 10C burst.
    20AH 3
    05
    Full green and no pollution
    All raw material of the batteries are environmental-friendly.
    20AH2
    06
    Wide working temperature range
    From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.
    第一张图
    07
    Bar Code management system
    All data is managed by system, we can trace the cell information and match every pack with closest data.
    图片1 (3)

    Application

    Benergy lifepo4 prismatic cells can be widely used for electric vehicles, power tools, solar system, energy storage system etc.


    We can use our lifepo4 cells to customize different battery packs for you and provide you the best power solutions.

    Package

    Package by wooden cases

    Certifications

    Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.

    1 CE
    CE
    2 MSDS
    MSDS
    3 IEC 62133
    IEC 62133
    4 ISO 2023
    ISO 2023
    5 Quality (2)
    Quality
    6 UN38
    UN38
    7 (5)
    ROHS
    8 (4)
    China Classification Society
    9 CB
    CB
    10 IEC62619_01
    IEC62619_01
    11 (3)
    EU Brand
    12 DGM transport
    DGM transport
    13 (3)
    CE Certificate
    14 UN38
    UN38
    15 UL 9540A
    UL 9540A
    16 (3)
    Sea Transportation 100Ah

    good comments

    Part of good comments from our customers who ordered batteries from us

    9 (4)
    9 (4)

    Efficient, Reliable Power Solution

    Get the most out of your electric boat, yacht, or marine vehicle with the ultra-stable and long-lasting Rechargeable 3.2V 15AH Lifepo4 Prismatic Cell from Benergy. With its high energy density, compact size, and superior safety features, this lithium iron phosphate cell is the ideal choice for any power application. Backed by a 2-year warranty and certifications including CE, ROHS, and ISO9001, Benergy's lifepo4 prismatic cells are the top choice for environmentally friendly and high-performance power solutions.

    1620183233g0e
    1620183233oxz

    Efficient Power, Rapid Discharge

    This Benergy 3.2V 15AH Lifepo4 Prismatic Cell 4C Fast charge 5C continuous discharge offers a long cycle life, boasting over 6000 times of charge and discharge at 1C with 80% capacity retention after 2500 cycles. It also provides a high energy density, being 1/3 smaller in size and 2/3 lighter in weight than lead acid batteries, while ensuring full environmental friendliness with no pollution. The product's advanced safety features ensure no fire and explosion in overcharge tests, no explosion or fire in the event of collision, overcharging, or short circuits, with a wide working temperature range from -20℃ to 60℃.

    Efficient High-Power Battery Technology

    The Benergy 3.2V 15AH Lifepo4 Prismatic Cell features an aluminum shell and has a nominal capacity of 15AH with a voltage of 3.2V. It can be charged with a maximum current of 60A (4C) and has a maximum continuous discharge current of 60A (5C). With a long cycle life of more than 2500 times and a wide working temperature range from -20℃ to 60℃, this cell is proven to be the most stable and safest lifepo4 cells. It is ideal for applications such as electric boats, yachts, marine, and electric vehicles among others.


    ◎ High Performance

    ◎ Long Cycle Life

    ◎ Reliable Certification

    16201832330io
    1620183233rje

    Efficient, Fast, Reliable, Long-lasting

    This rechargeable 3.2V 15AH Lifepo4 prismatic cell offers a 4C fast charge and 5C continuous discharge, making it a highly efficient power source for various applications. The advanced technology used in its creation ensures a longer lifespan and superior performance compared to traditional lithium-ion batteries. Its lightweight and compact design make it easy to integrate into different devices, making it an ideal choice for those seeking reliable power solutions.

    Material introduction

    The Benergy Lifepo4 Prismatic Cell is constructed from a durable aluminum shell, providing stability and safety in various applications such as electric boats, yachts, marine, and EVs. Benergy's 15AH cell features a high energy density, 1/3 the size, and 2/3 lighter in weight than lead-acid batteries, making it a more efficient and environmentally friendly power source. With a wide working temperature range, long cycle life, and a bar code management system for traceability, Benergy's Lifepo4 Prismatic Cell is a reliable and versatile energy solution for a variety of needs.


    ◎ Rechargeable 3.2V 15AH Lifepo4 Prismatic Cell

    ◎ 4C Fast charge

    ◎ 5C Continuous discharge

    1620183233lpr

    FAQ

    1
    What is the voltage of the Rechargeable 3.2V 15AH Lifepo4 Prismatic Cell?
    The voltage of the cell is 3.2V.
    2
    What is the capacity of the Rechargeable 3.2V 15AH Lifepo4 Prismatic Cell?
    The capacity of the cell is 15AH.
    3
    What does 4C Fast charge mean?
    4C Fast charge means the cell can be charged at a rate that is four times its capacity.
    4
    What does 5C continuous discharge mean?
    5C continuous discharge means the cell can provide a continuous discharge at a rate that is five times its capacity.
    5
    What are the typical applications for the Rechargeable 3.2V 15AH Lifepo4 Prismatic Cell?
    This cell is commonly used in electric vehicles, solar energy storage systems, and portable electronic devices.
    6
    Is the Rechargeable 3.2V 15AH Lifepo4 Prismatic Cell suitable for high power applications?
    Yes, the cell's fast charging and continuous discharge capabilities make it suitable for high power applications such as electric vehicles and power tools.
