Features:

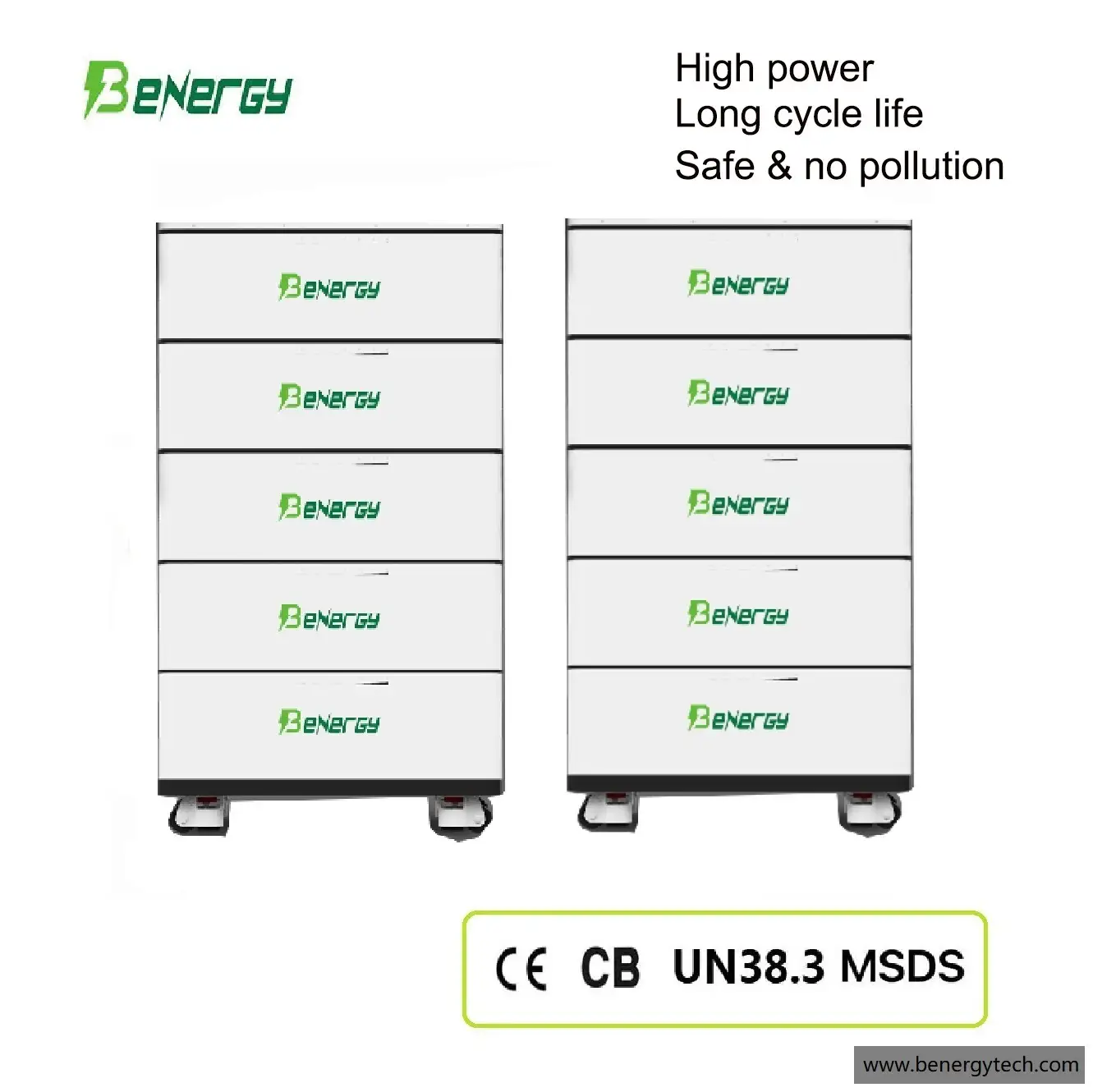

Benergy 48V 800AH Lithium battery packs utilizes high quality Lifepo4 cells for consistent power, fast charging efficiency, long cycle life and zero pollution. Stackable design. Can parallel to increase the capacity, like 8pcs to make 40KWH. They are widely used for on grid solar system, off grid solar system, household solar system, UPS etc.
Specification
Specification |
|
Rated voltage |
51.2V |
Rated capacity |
800AH |
Continuous discharge current |
100A |
Max peak discharge current |
110A/10S |
Standard charge current |
50A |
Fast charge current |
100A |
Can parallel number |
2~15 |
Optional capacity range |
10.24~76.8KWH |
Cooling way |
Natural cooling |
Battery type |
Lifepo4 battery |
Designed lifespan |
>15 years @25℃ |
Cycle life |
≈10000 Times |
Rated grid frequency |
50HZ/60HZ |
Grid voltage range |
230V(170Vac~280Vac) ±2% |
Photovoltaic maximum input power |
4200W |
MPPT voltage range |
60-115Vdc |
Charging and discharging efficiency of the whole system |
>92% |
Battery voltage range |
40.0Vdc~60Vdc ± 0.6Vdc (Undervoltage alarm/ |
Warranty |
Battery pack(10 years) |
Certification |
|
Battery certification |
CE, UN38.3, MSDS,ROHS |
Cell certification |
CE, UL, IEC62109, IEC62477, EN61000, UN38.3 |
Mechanical parameters |
|
Inverter size/weight |
602*403*139mm/15KG |
Battery size/weight |
602*403*200mm/55KG(single layer) |
Chassis size / weight |
602*403*82mm/6KG |
Environmental parameters |
|
Storage humidity range |
≤85%RH |
Running temperature range |
20℃~55℃ |
Recommended running temperature |
25℃ |
IP range |
IP21 |
product description
Application
Customers Choose Our Batteries For Their Applications
40KWH for household solar system.
Certifications
Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.
