BFB-HS06
Benergy
Battery Pack 51.2V 200AH parameter:
| Product Type | LiFePO4 Battery |
| Brand Name | Benergy |
| Voltage | 51.2V |
| Nominal Capacity | 200AH |
| Minium Capacity | 200AH |
| Pack way | 16S1P |
| Size | 660(L)*465(W)*255(H) |
| Weight | 84Kg±150g |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Max Charge Current | 100A (Adjustable) |
| Charge Cut Off Voltage | 58.4V±0.05 |
| Standard Discharge Current | 25A |
| Max continuous discharge current | 50A(Adjustable) |
| Peak Discharge Current @3 sec | 100A(Adjustable) |
| Discharge Cut Off Voltage | 40V |
| Terminal | silver plating terminal |
| Cycle Life | >2500 Times (0.5C charge/discharge, 100% DOD) |
| Discharge Temperature | -10～55℃ |
| Charge Temperature | 0～45℃ |
| Communication | RS485/RS232/CAN BUS (Optional) |
| Warranty | 3 Years |
| IP range | IP20 |
| Indicator | With LCD indicator |
| OEM/ODM | Yes(Accepted) |

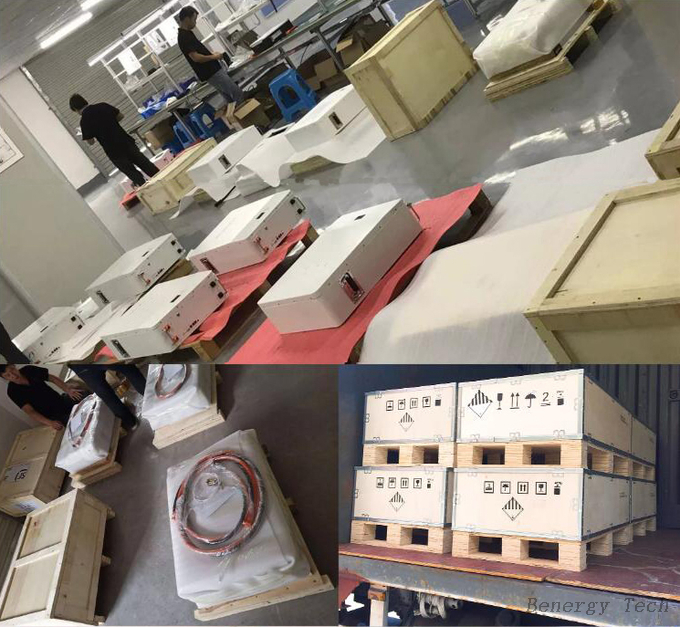

Battery pictures :

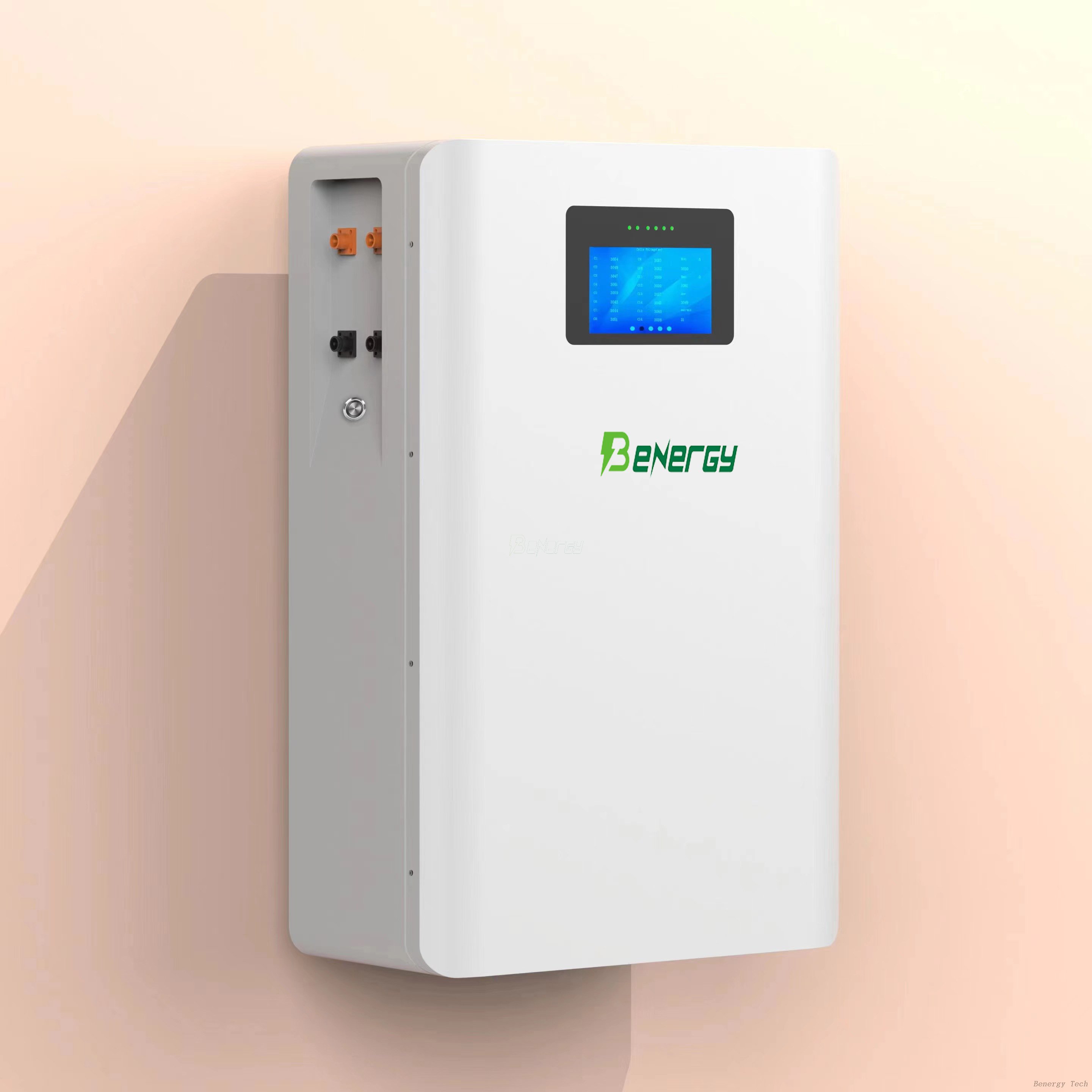

1. The Benergy Lifepo4 battery in wall mounted design offers easy and convenient connectivity and installation.
2. It boasts a high discharge rate and minimal self-discharge.
3. This battery pack finds extensive application in household solar systems, off-grid solar systems, and energy storage systems.
4. Equipped with a Battery Management System (BMS), it ensures the protection of your battery pack, while an LCD screen displays its current condition.
5. It supports various communication modes such as CAN BUS, RS485, and RS232.

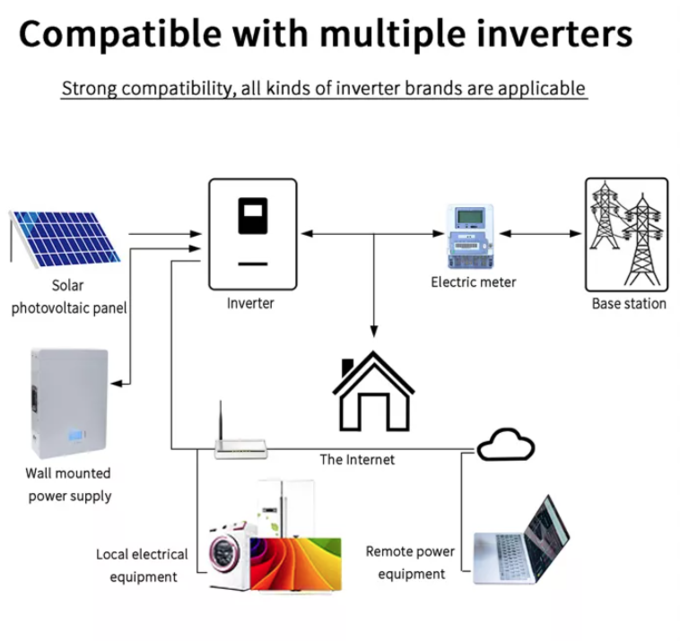

6. It can be seamlessly paired with a range of inverters.
For different solar system, both outdoor and indoor.
Can match with different inverter, like Growatt, Srine, SERMATEC, FoxESS, Victron, SMA, SOFAR, Deye,GOODWE etc
:
Shipping
Benergy can arrange shipping for you. Shipping way can be by sea, by air,by UPS/DHL/Fedex delivery to your door.
Remarks:
1. Our warranty covers 2-5 years and we will replace any products with quality issues.
2. We guarantee a response within 24 hours for any inquiries about our products or prices.
3. We will closely monitor the shipping progress to ensure that buyers receive their goods on time and safely.
4. We prioritize the protection of your sales area, design ideas, and all confidential information.
5. Whether it's a large order or a small sample order, we always provide the highest quality and best service.
6. We have the capability to customize battery packs according to your specifications and offer OEM services. We warmly invite you to visit us and collaborate for a successful business future.
We pride ourselves on our excellent customer service - contact us and see for yourself.
