51.2V 100AH Lithium Battery Pack Parameter Table:
Product Type | Lithium Iron Phosphate Battery |
Brand Name | Benergy |
Voltage | 51.2V |
Nominal Capacity | 100AH |
Minium Capacity | 100AH |
Pack way | 16S1P |
Size | 400(L)*170(W)*580(H) 15.75*6.69*22.83" |
Weight | 48Kg±150g 105.82 lbs |
Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
Max Charge Current | 100A (Adjustable) |
Charge Cut Off Voltage | 58.4V±0.05 |
Standard Discharge Current | 25A |
Max continuous discharge current | 50A(Adjustable) |
Peak Discharge Current @3 sec | 100A(Adjustable) |
Discharge Cut Off Voltage | 40V |
Terminal | silver plating terminal |
Cycle Life | >2500 Times (0.5C charge/discharge, 100% DOD) |
Discharge Temperature | -10~55℃ |
Charge Temperature | 0~45℃ |
Communication | RS485/RS232/CAN BUS (Optional) |
Warranty | 3 Years |
IP range | IP20 |
Indicator | With LCD indicator |
OEM/ODM | Yes(Accepted) |

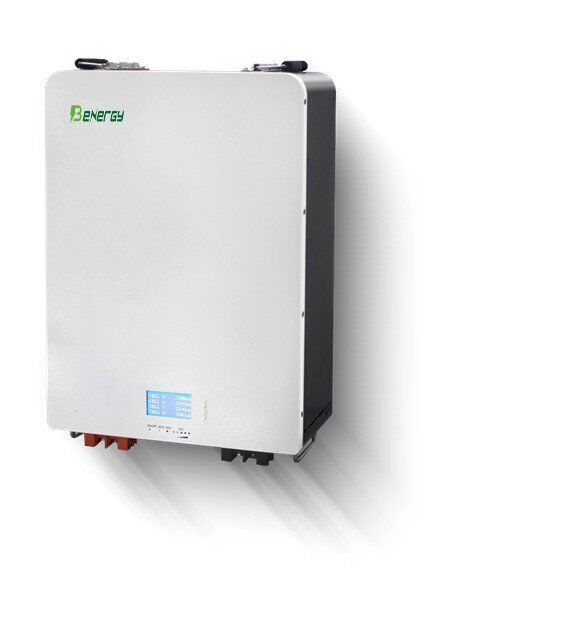

Battery pack picture :
1. Environmentaly friendly, 100% green energy
2. Long cycle life of more than 10 years design
3. No memory effect & low self discharge
4. Capacity, resistance, Voltage, platform time consistency is good
5. With short-circuit production function, safe and reliable
6. Factory price & High quality
7. Light weight, small size, can replace lead acid battery, Ni-MH,Ni-CD batteries.
8. We can customize into pack according to your requirement.
