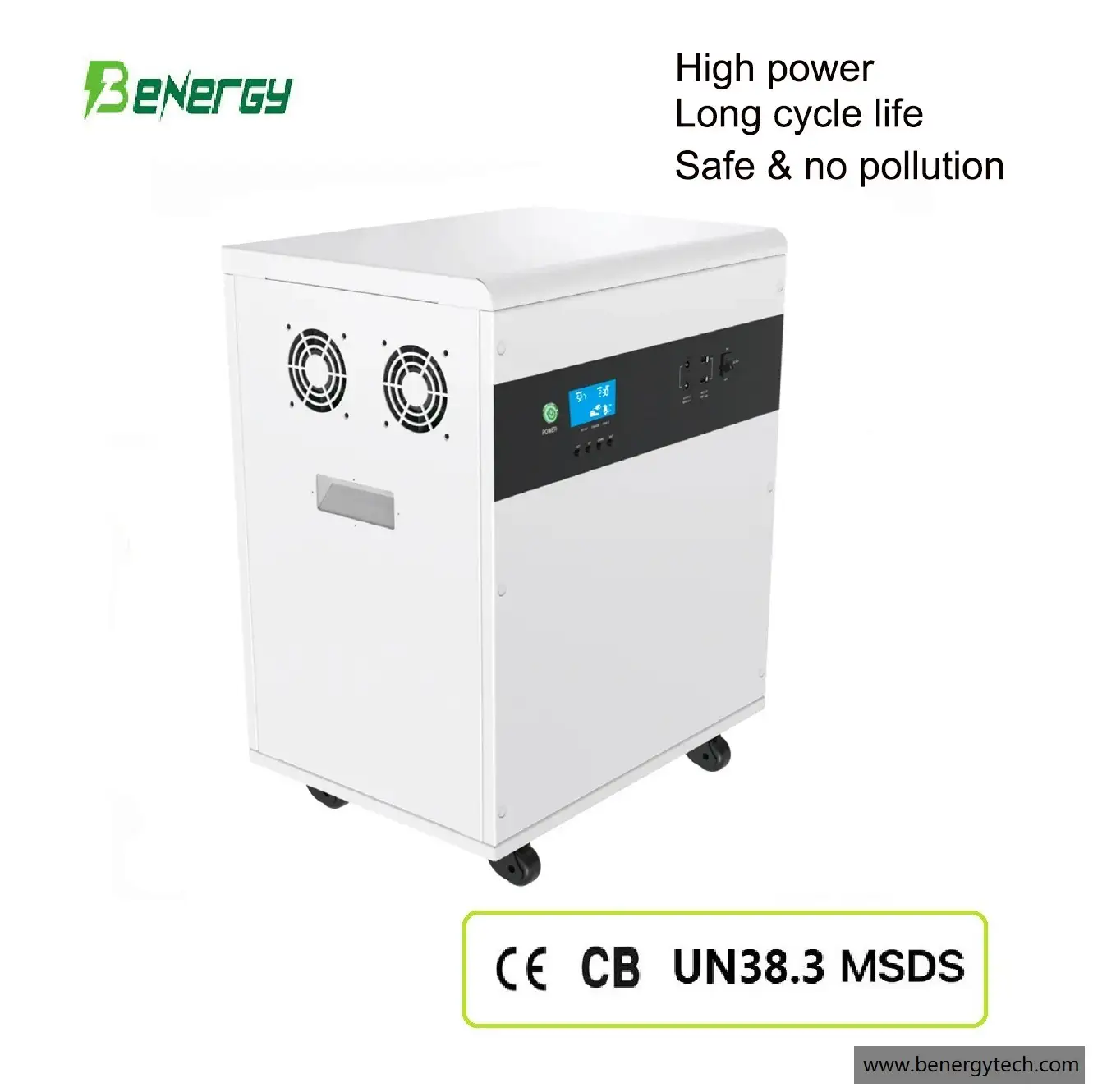

Lithium Ion Battery Off Grid All In One Energy Storage Sytem AC 2KW Inverter 2.56KWH Battery 25.6V 100AH
2.56kwh All in One 25.6V 24V 2100Ah Lifepo4 Battery Energy Storage System
Benergy BWB-242100AH 2.56KW battery system is a kind of new hybrid photovoltaic energy system that combines solar energy storage, city charge, and AC sine wave output into one system. It adopts the DSP control technology. Through advanced control algorithm, it has the characteristics of high response speed, high reliability and high industrialization standard. There are 4 charge modes available: solar power only, city power priority, solar power priority and mains solar power; Inverter and mains power can be selected to meet different application requirements.
Specifications:
| AC Parameters | |||
| Rated input power | 2KW | 2KW | 3.5KW |
| Input voltage | AC220V | AC220V | AC120V |
| Input frequency | 50Hz/60Hz (Automatic adaptation) | 50Hz/60Hz (Automatic adaptation) | 50Hz/60Hz (Automatic adaptation) |
| Rated output power | 2KW | 2KW | 3.5KW |
| Maximum output power | 4000VA | 4000VA | 6000VA |
| Output voltage | 3*AC220V | 3*AC220V | 3*AC120V |
| Waveform | Pure sine wave | Pure sine wave | Pure sine wave |
| MPPT Parameters | |||
| Output power | 1400W | 1400W | 4200W |
| PV operating voltage range | 30-100Vdc | 30-100Vdc | 60-145Vdc |
| MPPT voltage range | 30-85Vdc | 30-85Vdc | 60-115Vdc |
| Solar charging current | 0-60A | 0-60A | 0-80A |
| Battery Parameters | |||
| Rated capacity | 100Ah | 200Ah | 100Ah |
| Rated voltage | 25.6V | 25.6V | 51.2V |
| Energy | 2.56KWH | 5.12KWH | 5.12KWH |
| Working voltage range | 20~29.2V | 20~29.2V | 40~58.4V |
| Battery type | Lithium iron phosphate CAN/RS485 | Lithium iron phosphate CAN/RS485 | Lithium iron phosphate CAN/RS485 |
| Communication interface | 100A | 100A | 100A |
| Continuous charging current | 100A | 100A | 100A |
| Continuous discharge current | 110A | 110A | 110A |
| Weight | 110A | 110A | 110A |
| Dimention(L*W*H) | 41KG 455*332*448MM | 64KG 455*332*580MM | 71.5KG 496*357*595MM |
| Other Parameters | |||
| USB output | 2*5V2A | 2*5V2A | 2*5V2A |
| 12VDC output | 2*12V3A | 2*12V3A | 2*12V3A |
| Cooling method | Natural cooling | Natural cooling | Natural cooling |
| IP | IP40 | IP40 | IP40 |
Product characteristic
Adopt full digital voltage and current double closed loop control, advanced SPWM technology, and output pure sine wave
It has two output modes of AC bypass and inverter output, and has the function of uninterrupted power supply.
There are 4 modes selectable: Solar power only, city power priority, solar power priority and hybrid charge.
LCD screen indication, dynamic display of system and operation status.
Has power saving mode to reduce no-load loss.
Intelligent adjustable speed fan is used to dissipate heat efficiently and prolong the service lifepo4 of the system.
Has multiple protection functions and 360 ° all-round protection.
Has complete short circuit protection, overvoltage and undervoltage protection, overload protection, reverse irrigation protection, etc.

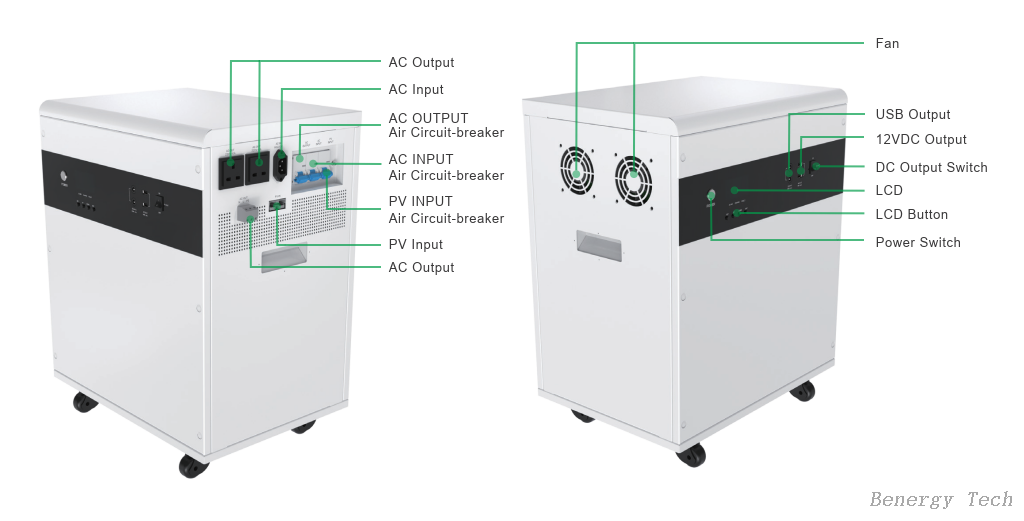

Details:
Package

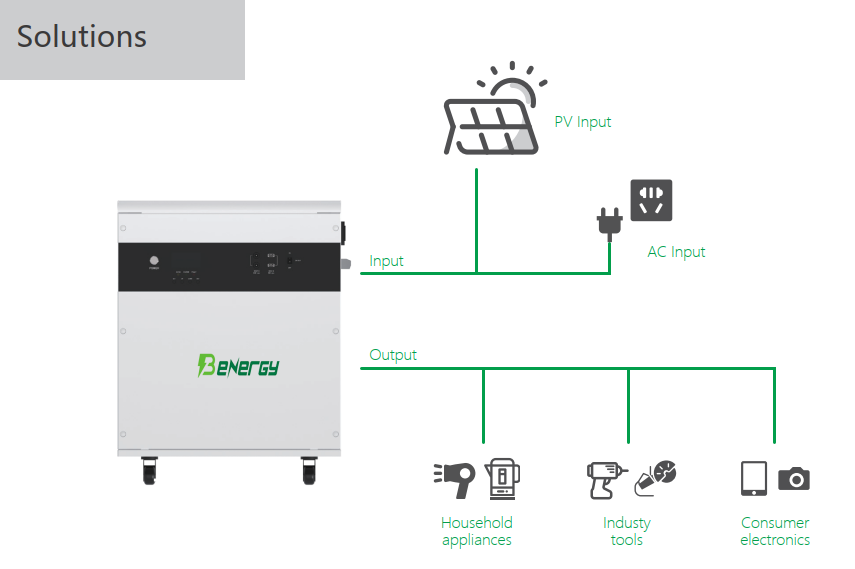

Applications:
Benergy 48V lithium Iron Phoshpate battery packs can be widely used for solar system,household system, energy storage system, UPS etc.
Advantage of LiFePO4
Lithium iron phosphate batteries (LiFePO4 or LFP) offer lots of benefits compared to lead-acid batteries and other lithium batteries. Longer life span, no maintenance, extremely safe, lightweight, improved discharge and charge efficiency, just to name a few. LiFePO4 batteries are not the cheapest in the market, but due to a long life span and zero maintenance,which means that you don't need to replace in a long time,you can enjoy the convenience, it’s the best investment you can make over time.
Why choose Benergy 48V Lifepo4 battery pack?
The Benergy 48V 60Ah is a Lithium Iron Phosphate battery (LiFePO4) with a rated capacity of 60Ah. The unique combination of state-of-the art technology and smart software makes this lithium battery a robust, safe and easy to use energy storage solution. Compared to conventional lead-acid batteries, the Benergy 48V 60Ah lithium battery offers an enormous weight and space saving. It is very efficient, has extremely high performances and is maintenance free.
Certifications
We pride ourselves on our excellent customer service - contact us and see for yourself.
Benergy Tech Co., Ltd
Kevin Zhang
What's app: +86-135 8045 2443
