All In One system 2.56KWH Lithium Ion Battery for Off Grid Solar Energy Storage System

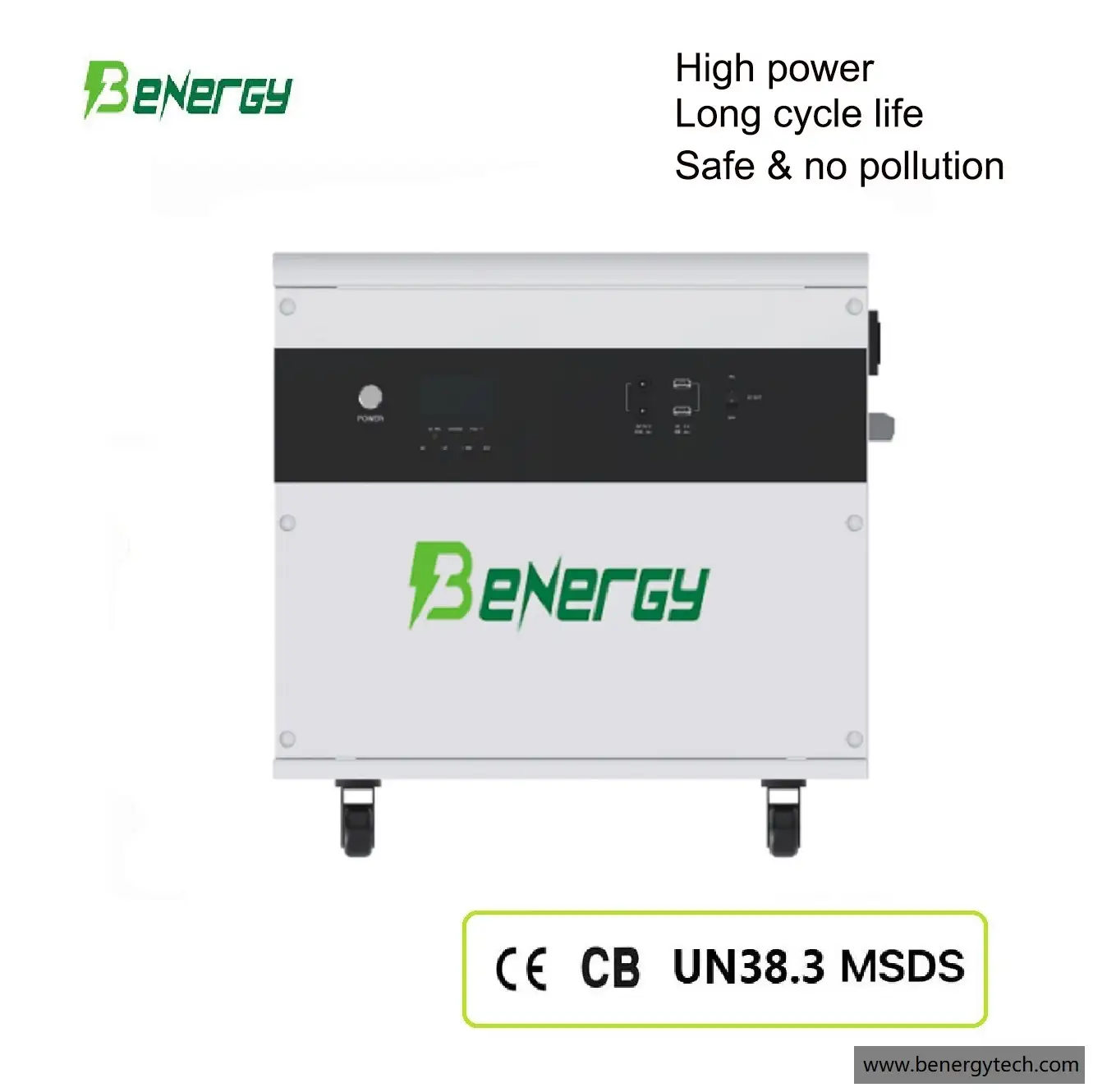

Benergy BWB-24200AH 2.56KWH (5KW) battery system is a kind of new hybrid photovoltaic energy system that combines solar energy storage, city charge, and AC sine wave output into one system. There is a battery pack 2.56KWH (Lifepo4 battery pack 25.6V 100AH) and an inverter of 2KW.
Customer can use it as portable inverter power station at home or outdoor.
Specifications:
| AC Parameters | |||
| Rated input power | 2KW | 2KW | 3.5KW |
| Input voltage | AC220V | AC220V | AC120V |
| Input frequency | 50Hz/60Hz (Automatic adaptation) | 50Hz/60Hz (Automatic adaptation) | 50Hz/60Hz (Automatic adaptation) |
| Rated output power | 2KW | 2KW | 3.5KW |
| Maximum output power | 4000VA | 4000VA | 6000VA |
| Output voltage | 3*AC220V | 3*AC220V | 3*AC120V |
| Waveform | Pure sine wave | Pure sine wave | Pure sine wave |
| MPPT Parameters | |||
| Output power | 1400W | 1400W | 4200W |
| PV operating voltage range | 30-100Vdc | 30-100Vdc | 60-145Vdc |
| MPPT voltage range | 30-85Vdc | 30-85Vdc | 60-115Vdc |
| Solar charging current | 0-60A | 0-60A | 0-80A |
| Battery Parameters | |||
| Rated capacity | 100Ah | 200Ah | 100Ah |
| Rated voltage | 25.6V | 25.6V | 51.2V |
| Energy | 2.56KWH | 5.12KWH | 5.12KWH |
| Working voltage range | 20~29.2V | 20~29.2V | 40~58.4V |
| Battery type | Lithium iron phosphate CAN/RS485 | Lithium iron phosphate CAN/RS485 | Lithium iron phosphate CAN/RS485 |
| Communication interface | 100A | 100A | 100A |
| Continuous charging current | 100A | 100A | 100A |
| Continuous discharge current | 110A | 110A | 110A |
| Weight | 110A | 110A | 110A |
| Dimention(L*W*H) | 41KG 455*332*448MM | 64KG 455*332*580MM | 71.5KG 496*357*595MM |
| Other Parameters | |||
| USB output | 2*5V2A | 2*5V2A | 2*5V2A |
| 12VDC output | 2*12V3A | 2*12V3A | 2*12V3A |
| Cooling method | Natural cooling | Natural cooling | Natural cooling |
| IP | IP40 | IP40 | IP40 |
Product characteristic
With advanced BMS to show battery pack condition timely.
Battery with inverter in a whole system, save more space for you.
Plug in design, very convinient for customer to use.
LCD screen indication, dynamic display of system and operation status.
With USB connector can charge phone, electronic products.
Intelligent adjustable speed fan is used to dissipate heat efficiently and prolong the service lifepo4 of the system.
Can charge with solar panels timely.
Has complete short circuit protection, overvoltage and undervoltage protection, overload protection, reverse irrigation protection, etc.
Details:
Applications:
After fully charged, the 2.56KWH system can support laptop, phone, fan, refrigerator. Below is the detail time it can support after fully charged.
Our battery pack production lines
Benergy make the battery pack professionally, including the below steps:
Cell selection: Choose LiFePO4 prismatic cells that meet the requirements of your application, such as voltage, capacity, and discharge rate. Make sure to also consider the physical dimensions of the cells and the pack design.
Cell preparation: Before assembling the cells into a pack, it is important to ensure that all cells have the same state of charge and to balance the cells' voltages. This can be done by charging and discharging each cell individually or using a battery management system (BMS) that can balance the cells automatically.
Pack design: Determine the configuration of the pack, such as the number of cells in series and parallel, based on the voltage and capacity requirements of your application. Consider the physical dimensions of the cells and how they will fit together in the pack.
Assembly: Once you have selected the cells, prepared them and designed the pack, it's time to assemble the battery pack. This involves connecting the cells in series and parallel, using bus bars or other connectors, and securing them within the pack.
Testing: After assembling the pack, it's important to test it to ensure that it meets the performance requirements and is safe to use. This includes testing the voltage, capacity, and discharge rate of the pack, as well as checking for any abnormal heating or voltage imbalances.
Package
Certifications
Experience the personalized service and attention to detail that sets us apart - contact us today.
sales@benergytech.com
what's app: +86-135 8045 2443
