BWB-48100AHB
Benergy

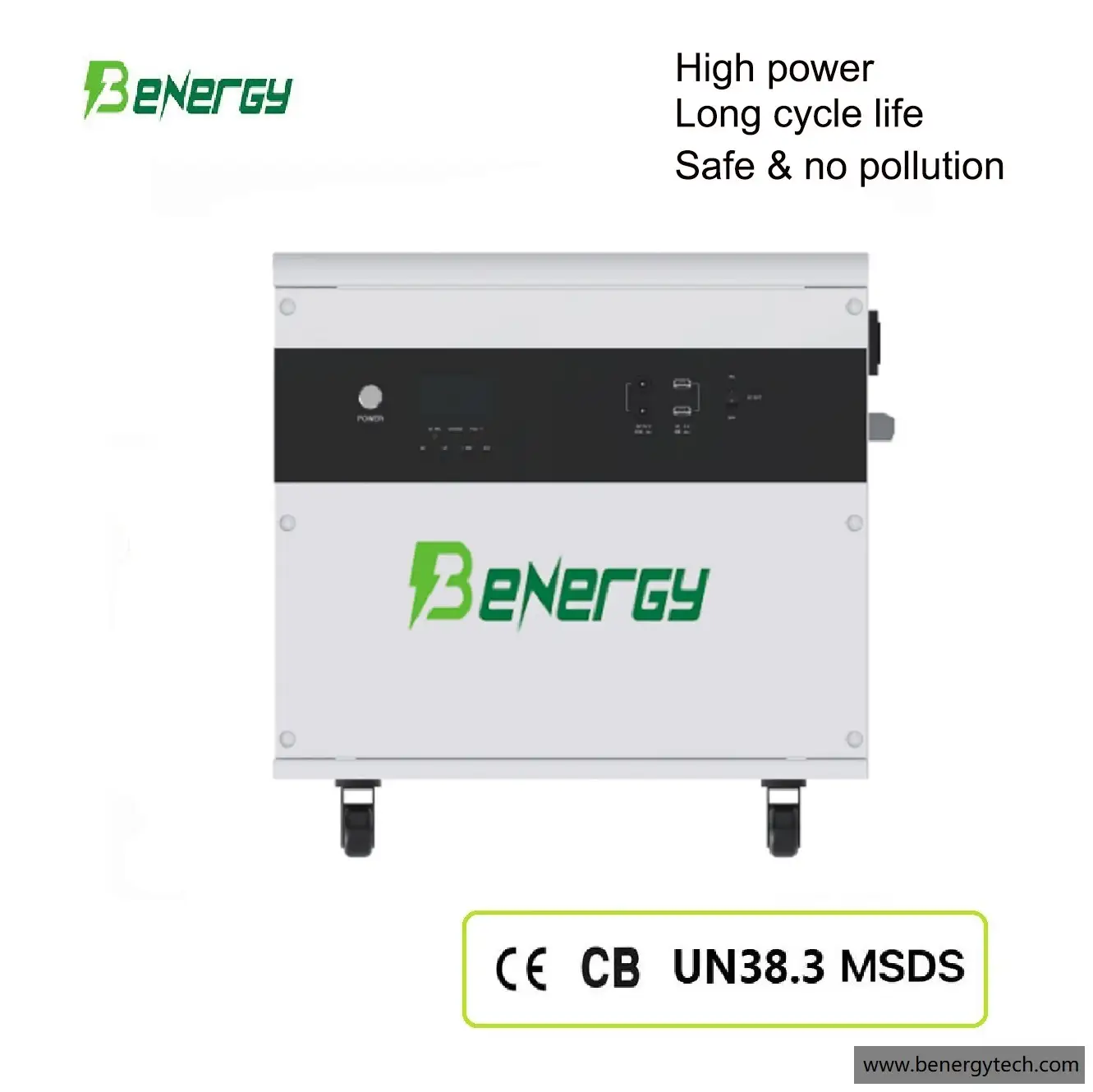

5kwh All in One 51.2V 48V 100Ah Lifepo4 Battery Energy Storage System
Benergy BWB-48100AH 5KWH battery system is a kind of new hybrid photovoltaic energy system that combines solar energy storage, city charge, and AC sine wave output into one system. It adopts the DSP control technology. Through advanced control algorithm, it has the characteristics of high response speed, high reliability and high industrialization standard. There are 4 charge modes available: solar power only, city power priority, solar power priority and mains solar power; Inverter and mains power can be selected to meet different application requirements.
Specifications:
AC Parameters | |||
Rated input power | 2KW | 2KW | 3.5KW |
Input voltage | AC220V | AC220V | AC120V |
Input frequency | 50Hz/60Hz (Automatic adaptation) | 50Hz/60Hz (Automatic adaptation) | 50Hz/60Hz (Automatic adaptation) |
Rated output power | 2KW | 2KW | 3.5KW |
Maximum output power | 4000VA | 4000VA | 6000VA |
Output voltage | 3*AC220V | 3*AC220V | 3*AC120V |
Waveform | Pure sine wave | Pure sine wave | Pure sine wave |
MPPT Parameters | |||
Output power | 1400W | 1400W | 4200W |
PV operating voltage range | 30-100Vdc | 30-100Vdc | 60-145Vdc |
MPPT voltage range | 30-85Vdc | 30-85Vdc | 60-115Vdc |
Solar charging current | 0-60A | 0-60A | 0-80A |
Battery Parameters | |||
Rated capacity | 100Ah | 200Ah | 100Ah |
Rated voltage | 25.6V | 25.6V | 51.2V |
Energy | 2.56KWH | 5.12KWH | 5.12KWH |
Working voltage range | 20~29.2V | 20~29.2V | 40~58.4V |
Battery type | Lithium iron phosphate CAN/RS485 | Lithium iron phosphate CAN/RS485 | Lithium iron phosphate CAN/RS485 |
Communication interface | 100A | 100A | 100A |
Continuous charging current | 100A | 100A | 100A |
Continuous discharge current | 110A | 110A | 110A |
Weight | 110A | 110A | 110A |
Dimention(L*W*H) | 41KG 455*332*448MM | 64KG 455*332*580MM | 71.5KG 496*357*595MM |
Other Parameters | |||
USB output | 2*5V2A | 2*5V2A | 2*5V2A |
12VDC output | 2*12V3A | 2*12V3A | 2*12V3A |
Cooling method | Natural cooling | Natural cooling | Natural cooling |
IP | IP40 | IP40 | IP40 |
Product characteristic
All in one design and customer just need to plug in to use the battery.
Lithium battery with inverter inside as one cabinet, very tidy when put in your room.
Has multiple protection functions and 360 ° all-round protection.
Has complete short circuit protection, overvoltage and undervoltage protection, overload protection, reverse irrigation protection, etc.
There are 4 modes selectable: Solar power only, city power priority, solar power priority and hybrid charge.
LCD screen design, dynamic display of system and operation status.
Has power saving mode to reduce no-load loss.
Intelligent adjustable speed fan is used to dissipate heat efficiently and prolong the service lifepo4 of the system.
Details:
Package

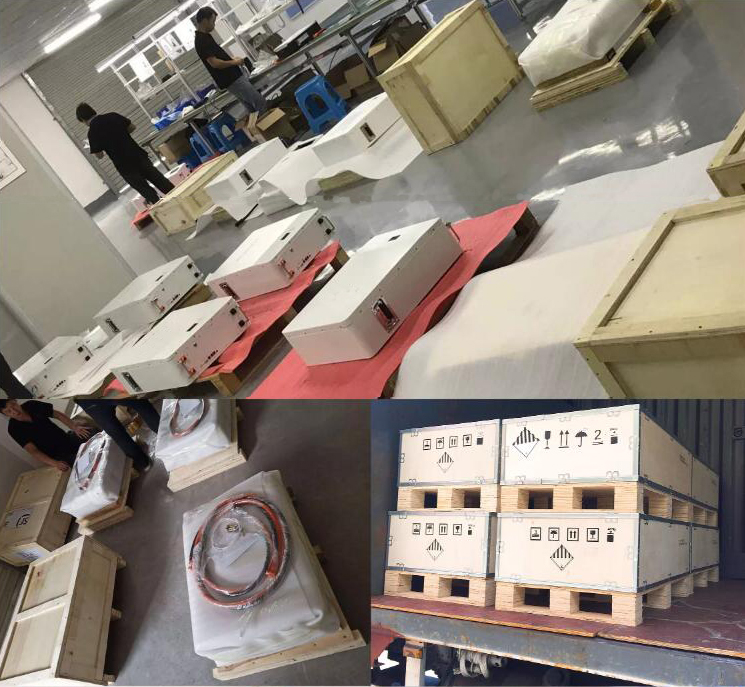

We pack with professional UN carton and with wooden cases outside, to insure safety during the shipping and no damages.
Applications:
Benergy 48V lithium Iron Phoshpate battery packs can be widely used for solar system,household system, energy storage system, UPS etc.
Advantage of LiFePO4
LiFePO4 Battery batteries are a type of Lithium Cell designed for high performance, safety and durability. They are 3.2V cells with a storage temperature range of -20℃~45℃ and a charge rate of 0.5C. These cells are certified to ISO9001,CE, IEC62619 standards and offer up to 6000 cycles of use. LiFePO4 cells are widely recognized as a superior battery technology that offers superior energy density, excellent thermal and chemical stability, and a high cycle life. They are perfect for applications requiring a more reliable and efficient power source.
Why choose Benergy 48V Lifepo4 battery pack?
Benergy can make Lithium Iron Phosphate battery (LiFePO4) cells into different battery packs, like 48V 50AH, 48V 60AH, 100AH, 120AH, 150AH, 160AH, 200AH, 230AH, 280AH, 300AH, 400AH etc. The unique combination of state-of-the art technology and smart software makes this lithium battery a robust, safe and easy to use energy storage solution. Compared to conventional lead-acid batteries, the Benergy 48V 60Ah lithium battery offers an enormous weight and space saving. It is very efficient, has extremely high performances and is maintenance free.
Our team of experts is ready and waiting to assist you - get in touch now!
Email: info@benergytech.com
what's app: +86-135 8045 2443
