Lifepo4 Battery 3.2V 20AH Prismatic Cell

Availability:
Quantity:
  • BPS-LFP-20AHP

  • BENERGY

  • 003220

3.2V 20AH Lifepo4 cell. Screw terminal design. Easy for pack composing.Can made different packs in series or in parallel.


Model No.: BPS-LFP20AHP


Parameter Table:


Product Type Lithium Iron Phosphate Cell
Shell Type Plastic Shell
Brand Name Benergy
Voltage 3.2V
Nominal Capacity 20AH
Minium Capacity 20AH
IR ≤5mΩ
Size 27*70*145mm (W,L,H)
Weight 600g±150g
Charge Mode CC/CV (Continuous current/Continuous Voltage)
Max Charge Current 15A (1C)
Charge Cut Off Voltage 3.65V±0.05
Standard Discharge Current 3A (0.2C)
Max Continuous Discharge Current 45A (3C)
Peak Discharge Current @3 sec 150A
Discharge Cut Off Voltage 2.5V
Terminals M6
Cycle Life >3000 Times (0.5C charge/discharge, 80% DOD)
Discharge Temperature -10~55℃
Charge Temperature 0~45℃
Application Electric boat, yacht, marine, EV etc.
Warranty 2 Years
OEM/ODM Yes(Accepted)


Cell Diagram:

QQ图片20230726115723

Discharge curves:

20210515094941_12382

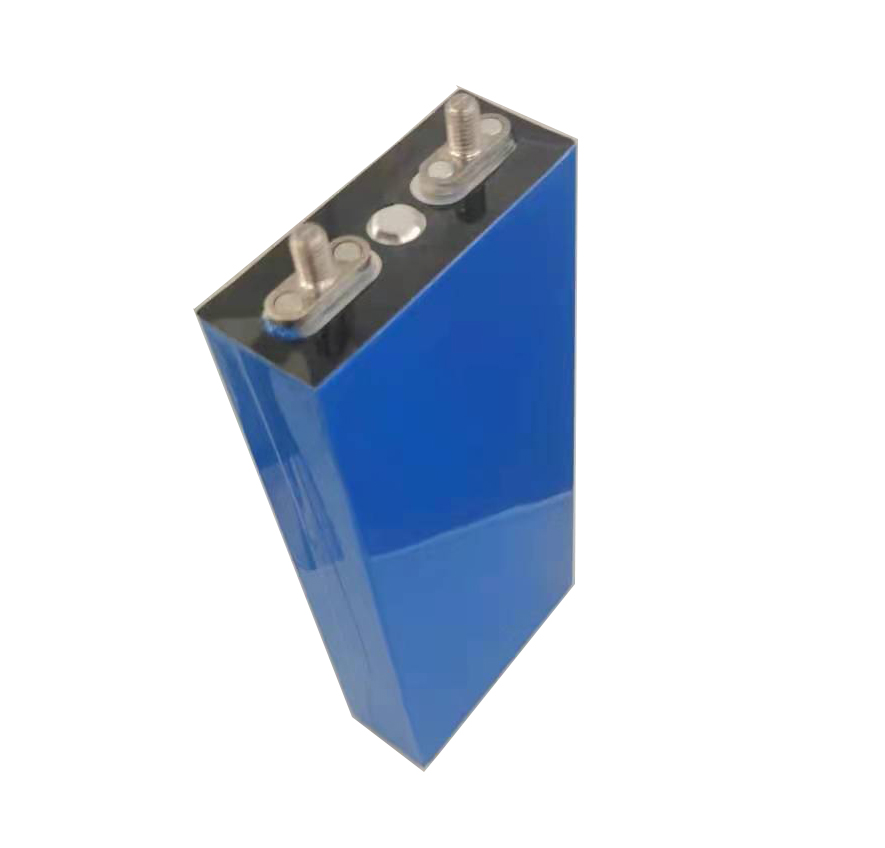

Product Picture:

New produced cell with no PVC

20AH7

New produced cell with PVC

20AH 3

Characteristic:

1. Long cycle life: More than 3000 times (charge and discharge at 1C, 80% capacity retention after 3000 cycles);

2. High safety: No fire and explosion in overcharge test;

3. High Energy Density:  40AH single cell weight 750g, size:36*130*158mm (W, L, H with terminal)

4. Good charging and discharging performance;

5. All raw material of the batteries are environmental-friendly;

6. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.

7.Produced with automatic equipments.


Package:

Package by wood case


Applications of Benergy Lifepo4 Battery:

Electric bike, Electric wheelchair, Electric scooter, Electric motorcycle, Golf cart, Electric robot, Vacuum cleaner, Electric mower, Wind/solar energy storage ...

Applications

FAQ:


Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.


Q2: How should I pay?
A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.


Q3: What is delivery time if we place an order?
A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.


Q4: Are your factory or trading company?
A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.


Q5.What is your warranty?
A5:We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.
