3.2V 15AH Lifepo4 cell. Screw terminal design. Easy for pack composing.Can made different packs in series or in parallel.
Model No.: BPS-LFP15AHP
Parameter Table:
Product Type | Lithium Iron Phosphate Cell |
Shell Type | Aluminium Shell |
Brand Name | Benergy |
Voltage | 3.2V |
Nominal Capacity | 15AH |
Minium Capacity | 20AH |
IR | ≤5mΩ |
Size | 27*70*160mm (W,L,H) 1.06*2.76*6.3" |
Weight | 600g±150g 1.32 lbs |
Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
Max Charge Current | 15A (1C) |
Charge Cut Off Voltage | 3.65V±0.05 |
Standard Discharge Current | 3A (0.2C) |
Max Continuous Discharge Current | 45A (3C) |
Peak Discharge Current @3 sec | 150A |
Discharge Cut Off Voltage | 2.5V |
Terminals | M6 |
Cycle Life | >3000 Times (0.5C charge/discharge, 80% DOD) |
Discharge Temperature | -10~55℃ |
Charge Temperature | 0~45℃ |
Application | Electric boat, yacht, marine, EV etc. |
Warranty | 2 Years |
OEM/ODM | Yes(Accepted) |
Cell Diagram:
Discharge curves under different discharge rate:

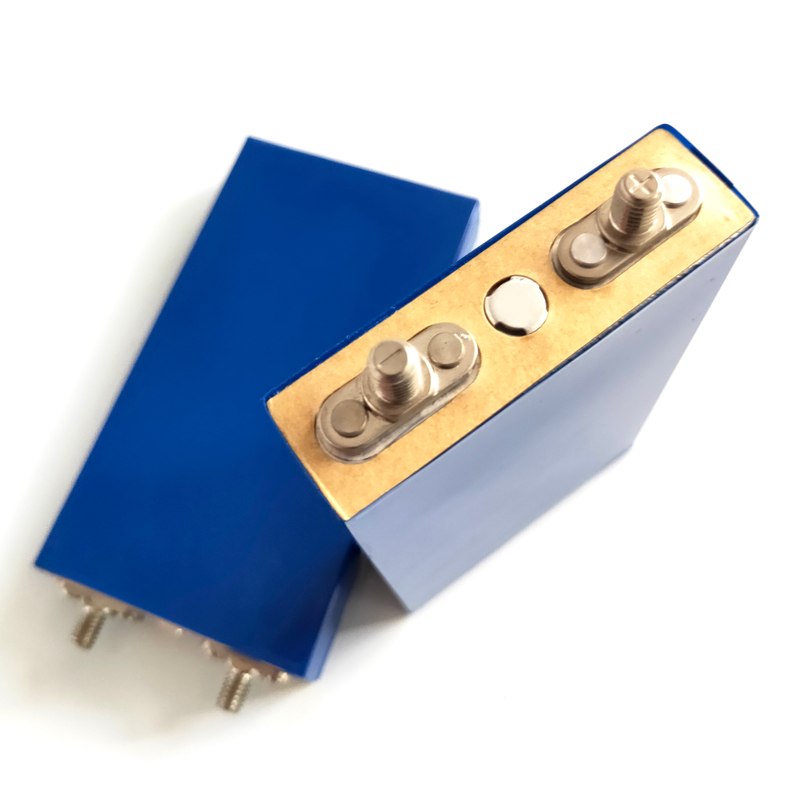

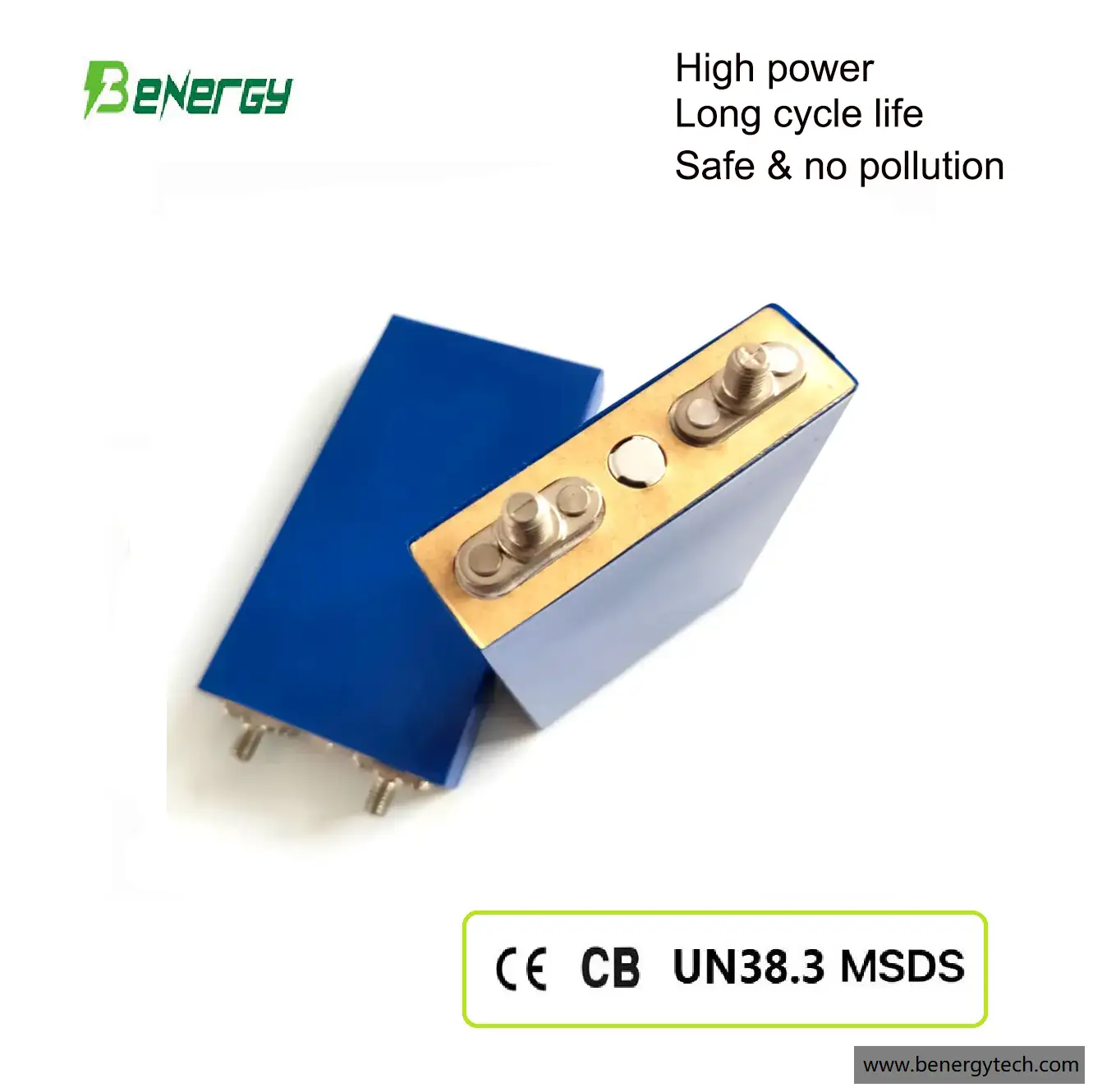

Product Pictures:
New produced cell with no PVC
New produced cell with PVC
Advantages of Benergy Lifepo4 cells:
1. Long cycle life: More than 3000 times (charge and discharge at 1C, 80% capacity retention after 3000 cycles);
2. High discharge rate, can bear 10C discharge;
3. High Energy Density: 15AH single cell weight 600g, size:27*70*160MM (W, L, H with terminal)
4. High safety: No fire and explosion in overcharge test;
5. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.
6. No pollution. Environmental friendly.
7. With bar code management system, can trace each cell condition once any problem.
8. Produced with automatic equipments.
Package:
Applications of Benergy Lifepo4 Battery:
Electric bike, Electric wheelchair, Electric scooter, Electric motorcycle, Golf cart, Electric robot, Vacuum cleaner, Electric mower, Wind/solar energy storage ...
FAQ:
Q1: What will be the delivery time if I place the order?
A1: Benergy are cell maker. Generally we have few cells in stock, for samples, we can send within 10 days. If for bulk order, we need to produce new cells and the production time about 30 days.
Q2: How should I pay?
A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: Can I get free samples?
A3: As Benergy cells are with high cost, we generally don't provide free samples.
Q4: Are your factory or trading company?
A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.
Q5.What is your warranty?
A5:We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.
