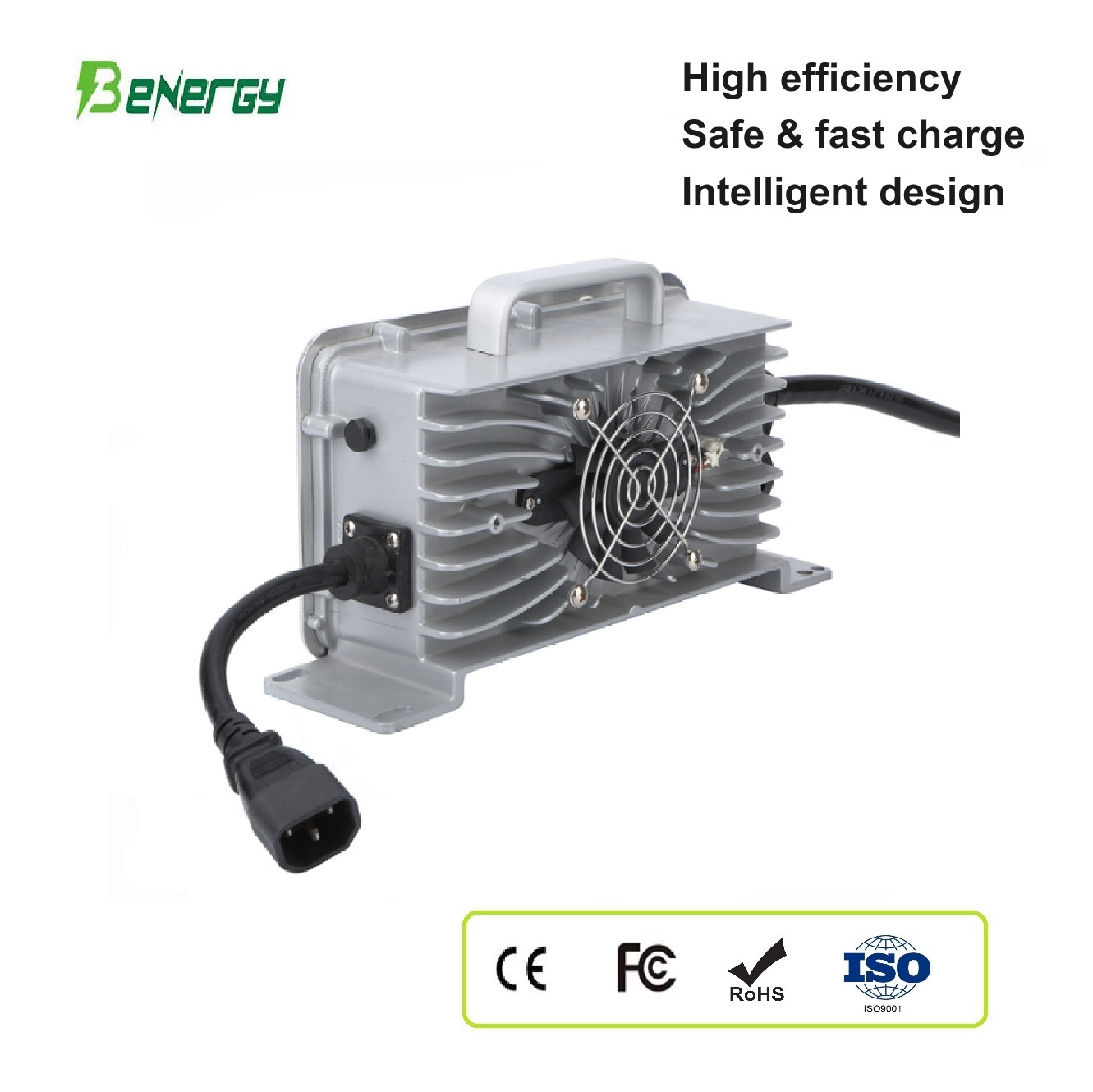

12V 30A Smart Battery Charger for Lithium & Lead Acid Batteries - Fast Charging, Waterproof IP65, Universal Compatibility
Features:
1. Long cycle life
2. High Safety
3. Wide temperature range
4. Environmental friendliness
5. IP67
6. With reverse connection / short-ciruit / over heat/ low voltage / over voltage protection
12V 30A Battery Charger Specifications
|
Product Type |
Lithium Iron Phosphate Battery Charger |
|
Brand Name |
Benergy |
|
For Battery Pack |
12V (4S) Lifepo4 Battery Packs |
|
Charge Voltage |
14.6V |
|
Charge current |
30A |
|
Size |
282×146×82mm (L,W, H) 11.1*5.75*3.23 inch |
|
Weight |
3.0Kg±50g 6.61 lbs |
|
Charge Mode |
CC/CV (Continuous current/Continuous Voltage) |
|
Warranty |
1 Year |
|
OEM/ODM |
Yes(Accepted) |
Charger specification
|
Max.output power |
Input voltage |
Output voltage |
Combined regulation |
Output current |
Combined |
|
1500W |
90-264V ac |
14.6V+/-0.2Vdc |
+/-0.2V |
30A |
+/-3A |
|
AC input Frequency |
With APFC function, Power Factor |
Swoft Switching Technology, Efficiency |
Protection Level |
Charging Model |
CAN Communication |
|
40-70Hz |
≥0.98 |
≥93.0% |
IP67 |
Adjustable Dynamic Charging Curve |
Optional |
|
Opetration Temperature |
Storage Temperature |
Noise |
LED Lighting Indicator for charing process |
|
|
|
-40 to +60 °C |
-55 to +100°C |
≤ 45 db |
Standard |
|
|

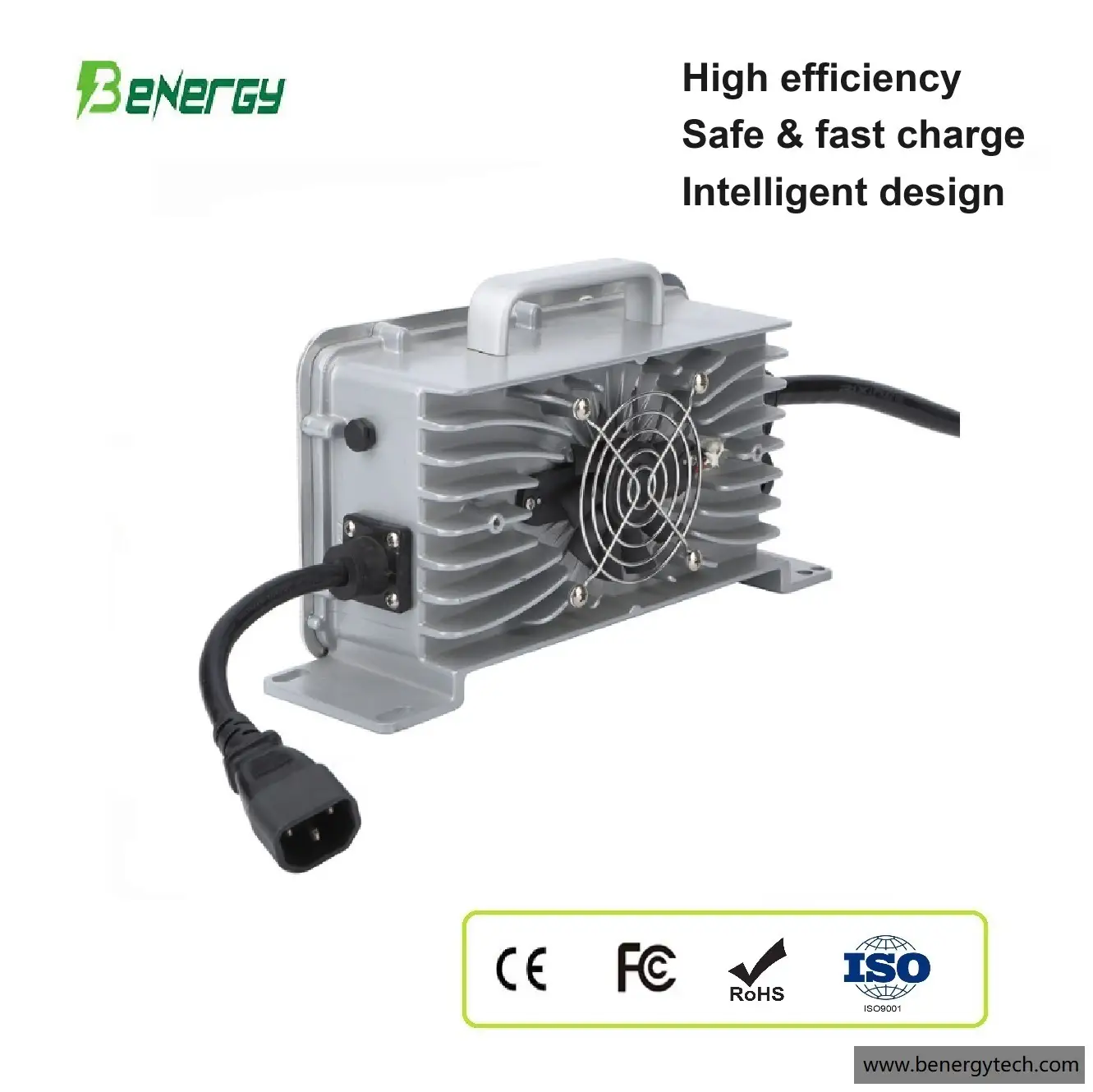

product display
Detail size
Protection Function
- Overheat Protection
The charger features intelligent temperature control for safety. If the internal temperature exceeds 80°C, it automatically reduces the charging current to prevent overheating. When the temperature surpasses 85°C, the charger shuts down completely for protection. Once the temperature cools down, the charger automatically resumes charging, ensuring safe and efficient operation for electric vehicles like tricycles, rickshaws, and e-bikes.
- Short Circuit Protection
When the output get short-circuited, the charger wil automatically shutdown the output. After trouble shooting, the battery can resume charging.
- Battery Reverse Connection Protection
When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.
- Input low-voltage &Over-voltage Protection
If the input voltage is lower than 90V or higher than 264v, the charger will shut down protectively and automatically resume working when the voltage is normal again.
- Full Automatic Shutdown
Automatically shut down after full charge.
Input connector (selectable)
Output connector (selectable)
Applications
Professional Packages
Certifications
Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.
Other Benergy Chargers for your reference
FAQ
