24 Volt 30 Amp Solar Charger for Robotics - Industrial Grade Battery Charging Solution
Features:
1. Long cycle life
-
Advanced Safety Features - Built-in Protection Circuit
-
Wide Operating Temperature Range (-20°C to 60°C)
-
Eco-Friendly Design - RoHS Compliant
-
IP67 Waterproof & Dustproof Rating
-
Comprehensive Protection System:
-
Reverse Polarity Protection
-
Short-Circuit Protection
-
Overheat Protection
-
Low Voltage Cutoff (LVC)
-
Over Voltage Protection (OVP)
-
24V 30A Battery Charger Specifications
|
Product Type |
Lithium Iron Phosphate Battery Charger |
|
Brand Name |
Benergy |
|
For Battery Pack |
24V (8S) Lifepo4 Battery Packs |
|
Charge Voltage |
29.2V |
|
Charge current |
30A |
|
Size |
282×146×82mm (L,W, H) 11.1*5.75*3.23 inch |
|
Weight |
3.0Kg±50g 6.61 lbs |
|
Charge Mode |
CC/CV (Continuous current/Continuous Voltage) |
|
Warranty |
1 Year |
|
OEM/ODM |
Yes(Accepted) |
Main product specification
|
Max.output power |
Input voltage |
Output voltage |
Combined regulation |
Output current |
Combined |
|
1500W |
90-264V ac |
29.2V+/-0.2Vdc |
+/-0.2V |
30A |
+/-3A |
|
AC input Frequency |
With APFC function, Power Factor |
Swoft Switching Technology, Efficiency |
Protection Level |
Charging Model |
CAN Communication |
|
40-70Hz |
≥0.98 |
≥93.0% |
IP67 |
Adjustable Dynamic Charging Curve |
Optional |
|
Opetration Temperature |
Storage Temperature |
Noise |
LED Lighting Indicator for charing process |
|
|
|
-40 to +60 °C |
-55 to +100°C |
≤ 45 db |
Standard |
|
|

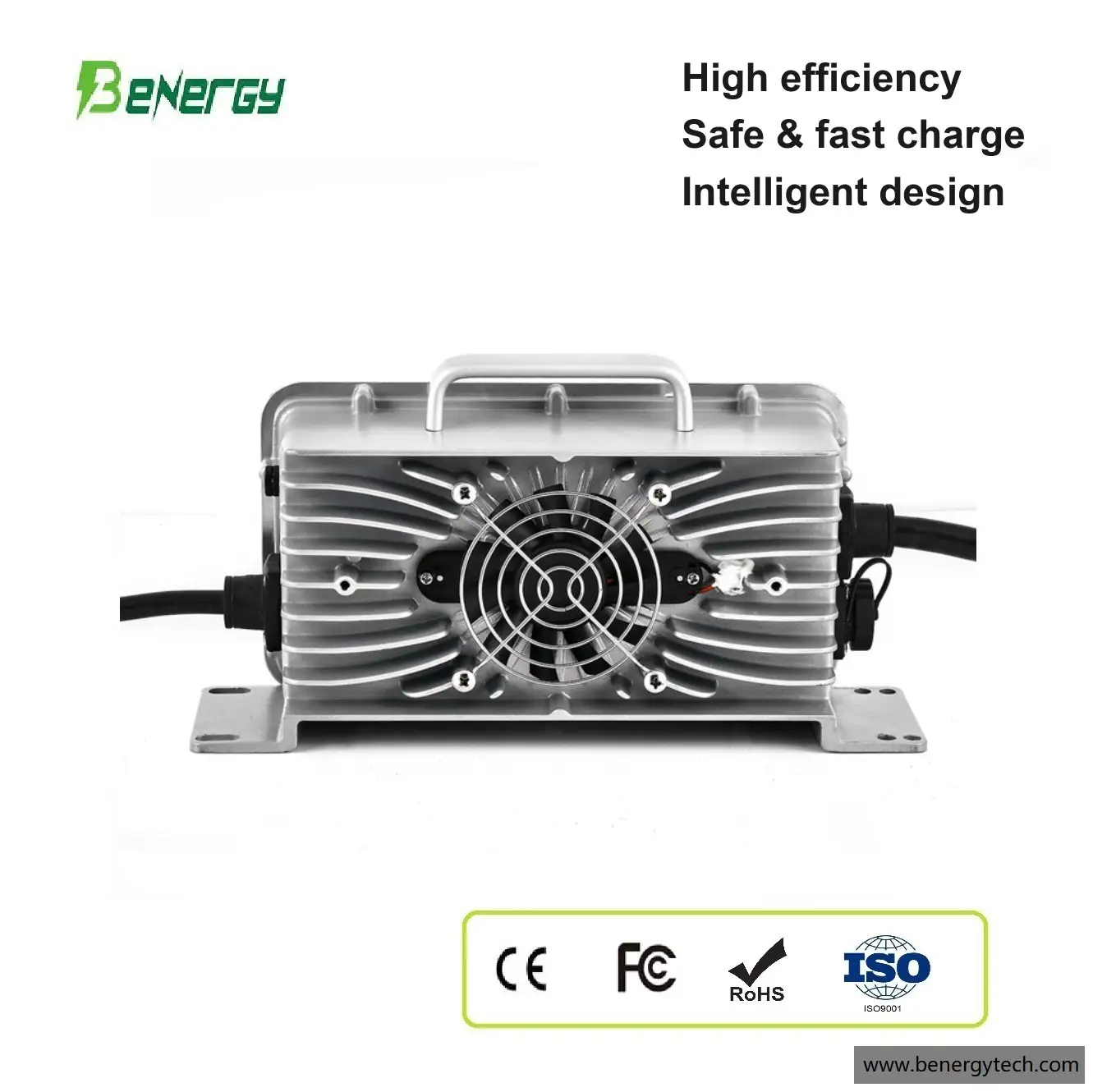

product display
Detail size
Protection Function
- Overheat Protection
When the internal temperature of the charger exceeds 80℃, the charging current will reduce automatically, When it exceeds 85℃ the charger will shutdown for protection. When the temperature drop, the charger automatically resumes to charge.
- Short Circuit Protection
When the output get short-circuited, the charger wil automatically shutdown the output. After trouble shooting, the battery can resume charging.
- Battery Reverse Connection Protection
When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.
- Input low-voltage &Over-voltage Protection
If the input voltage is lower than 90V or higher than 264v, the charger will shut down protectively and automatically resume working when the voltage is normal again.
- Full Automatic Shutdown
Automatically shut down after full charge.
Input connector (selectable)
Output connector (selectable)
Applications
Professional Packages
Certifications
Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.
