Telecom Tower Base Station Rack Mounting Battery 48V 100AH
Telecom Tower Base Station Rack Mounting Battery 51.2V 100AH
Parameter Table:
| No. | Technical parameter | 51.2V 100AH |
| 1 | Rated Capacity | 100Ah |
| 2 | Nominal voltage(15S) | 51.2V |
| 3 | Battery pack max float voltage | 58.4V |
| 4 | Discharge cut off voltage | 40V |
| 5 | Max charge current | 50A |
| 6 | Max discharge current | 100A |
| 7 | Battery pack weight | 50±1kg |
| 8 | Size | 176*442*480MM |
| 9 | Charge temperature | 0℃~55℃ |
| 10 | Discharge temperature | -10℃~55℃ |
| 11 | Storage temperature | -10℃~55℃ |
| 12 | Cooling way | Natural cooling |
| 13 | Communication | CAN/RS232/RS485 |
Product Picture:
Our Battery Pack Details :
Cells are weldered with BMS and connectors by laser welding machine
Product Advantages
1. Long cycle life. Comparing to lead acid battery, the cycle life of Benergy Lifepo4 batteries is about 4-5 times longer than lead acid batteries.
2. High energy density. Benergy Lifepo4 battery's size is 1/3 smaller than lead acid battery, 2/3 lighter in weight than lead acid battery.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
4. Good charging and discharging performance. Benergy Lifepo4 batteries can bear 3C continous discharge and 10C burst discharge.
5. Full green and . All raw material of Benergy batteries are environmental-friendly, no pollution to the environment.
6. Wide working temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.
7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.
8. Free maintanance. Benergy battery pack don't need frequent maintanance after installation, which will be more economical for long time using.

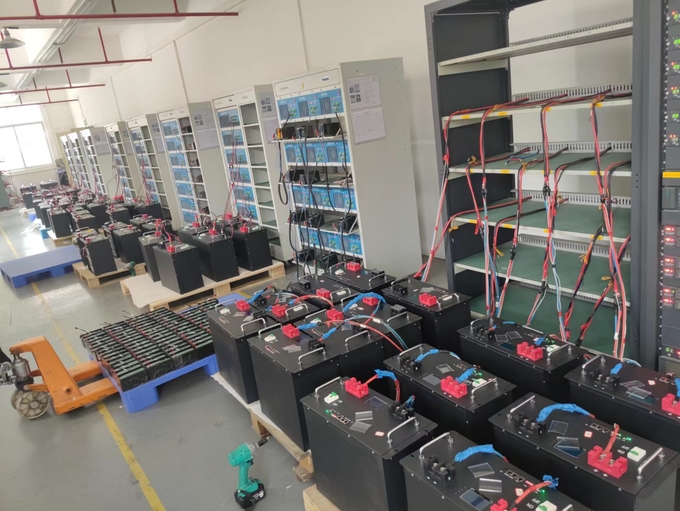

Benergy 48V 100AH battery packs for 5G base station are under Testing:
Applications:
Benergy Lithium ion phosphate (Lifepo4 )batteries are used in a variety of applications, like various electric vehicles, storing energy from renewable sources such as solar and wind power, and providing backup power for critical applications such as hospitals , 5G station building and data centers.
Production line details and packages:
Certifications:
Benergy can provide CE, ROHS, MSDS, UN38.3, CB, IEC62619, IEC 62133 for our batteries.
