    Lithium Ion Battery Pack 48v 100ah Lifepo4 Rechargeable Solar System Energy Storage Batteries


    Advantage of LiFePO4


    Lithium iron phosphate batteries (LiFePO4 or LFP) offer lots of benefits compared to lead-acid batteries and other lithium batteries. Longer life span, no maintenance, extremely safe, lightweight, improved discharge and charge efficiency, just to name a few. LiFePO4 batteries are not the cheapest in the market, but due to a long life span and zero maintenance,which means that you don't need to replace in a long time,you can enjoy the convenience, it’s the best investment you can make over time.


    Why choose Benergy 48V Lifepo4 battery pack?


    The Benergy 48V 100Ah is a Lithium Iron Phosphate battery (LiFePO4) with a rated capacity of 150Ah. The unique combination of state-of-the art technology and smart software makes this lithium battery a robust, safe and easy to use energy storage solution. Compared to conventional lead-acid batteries, the Benergy 48V 150Ah lithium battery offers an enormous weight and space saving. It is very efficient, has extremely high performances and is maintenance free.


    Product model

    48100

    48150

    48200

    Model No.

    BWM48100

    BWM48150

    BWM48200

    Dimentions(L*W*H)

    443.5*410.6*231mm

    443.5*410.6*231mm

    651*410.6*231mm

    Weight

    40kg

    60kg

    80kg

    Rated capacity

    100AH

    150Ah

    200Ah

    Rated voltage

    51.2V

    Working voltage

    40~58.4V

    Battery type

    LFP

    Communication mode

    CAN/RS232/RS485

    Constant charging current

    50A

    Constant discharging current

    100A

    Peak charging current

    100A

    Peak discharging current

    110A(3S)

    Max.Number of parallel

    16P

    IP rating

    IP54

    Charging temperature range

    0~60℃

    Discharging temperature range

    -20~60℃

    Cooling method

    Natural cooling

    Display

    LCD


    Battery pack picture:


    48V 100AH Lithium Battery Pack


    Battery-pack-picutre

    Battery-pack-picutre01


    Inveter applicable brand:


    Goodwe/PYLONGTESH/Growatt/Victron/LXP/Sofar/Deye/Sermatec/TBB/SMA

    Battery-pack-picutre02

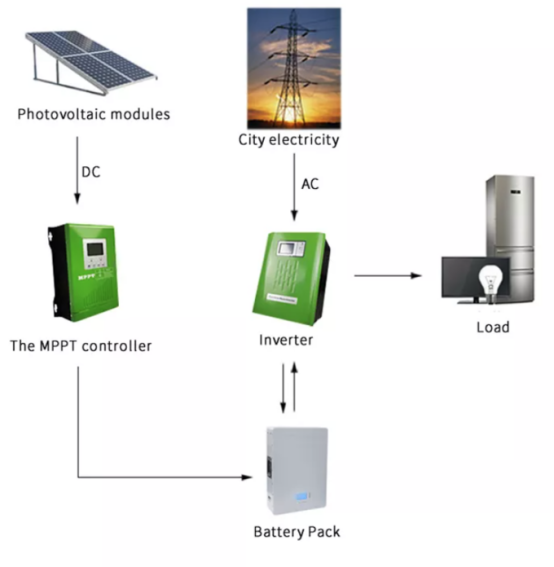

    Household OFF-Grid System

    Battery-pack-picutre03


    Battery-pack-picutre03

    Package

    01

    01

    01


    FAQ:


    Q1: Can I get free sample?
    A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.


    Q2: How should I pay?
    A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.


    Q3: What is delivery time if we place an order?
    A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.


    Q4: Are your factory or trading company?
    A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.


    Q5.What is your warranty?
    A5:We offer 2 -5 years warranty for all our battery pack.we ensure at least 3000 cycle life for the LiFePO4 battery pack, which means,after 3000@80% DOD,there will still around 80% capacityt left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.


    Q6.Can we put 48V LiFePO4 battery pack in parallel or series by ourself?
    A6:Yes. The battery can be put in parallel by customers. But there are few tips we need to pay attention:
    1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate;
    2> Do not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack;
    3> Do not put the 12V batteries in series.
    4> If you are not professional in parallel batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery;

    5> If you want to make a higher capacity battery pack, like 48V 200Ah, please order 48V 200AH directly. The cost for one 48V 200AH is lower than two 48V 100AH pack. To charge or discharge one 48V 200Ah directly is better than to charge or discharge two 48V 100AH packs, cycle life longer, safer.
