Features:
1. Faster charging
2. Maintenance free
3. Intelligent BMS provides overcharge/ overdischarge /overcurrent protections
4. Customizable battery size for easy installation
Specification
Product Type |
Lithium Iron Phosphate Cell |
Shell Type |
Aluminium shell |
Brand Name |
Benergy |
Voltage |
3.2V |
Nominal Capacity |
50AH |
Minium Capacity |
50AH |
IR |
≤0.7mΩ |
Size |
36*130*163mm (W,L,H) |
Weight |
1480g±150g |
Charge Mode |
CC/CV (Continuous current/Continuous Voltage) |
Max Charge Current |
40A (1C) |
Charge Cut Off Voltage |
3.65V±0.05 |
Standard Discharge Current |
20A (0.2C) |
Max Continuous Discharge Current |
200A (5C) |
Peak Discharge Current @3 sec |
300A |
Discharge Cut Off Voltage |
2.5V |
Cycle Life |
>2500 Times (0.5C charge/discharge, 100% DOD) |
Discharge Temperature |
-40~55℃ |
Charge Temperature |
0~45℃ |
Application |
Telecom sation building, solar system , energy storage, golf cart, EV etc. |
Warranty |
2 Years |
OEM/ODM |
Yes(Accepted) |
Products detail
Why choose Benergy Lifepo4?

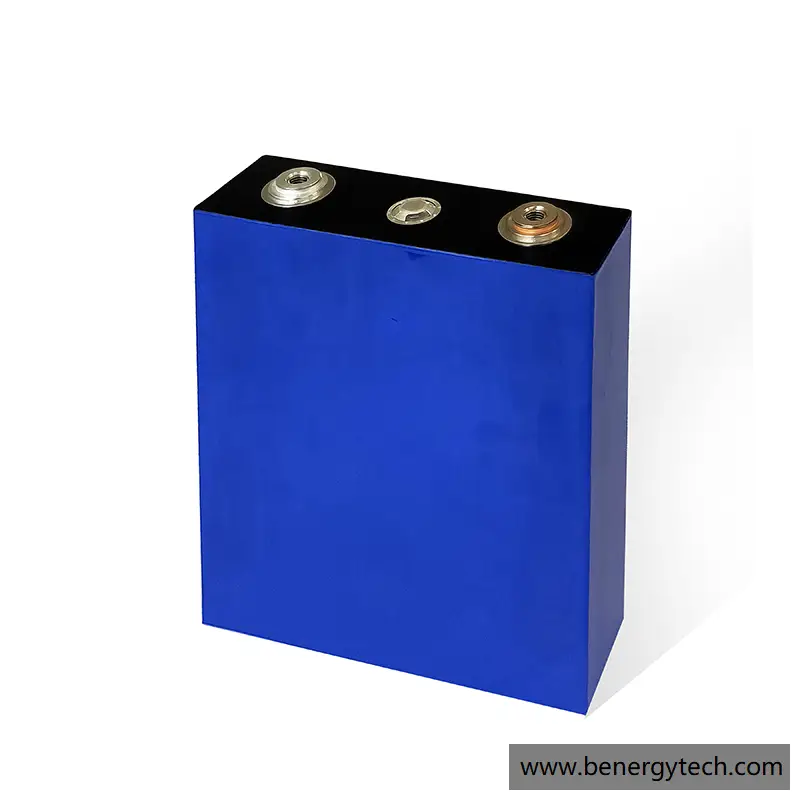

3.2V 50Ah Lifepo4 Cells BLT-LFP50AHP
Testing data under different temperature (3.2V 50AH)
-40°C support 0.2C charge.
-40°C can discharge more than 80% capacity.
Applications for low temperature cells
Production machine and production line
Certifications
Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.
