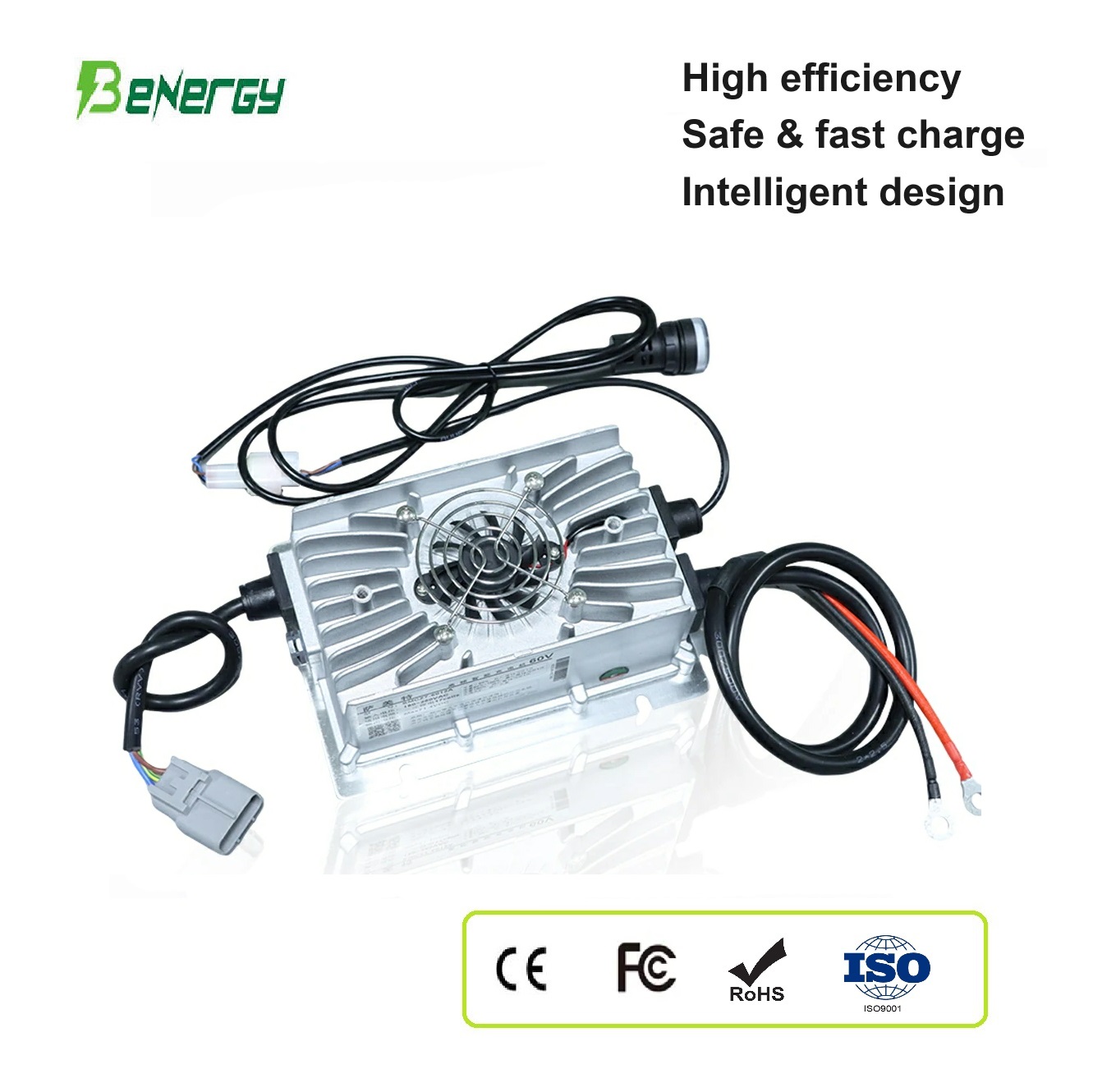

Golf Cart Battery Charger 24V 15A 8S Lifepo4 Battery Charger
Features:
1. Long cycle life
2. Safety
3. Wide temperature range
4. Environmental friendliness
5. Low self-discharge
6. High power density
25.6V 15A Charger Parameter Table:
|
Product Type |
Lithium Iron Phosphate Battery Charger |
|
Brand Name |
Benergy |
|
For Battery Pack |
24V (8S) Lifepo4 Battery Packs |
|
Charge Voltage |
25.6V |
|
Charge current |
15A |
|
Size |
190×140×74.5mm (L,W, H) 7.48*5.51*2.93 inch |
|
Weight |
2.2Kg±50g 4.85 lbs |
|
Charge Mode |
CC/CV (Continuous current/Continuous Voltage) |
|
Warranty |
1 Year |
|
OEM/ODM |
Yes(Accepted) |
Main product specification
|
Max.output power |
Input voltage |
Output voltage |
Combined regulation |
Output current |
Combined |
|
800W |
90-264Vac |
25.6V+/-0.2Vdc |
+/-0.2V |
15A |
+/-3A |
Protection Function
- Overheat Protection
When the internal temperature of the charger exceeds 80℃, the charging current will reduce automatically, When it exceeds 85℃ the charger will shutdown for protection. When the temperature drop, the charger automatically resumes to charge.
- Short Circuit Protection
When the output get short-circuited, the charger wil automatically shutdown the output. After trouble shooting, the battery can resume charging.
- Battery Reverse Connection Protection
When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.
- Input low-voltage &Over-voltage Protection
If the input voltage is lower than 90V or higher than 264v, the charger will shut down protectively and automatically resume working when the voltage is normal again.
- Full Automatic Shutdown
Automatically shut down after full charge.
product display
Detail size
Input connector (selectable)
Output connector (selectable)
Applications
Packages
Certifications
Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.
