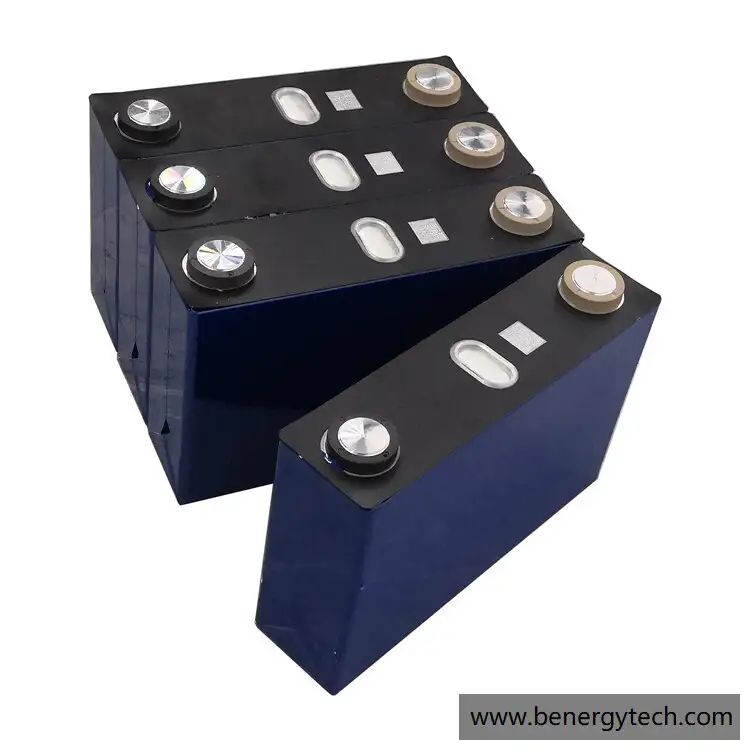

Lifepo4 prismatic cells 3.2V 206AH

Features:

Benergy prismatic cells capacity covers from 5Ah to 314AH. Cells are more flexible to make different battery packs for various applications. Long cycle life. High safety. Can be used for different devices, power tools, electronic products etc.

Model:

BXL-LFP100AHP

Voltage:

3.2V

Capacity:

100AH

Max Charge Current:

100Ah (1C)

Max Continuous Discharge Current:

300Ah (3C)

Size:

48*174*132mm (W,L,H)

Size in inch:

1.89*6.85*5.20 " (W,L,H)

Weight:

2300g±150g

Weight in pound:

5.07 lb

Cycle life:

3000+ cycles

HS Code:

8507600090

Brand:

Benergy

Inquiry

Write a Review

Specification

Item		Condition/ Note	Specification	Remarks
2.1 Nominal Capacity		1C discharge capacity	206Ah
2.2 AC Impedance		At AC 1000 Hz	≤0.4 mΩ
2.3 Nominal Voltage			3.2 V
2.4 Cell Size			53173200mm (W,L,H) 2.876.817.87"	For details, please prefer to Figure 1.
2.5 Cell Weight		（Cell net weight）	4200± 150 g 9.26 lbs
2.6 End-of-charge Voltage		CC Mode	3.65 V
2.7 End-of-charge Current		CV Mode	100 A
2.8 Charging Method		Standard Charging	1 C at CC/CV	60 min
2.9 End-of-discharge Voltage		CC Mode	2.5 V
2.10 Max continuous Discharging Current			206A
2.11 Max Pulse Discharging Current			412A	2C , ≤120s
Max Pulse Discharging Current			618A	3C, ≤15s
2.12 Cycle Life		1 C/ 100 % DOD	≥4000 cycles
2.13 Operating Temperature Range	Charging Temperature		0~60 °C
	Discharging Temperature		-20~ 60°C
	Storage Temperature	1 year	-20~ 45°C
2.14 Appearance		Without break, scratch, distortion, contamination, leakage and so on

Cell detail sizes

3.2V 206AH

Packages

Professional packages

Why choose Benergy Lifepo4?

Design

Safety is the most important for battery using.

Brand

Resisted our own Brand: BENERGY in European Union and HK. Welcome OEM, ODM.

Service

* Can arrange the shipping for customers.
* Can customize the battery pack.

Quality

* Professional Lithium Iron Phosphate Cell Maker since 2009 when Lifepo4 cell technology is still quite new.
* All cells are Level A 100% New Lifepo4 Cells
* 3.2V single lifepo4 cells , available both Aluminum Shell and Plastic Shell Prismatic Cells.
* With bar code/ QR code, can trace every cell information for the whole production process.
* Strict testing during every production step. Final testing before shipping.
* Provide testing data of each cell before shipping.

Applications of Benergy Lifepo4 Battery

Benergy Lifepo4 batteries can be widely used for Electric bike, Electric wheelchair, Electric scooter, Electric motorcycle, Golf cart, Electric robot, Vacuum cleaner, Electric mower, Wind/solar energy storage ...

图片2 (4)

What is an Lifepo4?

● LiFePo4 battery mean lithium Iron Phosphate battery which is a kind of lithium ion rechargeable battery. The single voltage is 3.2V and capacity can be 90mAH to 300AH.

● LiFePo4 batteries are the safest lithium battery type currently available on the market today. With characteristic of lighter weight, smaller size, longer cycle life, free maintenance, no pollution, no memory effect they can fully replace lead acid batteries and Ni-MH/Ni-CD batteries.

● Benergy has been producing and exporting Lifepo4 cells since 2009 and we have been providing quality, reliable and safe battery solutions world widely.

Production machine and production line

图片3 (2)

Certifications

Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.
