BPS-12100AHP
BENERGY
12V 100AH Lithium Battery Pack for solar street light water proof design
12V 100AH Lithium Battery Pack Parameter Table:
| Product Type | Lithium Iron Phosphate Battery |
| Brand Name | Benergy |
| Voltage | 12.8V |
| Nominal Capacity | 100AH |
| Minium Capacity | 100AH |
| Pack way | 4S1P |
| Size | 330*173*215mm (W,L,H) |
| Weight | 1000g±150g |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Max Charge Current | 70A (Adjustable) |
| Charge Cut Off Voltage | 14.6V±0.05 |
| Standard Discharge Current | 20A |
| Max continuous discharge current | 20A(Adjustable) |
| Peak Discharge Current @3 sec | 40A(Adjustable) |
| Discharge Cut Off Voltage | 10V |
| Terminal | water proof |
| Cycle Life | >2500 Times (0.5C charge/discharge, 100% DOD) |
| Discharge Temperature | -10～55℃ |
| Charge Temperature | 0～45℃ |

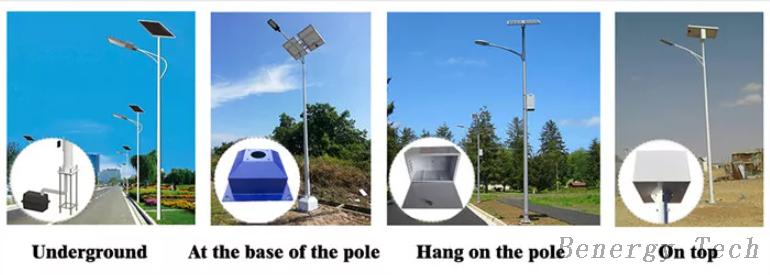

| Application | Solar street light, gardon light, household solar light etc. |
| Warranty | 2 Years |
| IP range | IP65 |
| Load power | ≤ 12V 128W |
| OEM/ODM | Yes(Accepted) |

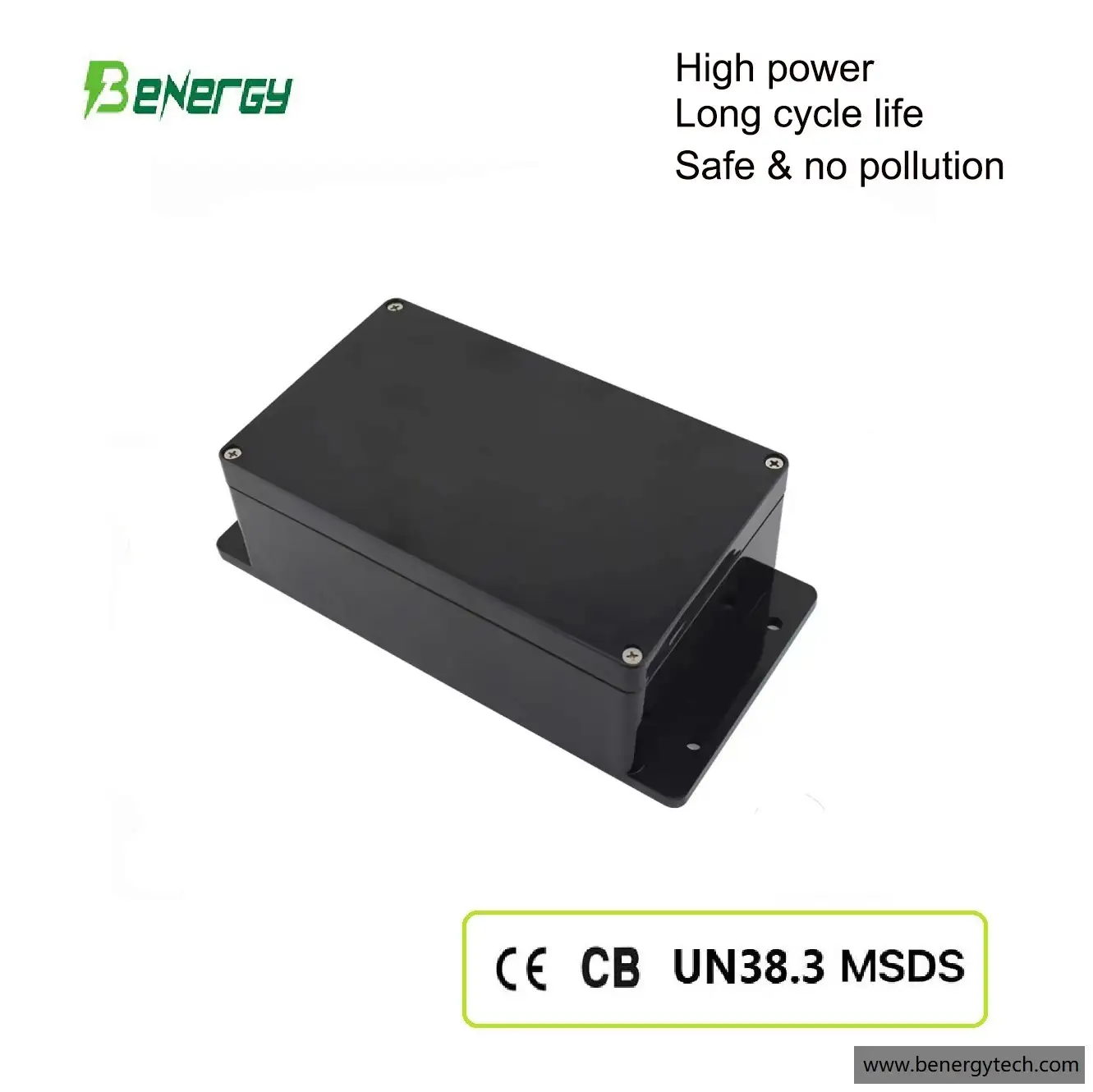

Battery pack detail picture :
12V 100AH Lithium Battery Pack details
Waterproof connectors (can change other connectors for customer based on your detail requirement)
Product Advantages
* Ultra long Cycle life — LiFePO4 batteries have more than 3500 (3000~5000) times cycle life for the battery packs, which means after 3500@80% DOD,there will still around 80% capacity left. You can use the battery for 5~8 years for normal Low frequency charging and discharging everyday.
* Constant Discharge Voltage — LiFePO4 technology gives a very flat discharge curve which means sustained power to the end of the cycle.
* Built in BMS + Solar MPPT — The lithium battery has a built-in Solar MPPT and Battery Management System (BMS) that can manage the charge and discharge of the battery and protect it from overcharging, deep discharge, overload, overheating and short circuit, and low self-discharge rate.
* Robust ABS Casing — the ABS construction, water proof connector, can make the battery last longer.
Benergy can arrange shipping for you. Shipping way can be by sea, by air,by UPS/DHL/Fedex delivery to your door.
Don't hesitate to contact us for any questions or concerns - we're here to help!
