Lifepo4 12V 20AH solar street light outdoor light battery

Model:

BPS-1220AHP

Voltage:

12V

Capacity:

20AH

Size:

240*150*85mm (W,L,H)

Size in inch:

9.45*5.9*3.35"

Weight:

2200g±150g

Weight in pound:

4.85 lbs

IP range:

IP65

Brand:

BENERGY

Inquiry

Write a Review

12V 20AH Lifepo4 Battery Pack for solar street light water proof design

12V 20AH Lithium Battery Pack Parameter Table:

Product Type	Lithium Iron Phosphate Battery
Brand Name	Benergy
Voltage	12.8V
Nominal Capacity	20AH
Minium Capacity	20AH
Pack way	4S1P
Size	24015085mm (W,L,H) 9.455.93.35mm
Weight	2200g±150g 4.85 lbs
Charge Mode	CC/CV (Continuous current/Continuous Voltage)
Max Charge Current	40A (Adjustable)
Charge Cut Off Voltage	14.6V±0.05
Standard Discharge Current	8A
Max continuous discharge current	20A(Adjustable)
Peak Discharge Current @3 sec	40A(Adjustable)
Discharge Cut Off Voltage	10V
Terminal	water proof
Cycle Life	>2500 Times (0.5C charge/discharge, 100% DOD)
Discharge Temperature	-10～55℃
Charge Temperature	0～45℃
Application	Solar street light, gardon light, household solar light etc.
Warranty	2 Years
IP range	IP65
Solar panel	≤ 18V 120W
OEM/ODM	Yes(Accepted)

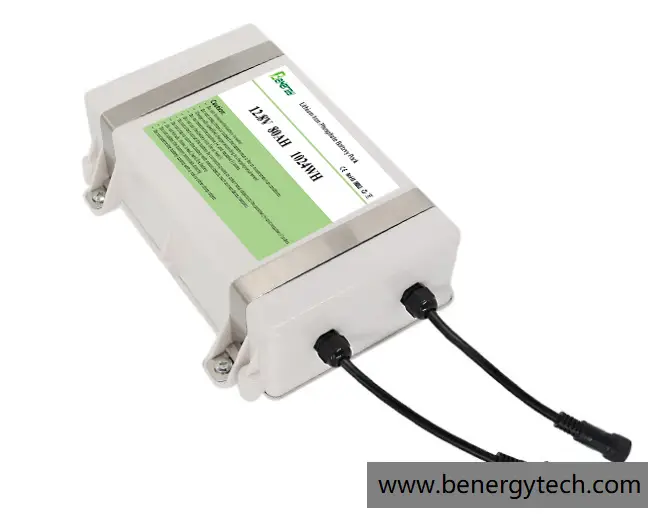

Battery pack detail picture :

12V 20AH Lithium Battery Pack details

12V 20AH 88

Waterproof connectors (can change other connectors for customer based on your detail requirement)

QQ图片20230710115158

With tightening strips

QQ图片20230710114601

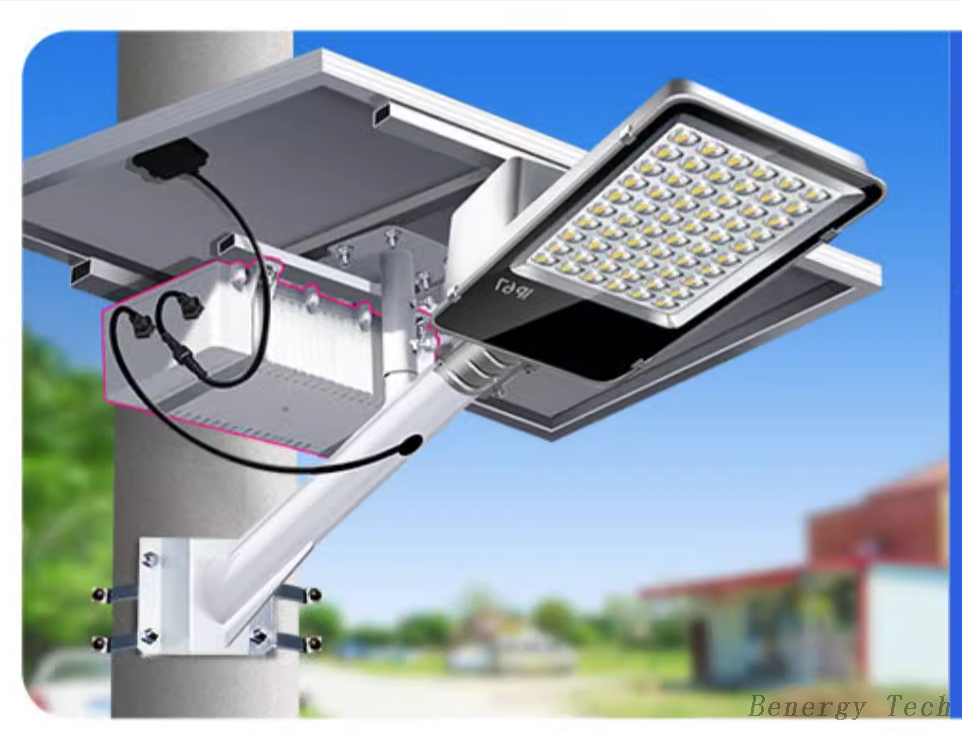

Applications

Product Advantages

* Ultra long Cycle life — LiFePO4 batteries have more than 3500 (3000~5000) times cycle life for the battery packs, which means after 3500@80% DOD,there will still around 80% capacity left. You can use the battery for 5~8 years for normal Low frequency charging and discharging everyday.

* Constant Discharge Voltage — LiFePO4 technology gives a very flat discharge curve which means sustained power to the end of the cycle.

* Built in BMS + Solar MPPT — The lithium battery has a built-in Solar MPPT and Battery Management System (BMS) that can manage the charge and discharge of the battery and protect it from overcharging, deep discharge, overload, overheating and short circuit, and low self-discharge rate.

* Robust ABS Casing — the ABS construction, water proof connector, can make the battery last longer.
