Benergy Industrial lithium batteries manufacturer since 2009

High Voltage 409V 100AH 50KWH Energy Storage System for on Grid Off Grid Solar System 1
High Voltage 409V 100AH 50KWH Energy Storage System for on Grid Off Grid Solar System 1

High Voltage 409V 100AH 50KWH Energy Storage System for on Grid Off Grid Solar System

    oops...!

    no product data.

    Go to homepage

    High Voltage Hybrid Charging Lifepo4 Solar Battery 409.6V 100AH Energy Storage System





    Power 10.24KWH 15.36KWH 20.48KWH 25.6KWH 30.72KWH 35.84KWH 40.96KWH
    Battery pack number 2 3 4 5 6 7 8
    Max discharge current 50A 50A 100A 100A 100A 100A 100A
    Peak discharge current 100A, 3S 100A, 3S 200A,3S 200A,3S 200A,3S 200A,3S 200A,3S
    Nominal voltage 204V 307V 204V 256V 307V 358V 409V
    Battery capacity 50AH 50AH 100AH 100AH 100AH 100AH 100AH
    Voltage range 160-230V 240-354V 160-230V 200-290V 240-345V 280-403V 320-460V
    Size(L*W*H,mm) 602*403*702 602*403*902 602*403*1102 602*403*1302 602*403*1502 602*403*1702 602*403*1902
    Weight (KG) 150KG 202KG 253KG 305KG 357KG 409KG 461KG
    Matched inverter power <10KW <15KW <20KW <25KW <30KW <35KW <40KW

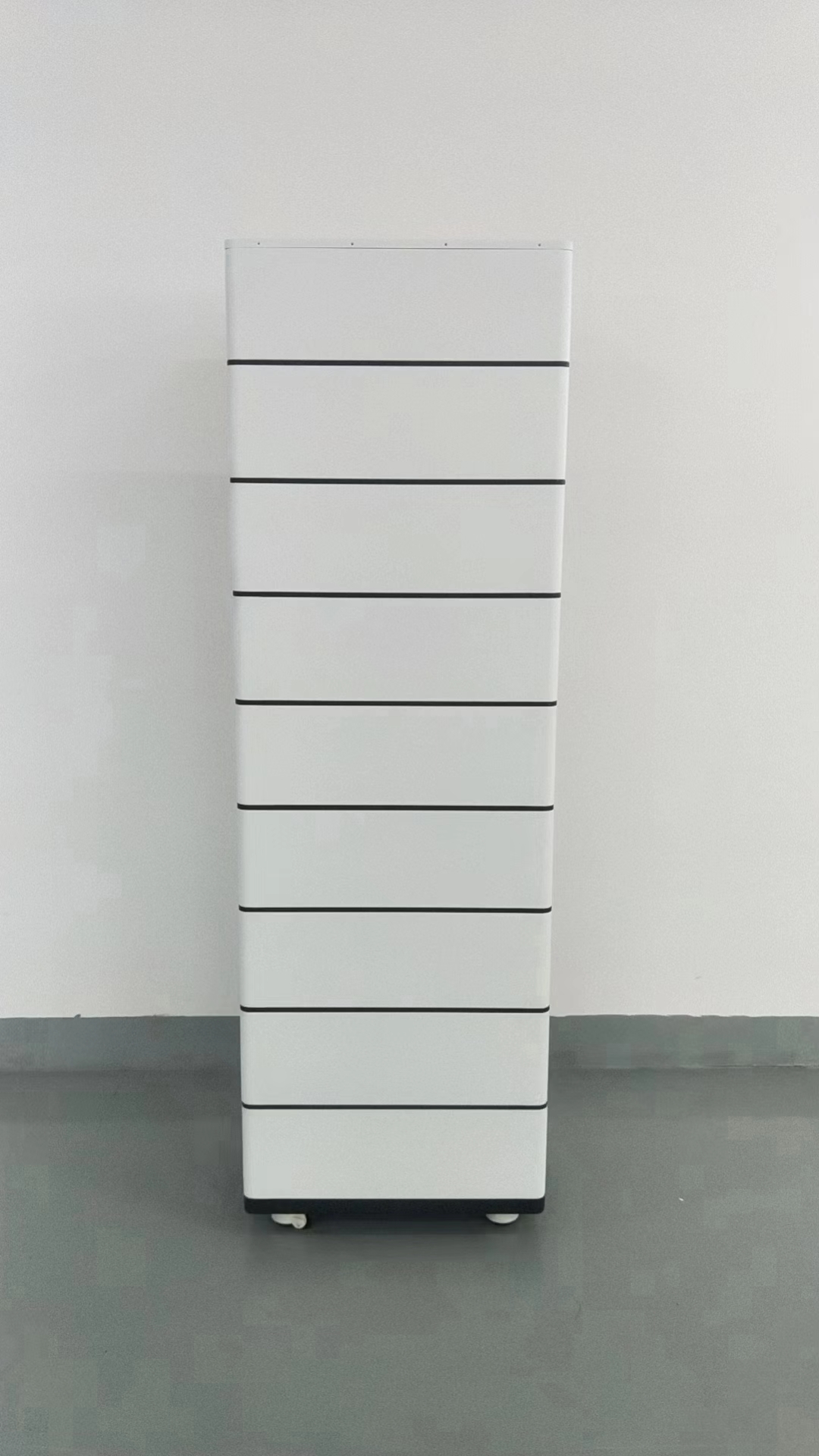

    Battery pack picutre:

    409.6V 100AH with Logo

    Details:


     微信图片_20221111202706


    Can match with on-gird/hybrid solar system.

    526165219

    Charging mode


    1. solar charging only: photovoltaic charging only, without starting mains charging, the most energy-saving way 2. Photovoltaic priority: Photovoltaic priority charging, starting mains charging only when photovoltaic fails.
    3. commercial power priority: commercial power gives priority to charging, and photovoltaic
    charging is started only when commercial power is invalid.
    4. Hybrid charging: Hybrid charging of photovoltaic and commercial power, giving priority to
    photovoltaic, commercial power supplement, the fastest way.





    Output way


    1. Photovoltaic priority: Photovoltaic+battery power supply, maximizing the use
    of solar energy while maintaining battery energy.
    2. commercial power priority: commercial power is given priority, and uninterrupted.
    3. backup UPS is started when commercial power is invalid.
    Inverter priority: maximize the use of DC power.


    Product Advantages

    1. Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);

    2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.

    3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.

    4. Good charging and discharging performance. 3C continous discharge and 10C burst.

    5. Full green and no pollution. All raw material of the batteries are environmental-friendly,

    6. Wide working temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.

    7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.

    8. Produced with automatic equipments.


    Package

    QQ图片20220825102104


    FAQ:

    Q1: Can I get free sample?
    A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.


    Q2: How should I pay?
    A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.


    Q3: What is delivery time if we place an order?
    A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.


    Q4: Are your factory or trading company?
    A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.


    Q5.What is your warranty?
    A5:We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.


    Q6.Can we put 12V LiFePO4 battery pack in parallel or series by ourself?
    A6:Yes. The battery can be put in parallel by customers. But there are few tips we need to pay attention:
    1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate;
    2> Do not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack;
    3> Do not put the 12V batteries in series.
    4> If you are not professional in parallel batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery;

    5> If you want to make a higher capacity battery pack, like 12V 200Ah, pls order 12V 200AH directly. The cost for one 12V 200AH is lower than two 12V 100AH pack. To charge or discharge one 12V 200Ah directly is better than to charge or discharge two 12V 100AH packs, cycle life longer, safer.
