BPS-32700AHP
BENERGY
003240

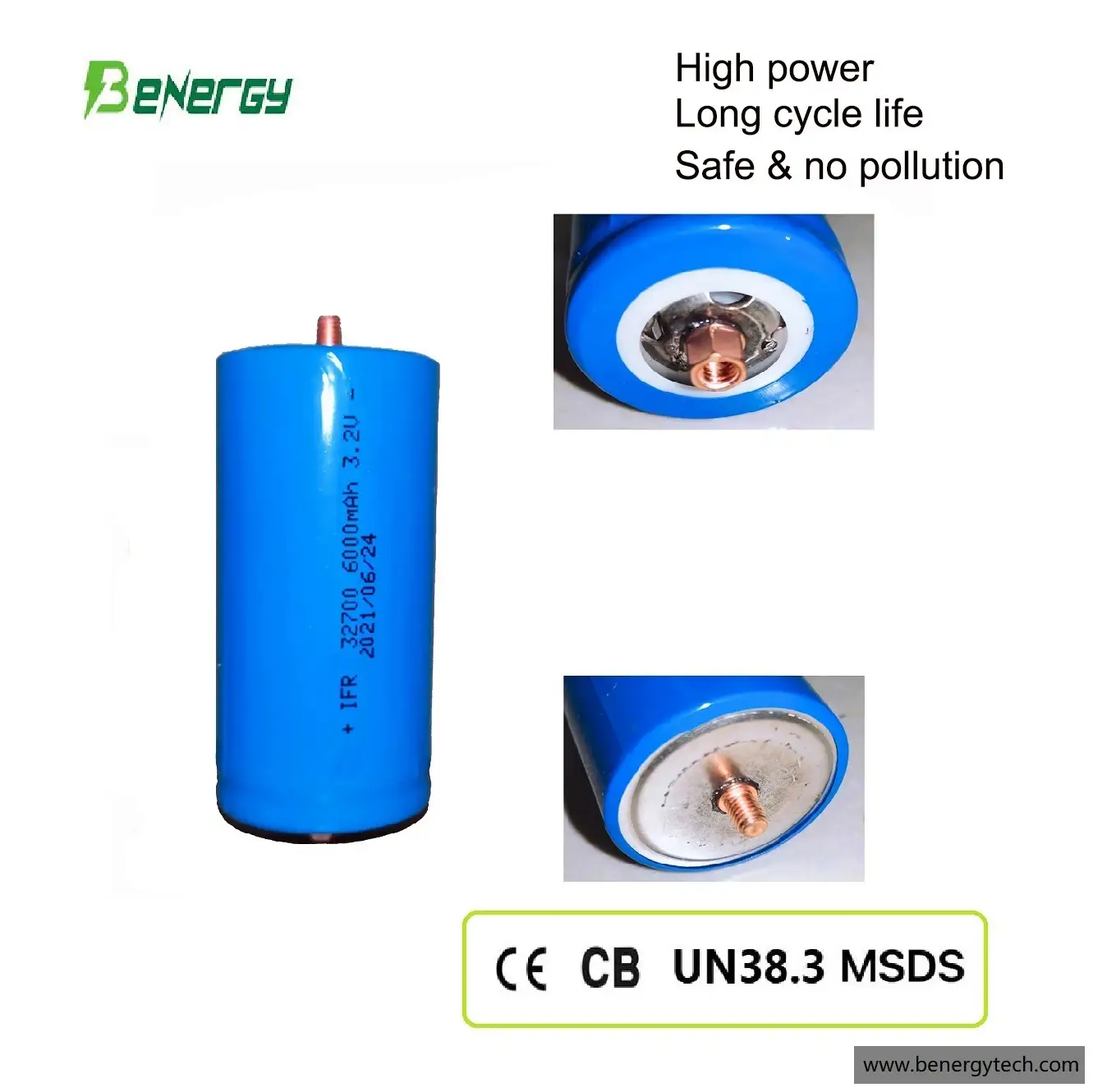

Model No.: BPS-32700AHP
Characteristic:
1. Long cycle life: More than 3000 times (charge and discharge at 1C, 80% capacity retention after 3000 cycles);
2. High safety: No fire and explosion in overcharge test;
3. High Energy Density: 6AH single cell weight 140g, size:32*70mm (Diameter*Height)
4. Good charging and discharging performance;
5. All raw material of the batteries are environmental-friendly;
6. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.
7.Produced with automatic equipments.
Specification:
Item | Condition/ Note | Specification | Remarks | |
2.1 Nominal Capacity | 1C discharge capacity |
6.0 Ah | ||
2.2 AC Impedance | At AC 1000 Hz |
6.5 mΩ | ||
2.3 Nominal Voltage |
3.2 V | |||
2.4 Cell Size | Cell Diameter | 32.2±0.3 mm Max. 32.5 mm | For details, please prefer to Figure 1. | |
Cell Height | 70.5±0.3 mm Max. 70.8mm | |||
2.5 Cell Weight | （Cell net weight） |
140± 5 g | ||
2.6 End-of-charge Voltage | CC Mode |
3.65 V | ||
2.7 End-of-charge Current | CV Mode |
0.3 A | ||
2.8 Charging Method | Standard Charging |
1 C at CC/CV |
60 min | |
Max Continuous Charging |
6 C at CC/CV |
10 min | ||
2.9 End-of-discharge Voltage | CC Mode |
2.0 V | ||
2.10 Max continuous Discharging Current |
36 A | |||
2.11 Max Pulse Discharging Current |
60 A |
3s | ||
2.12 Cycle Life |
1 C/ 100 % DOD |
≥2000 cycles | ||
2.13 Operating Temperature Range | Charging Temperature |
0~60 °C | ||
Discharging Temperature |
-20~ 60°C | |||
Storage Temperature | 1 year |
-20~ 45°C | ||
2.14 Appearance | Without break, scratch, distortion, contamination, leakage and so on | |||
Discharge curves:
Details:
Applications of Benergy Lifepo4 Battery:
Here are some common uses for cylindrical cells:
Portable Electronics: batteries are commonly used in portable electronics like digital cameras, remote controls, flashlights, and portable gaming devices.
Toys and Games: Many children's toys and games require batteries to operate, such as remote-controlled cars, action figures, and board games.
Household Devices: batteries are also commonly used in household devices such as wall clocks, smoke detectors, and TV remotes.
Medical Devices: Some medical devices, such as blood glucose monitors, use AA batteries as a power source.
Camping and Outdoor Gear: AA batteries are a popular choice for camping and outdoor gear such as lanterns, GPS devices, and portable radios.
Emergency Lighting: AA batteries are commonly used in emergency lights and flashlights, as they are reliable and easy to replace.
...
What is an Lifepo4?
LiFePo4 battery mean lithium Iron Phosphate battery which is a kind of lithium ion rechargeable battery. The single voltage is 3.2V and capacity can be 90mAH to 300AH.
LiFePo4 batteries are the safest lithium battery type currently avaliable on the market today. With characteristic of lighter weight, smaller size, longer cycle life, free maitainance, no pollution, no memory effect they can fully replace lead acid batteries and Ni-MH/Ni-CD batteries.
Benergy has been producing and exporting Lifepo4 cells since 2009 and we have been providing quality, reliable and safe battery solutions worldwidely.
Why choose Benergy Lifepo4?
Design:
Safety is the most important for battery using.
Brand:
Quality:
* Professional Lithium Iron Phosphate Cell Maker since 2009 when Lifepo4 cell technology is still quite new.
Benergy can provide you the Lifepo4 single cells or battery packs based on your detail applications.
We're not satisfied until you are - contact us to see how we can exceed your expectations!
sales@benergytech.com
