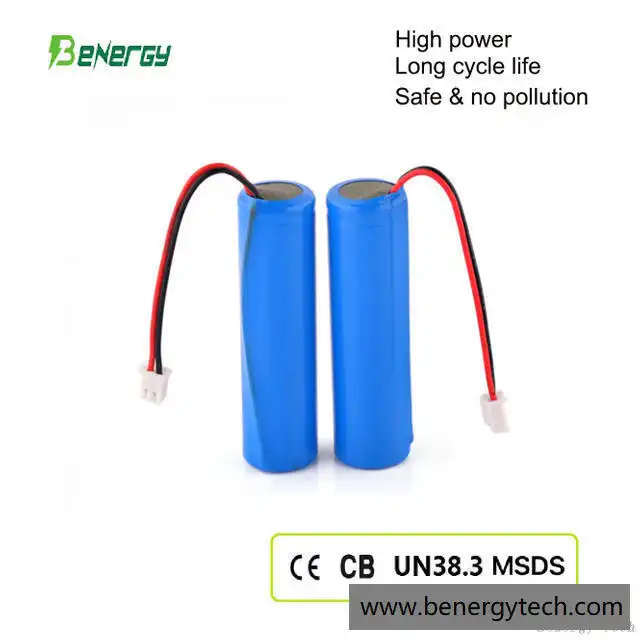

Lifepo4 cell 3.2V 2000mAH rechargeable batteries 18650 for torchlight 1

Lifepo4 cell 3.2V 2000mAH rechargeable batteries 18650 for torchlight 2

Lifepo4 cell 3.2V 2000mAH rechargeable batteries 18650 for torchlight 3

Lifepo4 cell 3.2V 2000mAH rechargeable batteries 18650 for torchlight 4

Lifepo4 cell 3.2V 2000mAH rechargeable batteries 18650 for torchlight 5

Lifepo4 cell 3.2V 2000mAH rechargeable batteries 18650 for torchlight

Model:

BPS-LFP3V2AH

HS Code:

003240

Brand:

BENERGY

Inquiry

Write a Review

Rechargeable Lithium ion Battery 3.2V 2000mAH for Emergency light, emergency drive, night light, desk light, wall light, solar street light battery, flashlight

Model No.: BPS-LFP3V2AH

Characteristic:

1. Long cycle life: 4000 times Charge and discharge at 1C, 80% DOD

2. High Energy Density: 2000mAH single cell weight 40g, size:18*65mm (Diameter*Height)

3. High safety: No fire and explosion in overcharge test;

4. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.

Parameter:

Item		Condition/ Note	Specification	Remarks
2.1 Nominal Capacity		1C discharge capacity	2000mAh
2.2 AC Impedance		At AC 1000 Hz	≤40 mΩ
2.3 Nominal Voltage			3.2 V
2.4 Cell Size		Cell Diameter	18.3±0.1 mm Max. 18.5 mm	For details, please prefer to Figure 1.
2.4 Cell Size		Cell Height	65.2±0.3 mm Max. 65.5mm	For details, please prefer to Figure 1.
2.5 Cell Weight		（Cell net weight）	40± 5 g
2.6 End-of-charge Voltage		CC Mode	3.65 V
2.7 End-of-charge Current		CV Mode	0.3 A
2.8 Charging Method		Standard Charging	1 C at CC/CV	60 min
2.8 Charging Method		Max Continuous Charging	6 C at CC/CV	10 min
2.9 End-of-discharge Voltage		CC Mode	2.0 V
2.10 Max continuous Discharging Current			2000mA
2.11 Max Pulse Discharging Current			4000mA	3s
2.12 Cycle Life		1 C/ 100 % DOD	≥4000 cycles
2.13 Operating Temperature Range	Charging Temperature		0~60 °C
	Discharging Temperature		-20~ 60°C
	Storage Temperature	1 year	-20~ 45°C
2.14 Appearance		Without break, scratch, distortion, contamination, leakage and so on

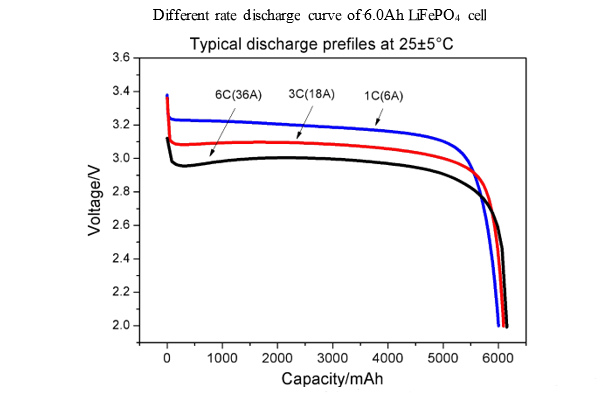

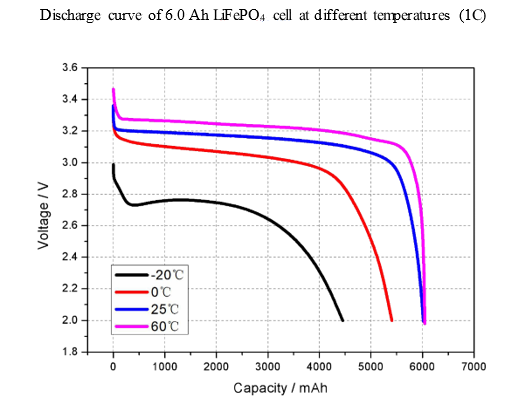

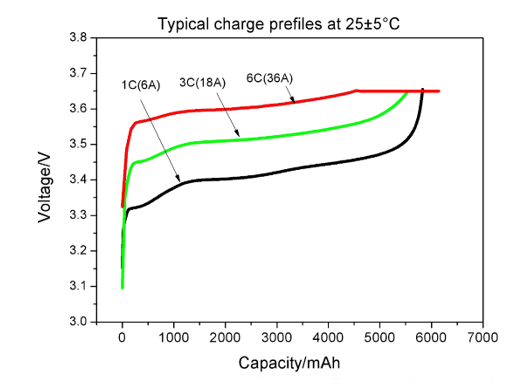

Discharge curves:

20210928221926_48669 (1)

20210928222003_46946

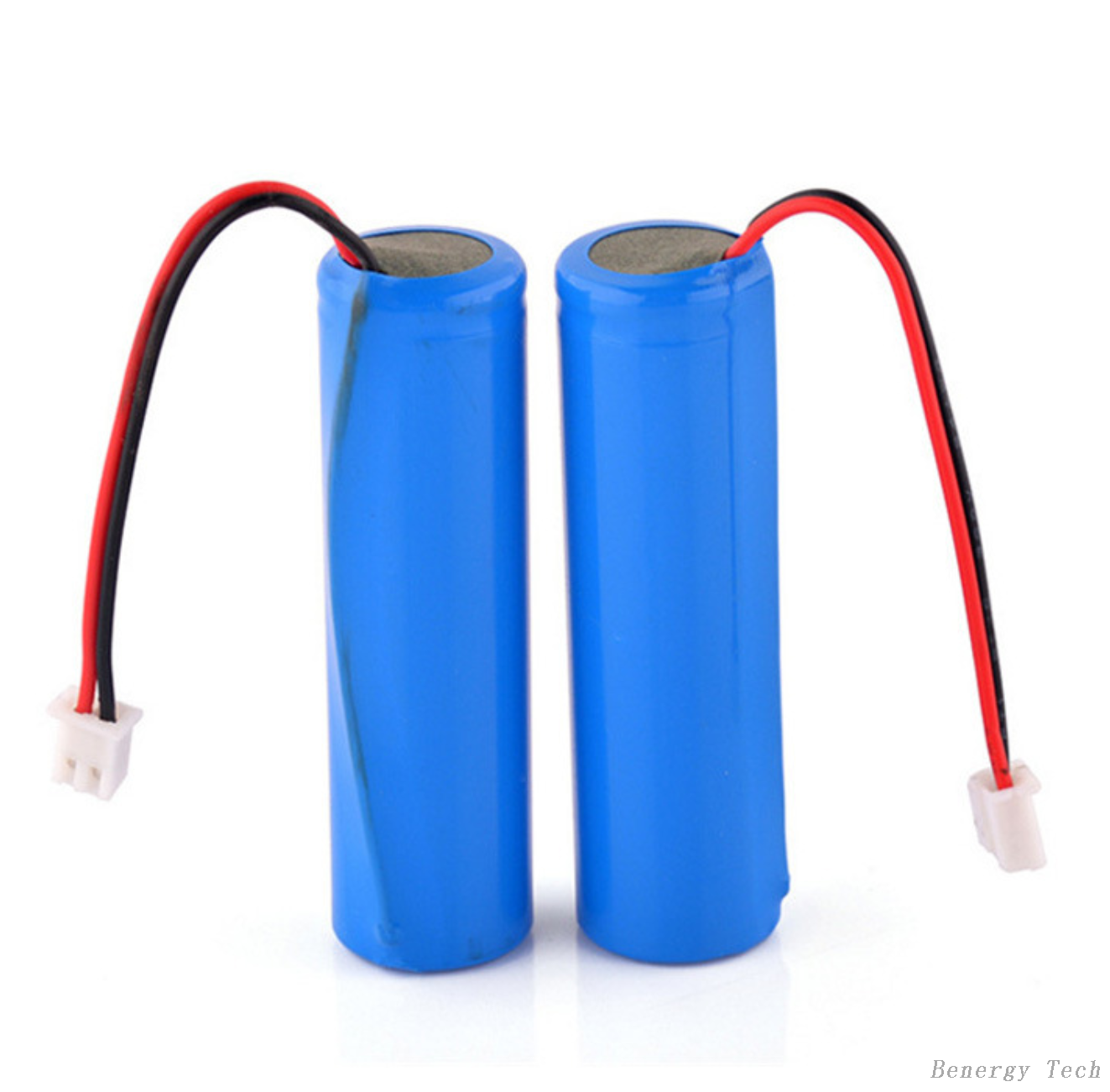

Details:

QQ图片20230616093627

Applications of Benergy Lifepo4 Battery:

Benergy Lifepo4 batteries can be widely used for Electric bike, emergency light, emergency drive, night light, desk light, wall light, solar street light battery, flashlight ...

圆电应用 1606

Production machine and production line

20210511113539_73523

Why choose Benergy Lifepo4?

Design:

Safety is the most important for battery using.

Brand:

Registed our own Brand: BENERGY in European Union and HK.

Welcome OEM, ODM.

Quality:

* Professional Lithium Iron Phosphate Cell Maker since 2009 when Lifepo4 cell technology is still quite new.

* All cells are Level A 100% New Lifepo4 Cells

* 3.2V single lifepo4 cells , available both Aluminum Shell and Plastic Shell Prismatic Cells.

* With bar code/ QR code, can trace every cell information for the whole production process.

* Strict testing during every production step. Final testing before shipping.

* Provide testing data of each cell before shipping.

Service

* Can arrange the shipping for customers.

* Can customize the battery pack

Certification

certification 9
