Benergy Industrial lithium batteries manufacturer since 2009

Rechargeable Lifepo4 Battery Pack Lithium Iron Phoshpate battery pack 60V 20Ah-1726125436141845 1

Rechargeable Lifepo4 Battery Pack Lithium Iron Phoshpate battery pack 60V 20Ah-1726125436141845 2

Rechargeable Lifepo4 Battery Pack Lithium Iron Phoshpate battery pack 60V 20Ah-1726125436141845 3

Rechargeable Lifepo4 Battery Pack Lithium Iron Phoshpate battery pack 60V 20Ah-1726125436141845 4

Rechargeable Lifepo4 Battery Pack Lithium Iron Phoshpate battery pack 60V 20Ah-1726125436141845 5

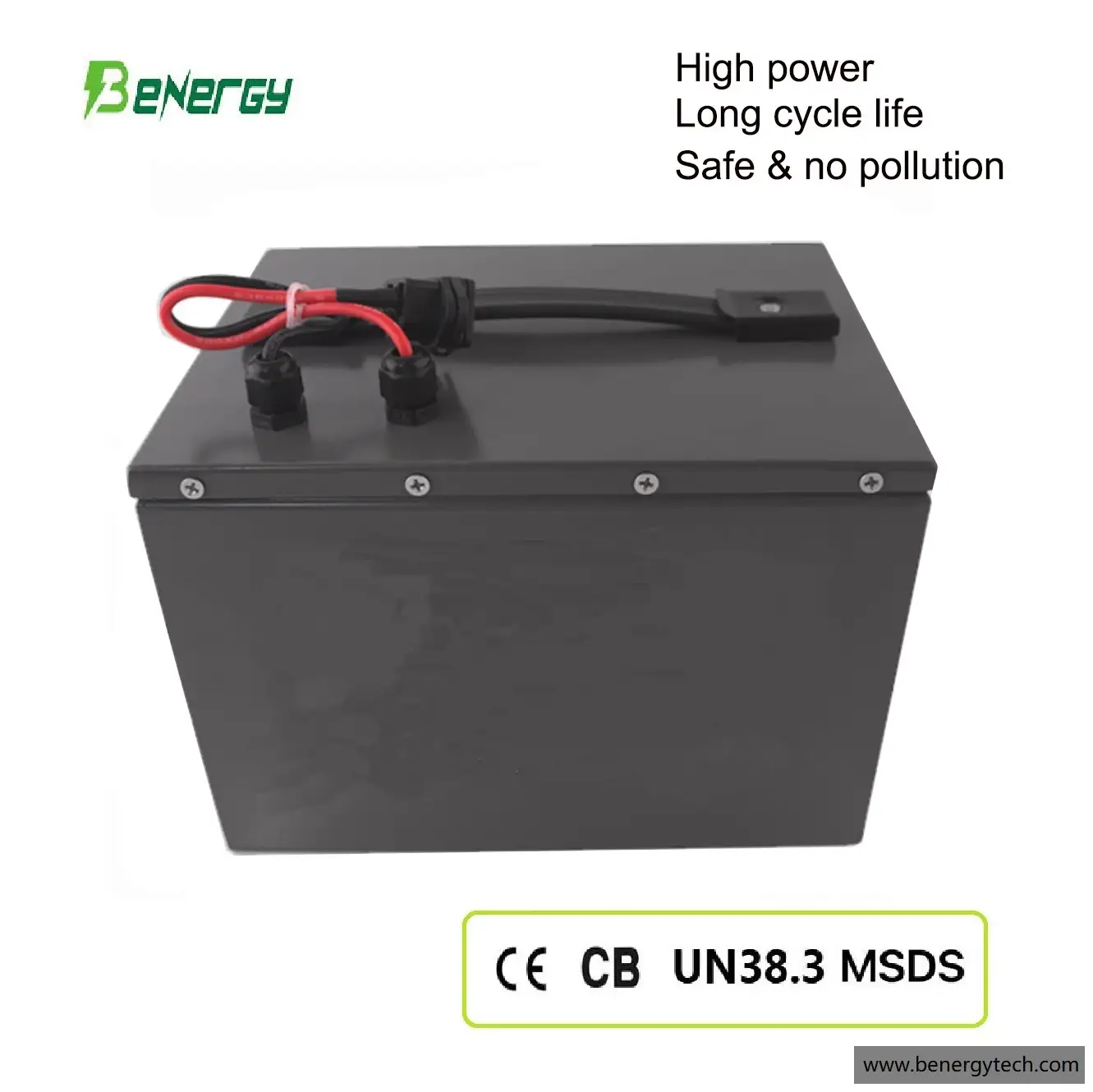

Rechargeable Lifepo4 Battery Pack Lithium Iron Phoshpate battery pack 60V 20Ah-1726125436141845

For Electric-Scooter, electric tricycle, UPS etc.

Features:

Benergy 60V battery packs are composed by grade A cells and advanced BMS. With higher energy density, zero pollution and longer cycle life, this battery can fully replace lead acid battery. These batteries are widely used for electric scooter, Tuk tuk, electric tricycle, electric rickshaw and other electric vehicles etc.

Model:

BPS-6030AHP

Voltage:

60V

Capacity:

30AH

Size:

260×220×160mm (W,L,H)

Size in inch:

10.24*8.66*6.33 inch (W,L,H)

Weight:

25.0KG±0.5Kg

Weight in pound:

55.12 lb

Function:

SOC indicator

Inquiry

Write a Review

Specification

Program name	Standard	Condition
Lithium battery pack	60V 20AH	Actual capacity: ≥ 20Ah
Single cells	3.7V 2500mAh
Pack way	16S8P (128pcs cells)
Battery pack weight	About 6kg 13.23 pound
Battery pack size	225200180mm 8.598.787.87 inch	WidthLengthHeight,or Customized
Case material	Plastic case
Max charging current	5A	Can be adjusted
Max. continuous discharge current	10A	Can be adjusted
Peak discharge current	30A	Can be adjusted, within 3 seconds
Discharge port	P+ & P-
Charge port	C+ & C-
Storage humidity	≤85%
Storage temperature range	- 10 ℃ to 45 ℃
Discharge temperature range	-20—60℃
Charge temperature range	0—45℃
Input and output wire	Silicone Wire

Products Detail

Case color can be orange, blue or yellow.

60V 20A 水印 - 副本

60V 20AH 6202137

60V 20AH 6202137 - 副本

Product Advantages

Rechargeable Lifepo4 Battery Pack Lithium Iron Phoshpate battery pack 60V 20Ah-1726125436141845 9

Long cycle life

More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles).

Rechargeable Lifepo4 Battery Pack Lithium Iron Phoshpate battery pack 60V 20Ah-1726125436141845 10

Compact in size and light in weight

1/3 smaller in size, 2/3 lighter in weight than lead acid battery.

Rechargeable Lifepo4 Battery Pack Lithium Iron Phoshpate battery pack 60V 20Ah-1726125436141845 11

High safety

No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.

Good charging and discharging performance

3C continous discharge and 10C burst.

Full Green And No Pollution

All raw material of the batteries are environmental-friendly.

Wide working temperature range

From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.

Bar Code management system

All data is managed by system, we can trace the cell information and match every pack with closest data.

Automatic equipment

Produced with automatic equipment.

Application

Package

Transport

Certifications

Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.

MSDS

IEC 62133

ISO 2023

Quality

UN38

ROHS

China Classification Society

IEC62619_01

EU Brand

DGM transport

CE Certificate

UN38

UL 9540A

Sea Transportation 100Ah

FAQ

Can I buy samples for testing and do you have MOQ?

Generally we don't have MOQ for samples. We can provide you samples for testing.

How should I pay?

You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.

What is delivery time if we place an order?

It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. Order, let's confirm when you place official order.

Are your factory or trading company?

We are professional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.

What is your warranty?

We offer 2 years warranty for all our battery pack. We ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacity left. You can use it for at least 5 years for normal 1 time charge and discharge everyday.
