Features:

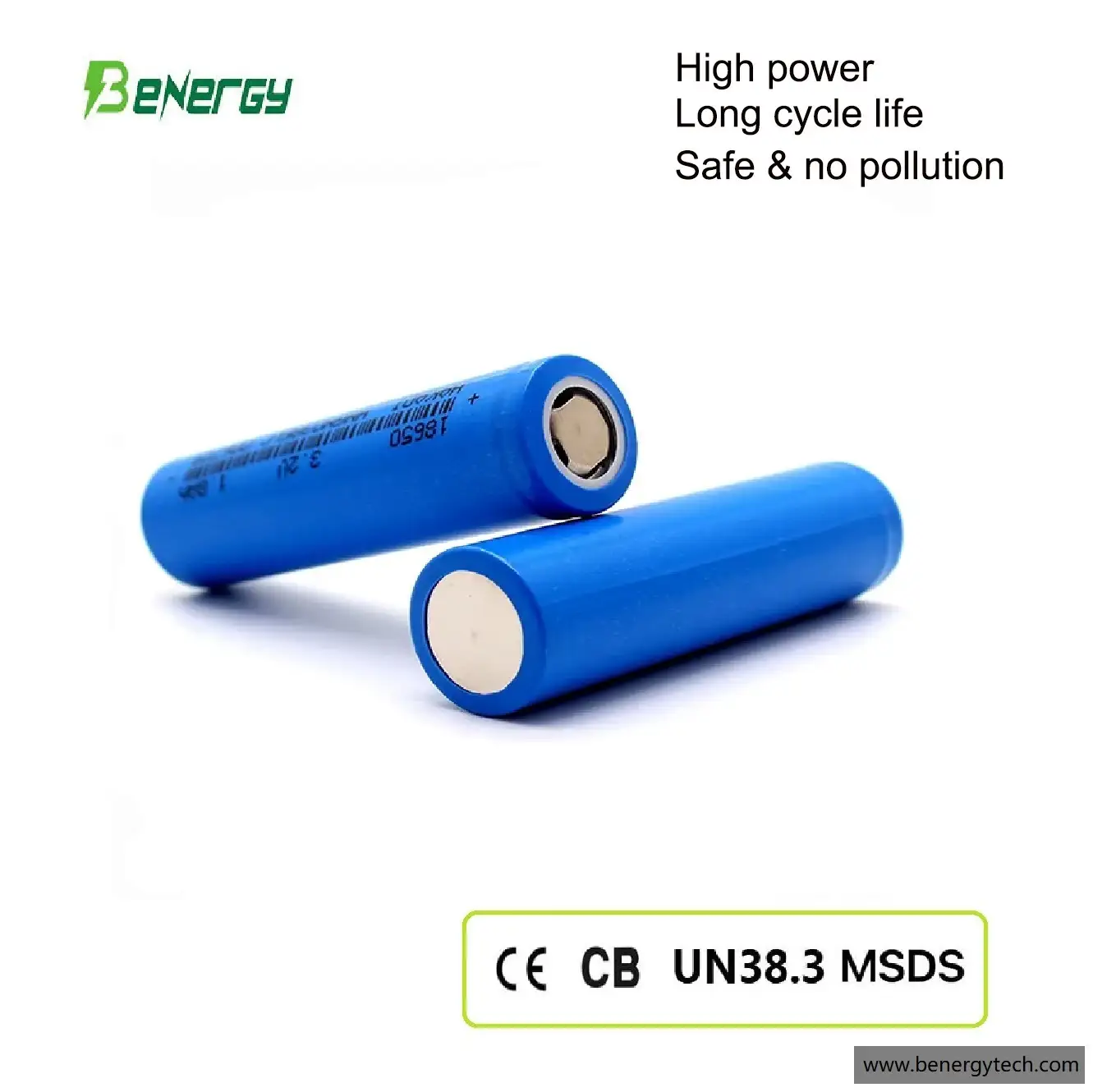

Benergy cylindrical cells are in standard AA, AAA, 18650, 26650, 32700 size. Cells are more flexible to make different battery packs. Long cycle life. High safety. Can be used for different devices, power tools, electronic products etc.
Specification
Item |
Condition/ Note |
Specification |
Remarks |
|
2.1 Nominal Capacity |
1C discharge capacity |
1600mAh |
|
|
2.2 AC Impedance |
At AC 1000 Hz |
≤40mΩ |
|
|
2.3 Nominal Voltage |
|
3.2 V |
|
|
2.4 Cell Size |
Cell Diameter |
18.45±0.2 mm |
For details, please prefer to Figure 1. |
|
Cell Height |
65.2±0.3 mm |
|||
2.5 Cell Weight |
(Cell net weight) |
39.5± 2 g |
|
|
2.6 End-of-charge Voltage |
CC Mode |
3.65 V |
|
|
2.7 End-of-charge Current |
CV Mode |
0.3 A |
|
|
2.8 Charging Method |
Standard Charging |
1 C at CC/CV |
60 min |
|
Max Continuous Charging |
2 C at CC/CV |
30 min |
||
2.9 End-of-discharge Voltage |
CC Mode |
2.0 V |
|
|
2.10 Max continuous Discharging Current |
|
4800mA |
3C |
|
2.11 Max Pulse Discharging Current |
|
10A |
3s |
|
2.12 Cycle Life |
1 C/ 100 % DOD |
≥3000 cycles |
|
|
2.13 Operating Temperature Range |
Charging Temperature |
|
0~60 °C |
|
Discharging Temperature |
|
-20~ 60°C |
|
|
Storage Temperature |
1 year |
-20~ 45°C |
|
|
2.14 Appearance |
Without break, scratch, distortion, contamination, leakage and so on |
Discharge curves
Why choose Benergy Lifepo4?
Applications of Benergy Lifepo4 Battery
Benergy Lifepo4 batteries can be widely used for Electric bike, Electric wheelchair, Electric scooter, Electric motorcycle, Golf cart, Electric robot, Vacuum cleaner, Electric mower, Wind/solar energy storage ...
What is Lifepo4 Battery?
● LiFePo4 battery mean lithium Iron Phosphate battery which is a kind of lithium ion rechargeable battery. The single voltage is 3.2V and capacity can be 90mAH to 300AH.
● LiFePo4 batteries are the safest lithium battery type currently available on the market today. With characteristic of lighter weight, smaller size, longer cycle life, free maintenance, no pollution, no memory effect they can fully replace lead acid batteries and Ni-MH/Ni-CD batteries.
● Benergy has been producing and exporting Lifepo4 cells since 2009 and we have been providing quality, reliable and safe battery solutions world widely.
Production machine and production line
Certifications
Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.
