Benergy Industrial lithium batteries manufacturer since 2009

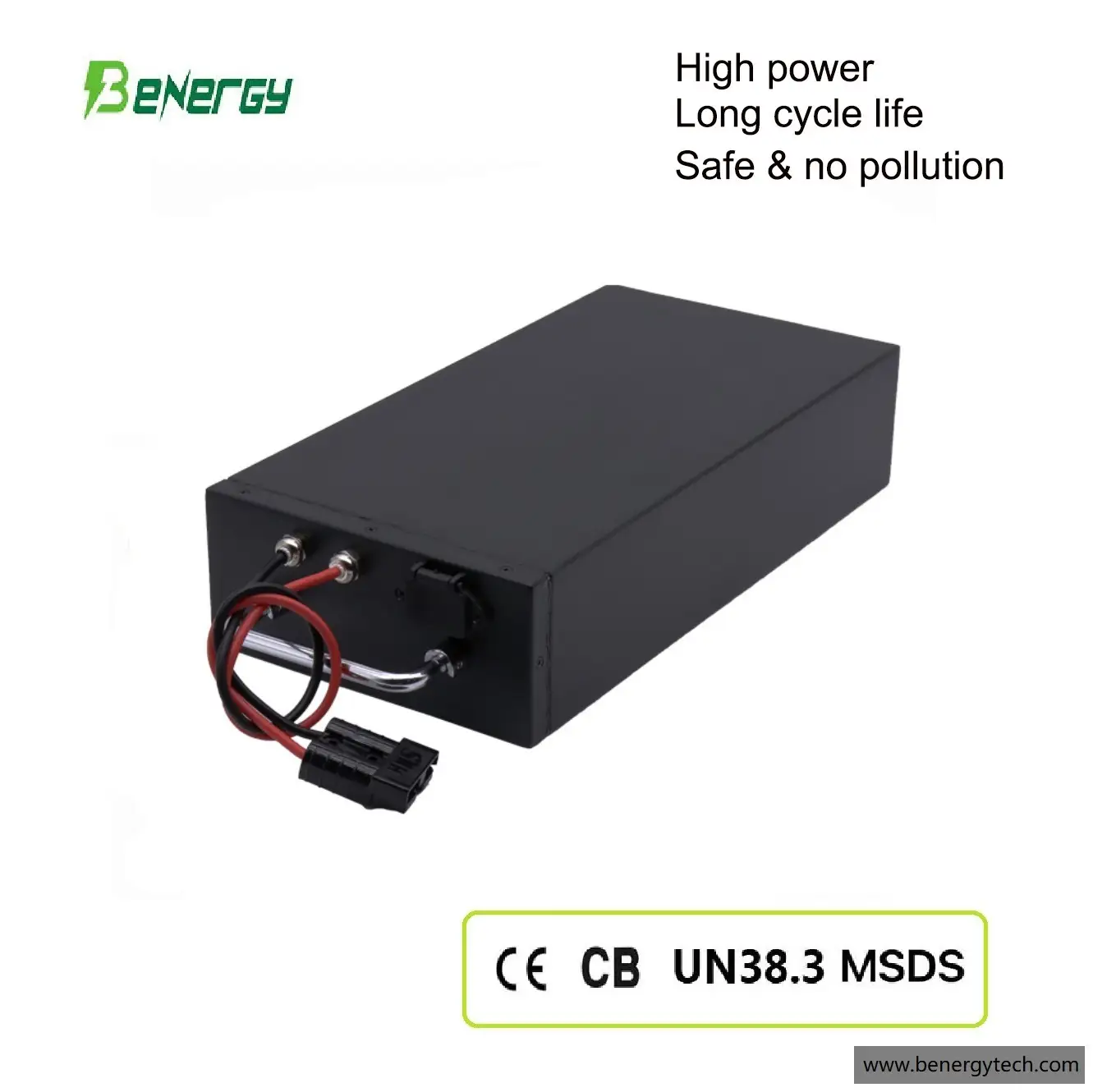

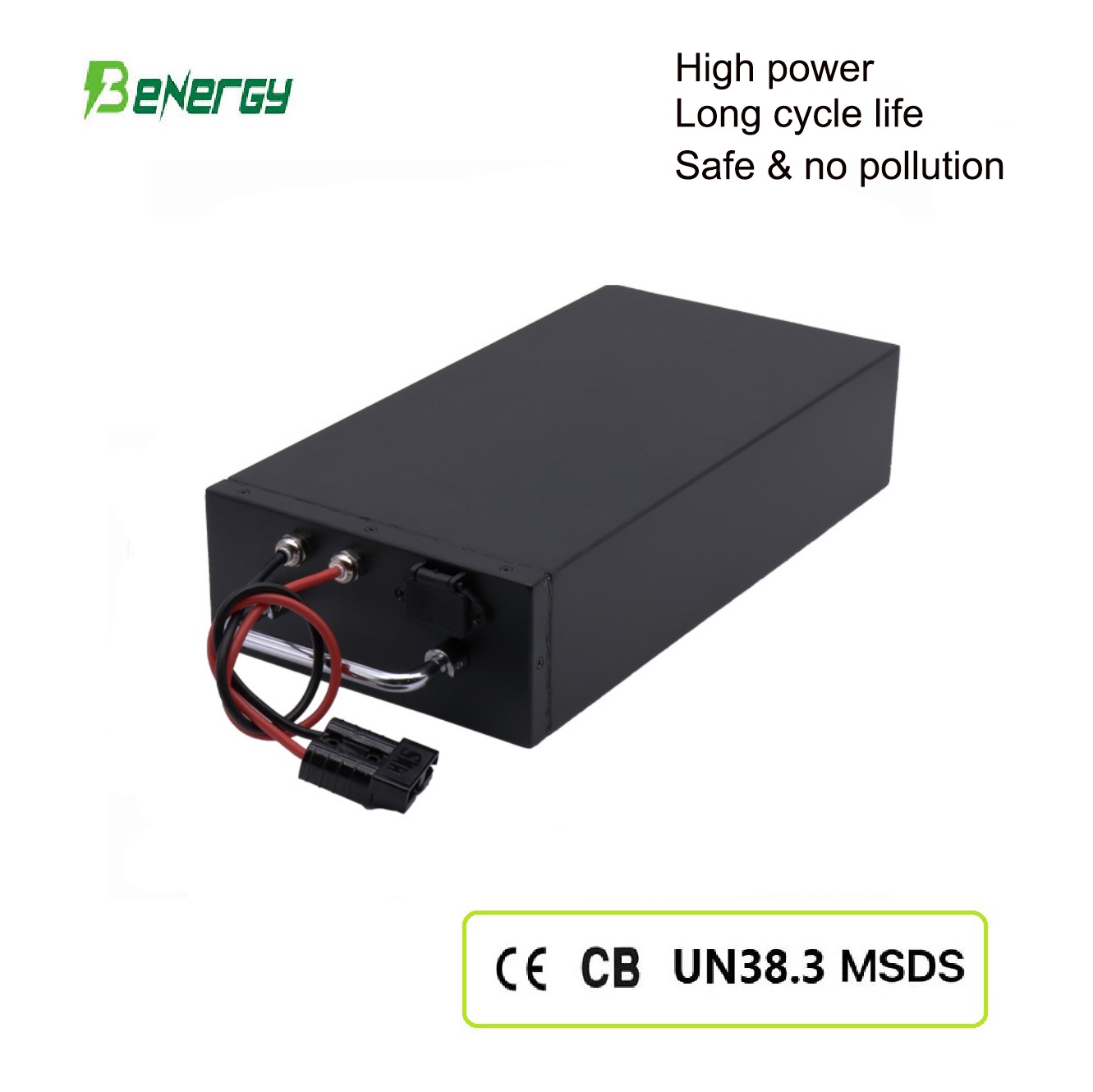

Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 1
Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 2

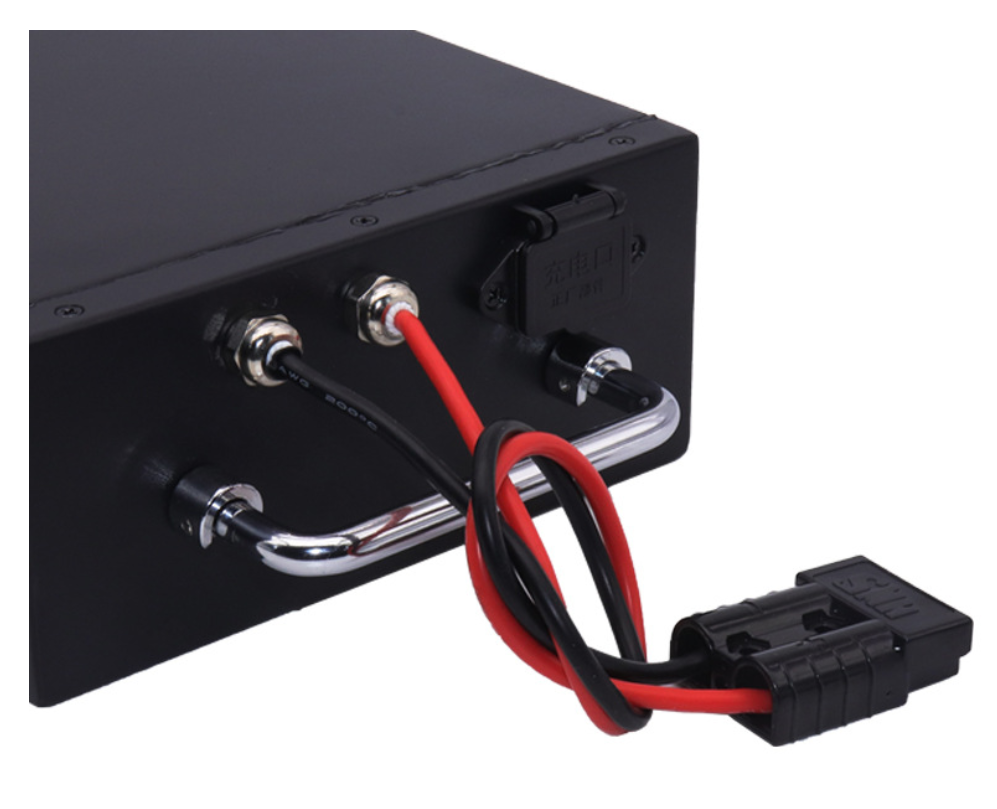

Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 3
Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 4
Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 1
Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 2
Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 3
Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 4

Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle

Features:

Benergy  48V 60V 72V E scooter battery packs are composed by grade A cells and advanced BMS. With higher energy density, zero pollution and longer cycle life, this battery can fully replace lead acid battery. They can be widely used for e-bike, scooter, lawn mower, power tools etc.

    oops...!

    no product data.

    Go to homepage

    Specification

    Product Type

    Lithium Battery

    Brand Name

    Benergy

    Voltage

    60V

    Nominal Capacity

    20AH

    Minium Capacity

    20AH

    Size

    350×180×80mm (L,W, H )
    13.78*7.09*3.15 inch (W,L,H)

    Weight

    8KG±0.25Kg
    17.64 lbs

    Charge Mode

    CC/CV (Continuous current/Continuous Voltage)

    Max Charge Current

    5A (Adjustable)

    Charge Cut Off Voltage

    71.4V±0.05

    Standard Discharge Current

    20A(Adjustable)

    Peak Discharge Current @3 sec

    80A(Adjustable)

    Discharge Cut Off Voltage

    51V

    Cycle Life

    >1500 Times (0.5C charge/discharge, 100% DOD)

    Discharge Temperature

    -10~55℃

    Charge Temperature

    0~45℃

    Application

    Electric bike, lawn mower ect.

    Warranty

    2 Years

    Indicator

    Can match

    OEM/ODM

    Yes(Accepted)

    Battery pack picture

    Benergy 60V 20AH battery  (6)
    Benergy 60V 20AH battery (6)
    Benergy 60V 20AH battery  (4)
    Benergy 60V 20AH battery (4)

    Battery Pack Size

    Benergy 60V 20AH battery  (8)

    Applications of Benergy E scooter Battery


    Benergy 60V 20AH battery pack is designed in flat long shape which make full use of space and save space to make the e scooter look more beautiful.  Lithium Battery Pack are suitalbe for various Electric scooters, electric motorcycles, Citycoco scooter, Harley motorcycles, electric scooters, electric bicycle etc .

    Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 8
    10+ Years Experience
    We boast offering unmatched, cost-effective manufacture that caters to industry.
    Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 9
    Cooperative partner
    ustomers choose us because we provide leading technology, deliver unmatched products and services.
    Benergy E-bike battery  (7) 4 拷贝
    Benergy E-bike battery (7) 4 拷贝
    QQ图片20241106165510
    QQ图片20241106165510

    Strict testing for every battery pack

    Machines 223515

    Product Advantages

    Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 13
    01
    Long cycle life
    More than 1500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles).
    Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 14
    02
    Compact in size and light in weight
    1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
    Rechargeable 48V 20AH Lithium Ion Battery Pack for Harley motorcycle 15
    03
    High safety
    No fire and explosion in overcharge test;  No explosion, no fire under collision, over charged or short circuit.
    48V 619224910
    04
    Good charging and discharging performance
    3C continuous discharge and 10C burst.
    QQ图片20230725110207
    05
    Full green and no pollution
    All raw material of the batteries are environmental-friendly.
    24V 300AH 11095220
    06
    Wide working temperature range
    From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.


    Package

    Application 3
    Application 3

    Certifications

    Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.

    1 CE
    CE
    2 MSDS
    MSDS
    3 IEC 62133
    IEC 62133
    4 ISO 2023
    ISO 2023
    5 Quality (2)
    Quality
    6 UN38
    UN38
    7 (5)
    ROHS
    8 (4)
    China Classification Society
    9 CB
    CB
    10 IEC62619_01
    IEC62619_01
    11 (3)
    EU Brand
    12 DGM transport
    DGM transport
    13 (3)
    CE Certificate
    14 UN38
    UN38
    15 UL 9540A
    UL 9540A
    16 (3)
    Sea Transportation 100Ah

    FAQ

    1
    Can I get sample? Do you have MOQ?
    Yes, you can buy samples for testing. And for samples, we don't have MOQ, you can buy some samples for testing and then place mass order to us once the sample tests good.
    2
    How should I pay?
    You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
    3
    What is delivery time if we place an order?
    It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place official order.
    4
    Are your factory or trading company?
    We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.
    5
    What is your warranty?
    We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacity left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.
    6
    Can we put 12V LiFePO4 battery pack in parallel or series by ourself?
    Yes. The battery can be put in parallel by customers. But there are few tips we need to pay attention:
    <1> Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate;
    <2> Do not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack;
    <3> Do not put the 12V batteries in series.
    <4> If you are not professional in parallel batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery;
    <5> If you want to make a higher capacity battery pack, like 12V 200Ah, pls order 12V 200AH directly. The cost for one 12V 200AH is lower than two 12V 100AH pack. To charge or discharge one 12V 200Ah directly is better than to charge or discharge two 12V 100AH packs, cycle life longer, safer.
