High Voltage Lithium Battery Packs 144V 100AH boat battery
Lithium Ion Battery Pack 144V 153.6V 230AH battery for lifting machine,heavy equipment
35.32KWH
OEM Lithium Battery 144V 153.2V 230AH for electric truck, boat, marine etc.
| Battery Module | |||
| Module modle | 144V 320AH | ||
| Series/Parallel | 48S1P | ||
| Module dimension | 1060*630*240MM 41.73*24.8*9.45" | ||
| Module weight | 240KG 529.1 lbs | ||
| Number of modules | Maximum 10pcs | ||
| Battery type | Lifepo4 | ||
| System Parameter | |||
| Rated voltage | 153.6V | ||
| Working voltage range | 144~153.6V | ||
| Charge voltage | 175.2V | ||
| System capacity | 35.32Kwh | ||
| Number of parallel batteries | 48 | ||
| Battery pack capacity | 230Ah | ||
| Rated charge current | 50A | ||
| Peak charge current | 400A | ||
| Dimention(L*W*H) | 1060*630*240MM | ||
| Charge temperature | 0~55℃ | ||
| Discharge temperature | -10~55℃ | ||
| Optimum temperature | 15~25℃ | ||
| Cooling method | Liquid cooling | ||
| Relative humidity | 5%-95% | ||
| Altitude | ≤2000M | ||
| Cycle life | ≥3500cycles @80% DOD, 0.5C/0.5C, 25℃ | ||
| Communication interface | CAN2.0/RS485/Dry | ||
| Protection | Over temperature, over current, over voltage, insulation and other mutiple protection | ||
| Display | LCD | ||
| Design lifetime | ≥10years | ||
| Certification | UN38.3/UL1973/IEC62619 | ||

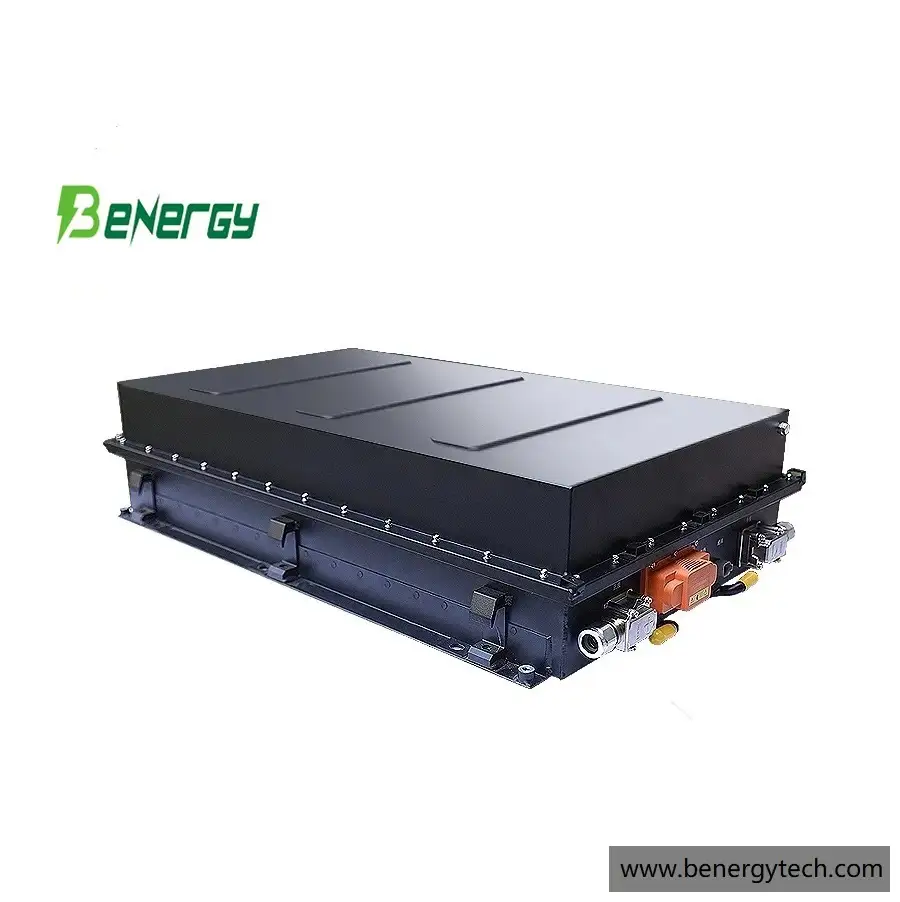

Battery pack picutre:
All of the standard modules with liquid cooling system.
144V 200AH/206AH/230AH,or other voltage/capacity is available.Max. 48pcs 3.2V lifepo4 cells is allowed.
Product Advantages
1. Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);
2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
4. Good charging and discharging performance. 3C continous discharge and 10C burst.
5. Full green and no pollution. All raw material of the batteries are environmental-friendly,
6. Wide working temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.
7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.
8. Produced with automatic equipments.
Package
Certification
--------------------------------------------------------------------------------------------
Let us show you how we can help - contact us today for more information.
Sales Engineer:Kevin Zhang
