Rechargeable 12V 8Ah Ultra Safe Li Ion Battery for Sonar Ice Fishing
12V 8AH Lithium Battery Pack Parameter Table:
| Product Type | Lithium Iron Phosphate Battery |
| Brand Name | Benergy |
| Voltage | 12.8V |
| Nominal Capacity | 8AH |
| Minium Capacity | 8AH |
| Pack way | 4S2P |
| Size | 151*65*97mm (W,L,H) 5.944"*2.56"*3.82" (W,L,H) |
| Weight | 900g±150g 1.99 lb |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Max Charge Current | 5A (Adjustable) |
| Charge Cut Off Voltage | 14.6V±0.05 |
| Standard Discharge Current | 4A |
| Max continuous discharge current | 5A(Adjustable) |
| Peak Discharge Current @3 sec | 30A(Adjustable) |
| Discharge Cut Off Voltage | 10V |
| Terminal | silver plating terminal |
| Cycle Life | >2500 Times (0.5C charge/discharge, 100% DOD) |
| Discharge Temperature | -10～55℃ |
| Charge Temperature | 0～45℃ |
| Application | Electric sprayer, children's toy car, mini cart, EV etc. |
| Warranty | 2 Years |
| IP range | IP65 |
| Indicator | Can match |
| OEM/ODM | Yes(Accepted) |

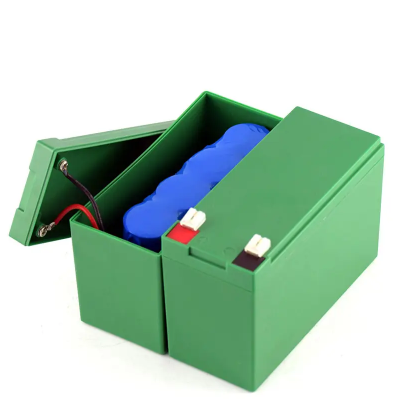

Battery pack picutre (Case color can be different):
Size details: 5.944"*2.56"*3.82" (W,L,H)
Product Advantages of Benergy Batteries
1. Extended lifespan. More than 3000 cycles of charging and discharging (at a rate of 1C) with 80% capacity retention.
2. Small and lightweight. Occupying only 1/3 of the size and weighing 2/3 less than lead acid batteries.
3. Exceptional safety. Withstands overcharging without causing fire or explosion, and remains intact during collisions, overcharging, or short circuits.
4. Efficient charging and discharging capabilities. Capable of continuous discharge at 3C and burst discharge at 10C.
5. Environmentally friendly. All materials used in the batteries are eco-friendly.
6. Wide temperature range. Performs well in extreme temperatures ranging from -20ºC to 60ºC.
7. Efficient tracking system. Utilizes a bar code management system to monitor and match cell information for each pack.
Certificate
![certification 9]()
Applications
![Application 94455]( "Application 94455")

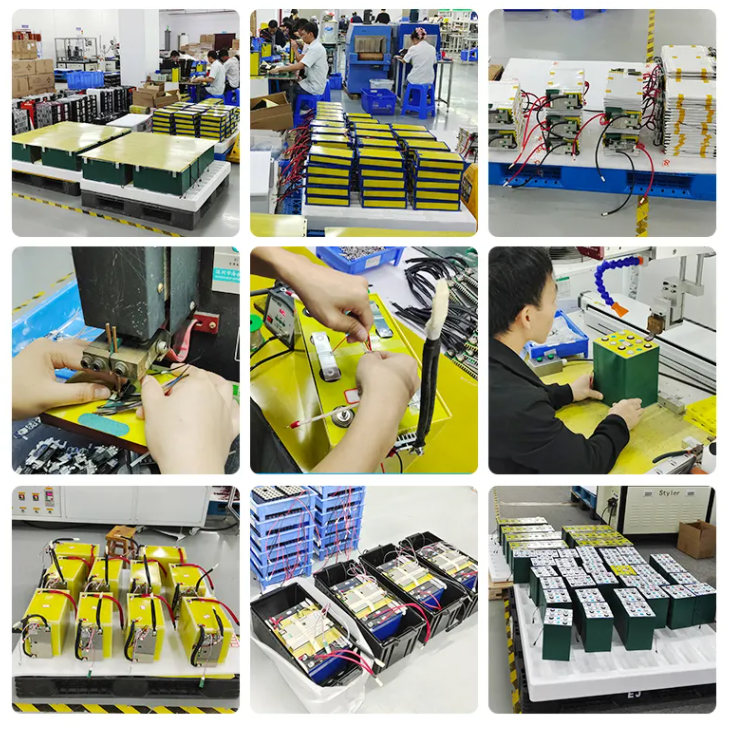

Battery pack production details and packages
Shipping
Benergy can arrange shipping for you. Shipping way can be by sea, by air,by UPS/DHL/Fedex delivery to your door.
Let us show you how we can help - contact us today for more information.
Sales Engineer:Kevin Zhang
