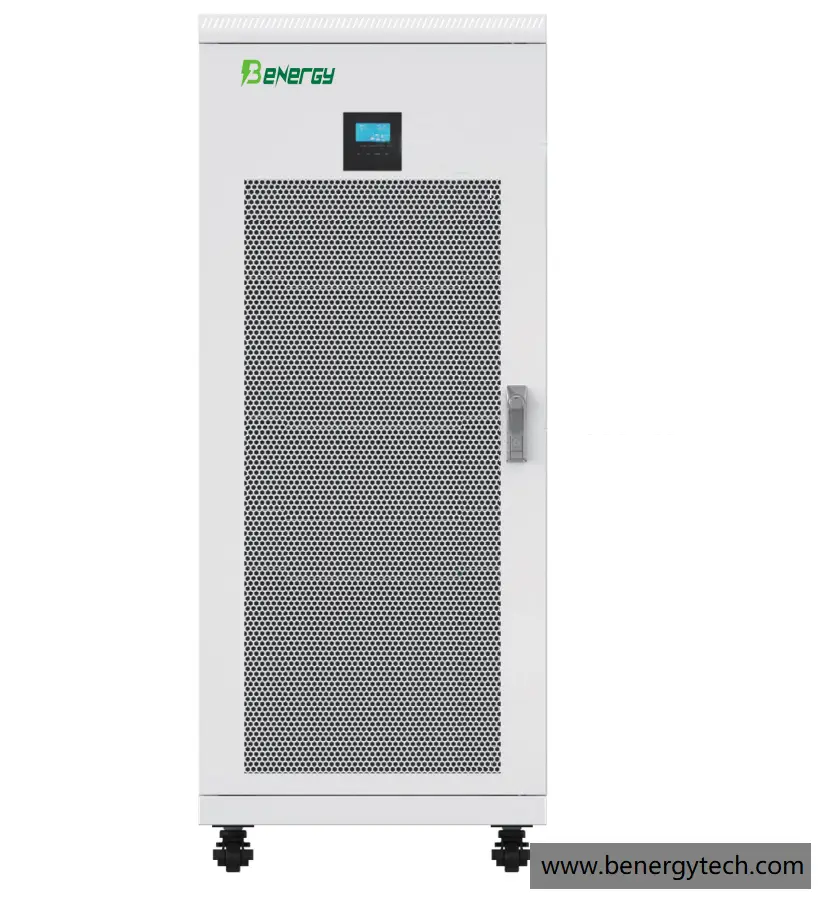

Lithium Battery Energy Storage System 652.8V 86AH 56KWH for UPS, energy storage system
Features:
Benergy High Voltage 652.8V 86AH Lithium battery packs utilizes high quality Lifepo4 cells for consistent power, fast charging efficiency, long cycle life and zero pollution. Stackable design. They are widely used for UPS, Energy Storage System, off grid solar system, household solar system etc.
Specification
|
Specification |
|
|
Rated voltage |
652.4V |
|
Rated capacity |
86AH |
|
Continuous discharge current |
86A |
|
Max peak discharge current |
110A/10S |
|
Standard charge current |
50A |
|
Fast charge current |
86A |
|
Can parallel number |
2~15 |
|
Optional capacity range |
10.24~76.8KWH |
|
Cooling way |
Natural cooling |
|
Battery type |
Lifepo4 battery |
|
Designed lifespan |
＞15 years @25℃ |
|
Cycle life |
≈10000 Times |
|
Rated grid frequency |
50HZ/60HZ |
|
Certification |
|
|
Battery certification |
CE, UN38.3, MSDS,ROHS |
|
Cell certification |
CE, UL, IEC62109, IEC62477, EN61000, UN38.3 |
|
Mechanical parameters |
|
|
Battery size |
600*1200*1552mm (W,L,H) 23.62*47.24*61.1 inch (W,L,H) |
|
Chassis size / weight |
560KG±5Kg 1234.59 lbs |
|
Environmental parameters |
|
|
Storage humidity range |
≤85%RH |
|
Running temperature range |
20℃~55℃ |
|
Recommended running temperature |
25℃ |
|
IP range |
IP21 |
product description
Application
Customers Choose Our Batteries For Their Applications
40KWH for household solar system.
Certifications
Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.
