    Lithium Batteries 48V Lithium Battery Pack 48v 20AH for E-bike Electric motorcycle


    48V 15AH Lithium Battery Pack Parameter Table:

    Product Type Lithium  Battery
    Brand Name Benergy
    Voltage 48V
    Nominal Capacity 20AH
    Minium Capacity 20AH
    Pack way 16S4P
    Size

    220*130*240mm

    8.66"*5.12"*9.45" (W,L,H) or customized

    Weight

    6500g±50g

    14.33 lb

    Charge Mode CC/CV (Continuous current/Continuous Voltage)
    Max Charge Current 3A (Adjustable)
    Charge Cut Off Voltage 58.4V±0.05
    Standard Discharge Current 10A
    Max continuous discharge current 15A(Adjustable)
    Peak Discharge Current @3 sec 20A(Adjustable)
    Discharge Cut Off Voltage 40V
    Cycle Life >2500 Times (0.5C charge/discharge, 100% DOD)
    Discharge Temperature -10~55℃
    Charge Temperature 0~45℃
    Application Electric scooter, electric motorcycle, e-bike, lawn mower..
    Warranty 2 Years
    For motor 1500W
    IP range IP63
    OEM/ODM Yes(Accepted)

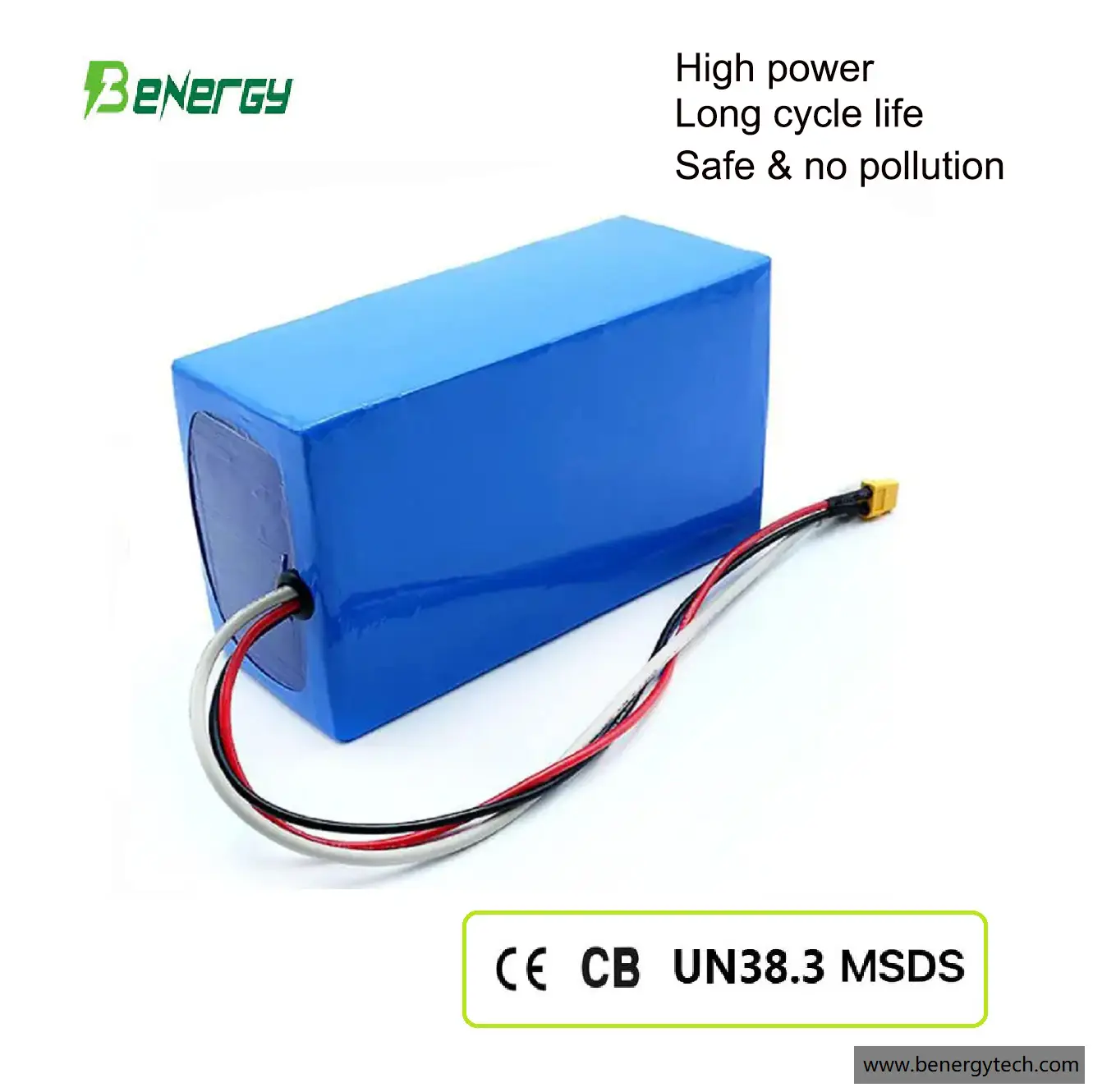

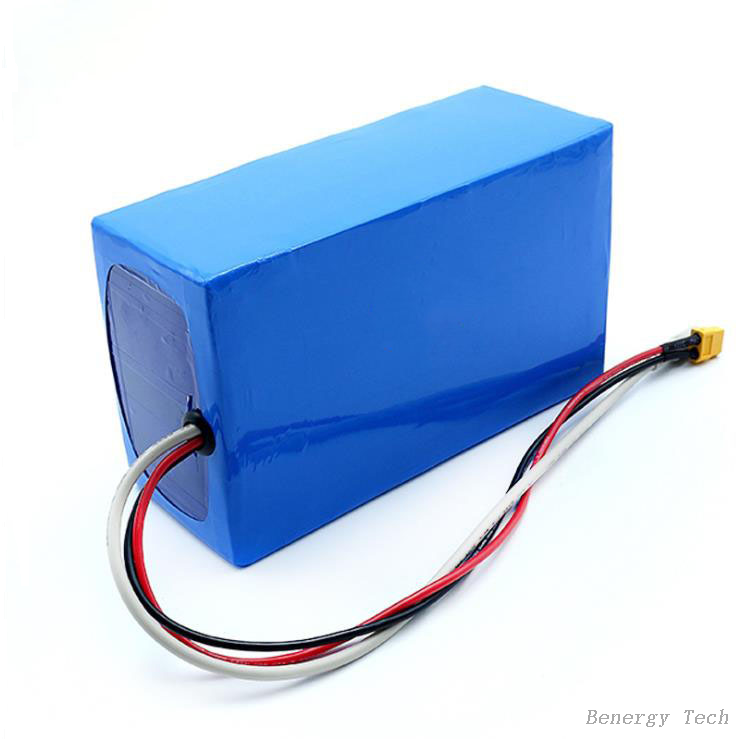

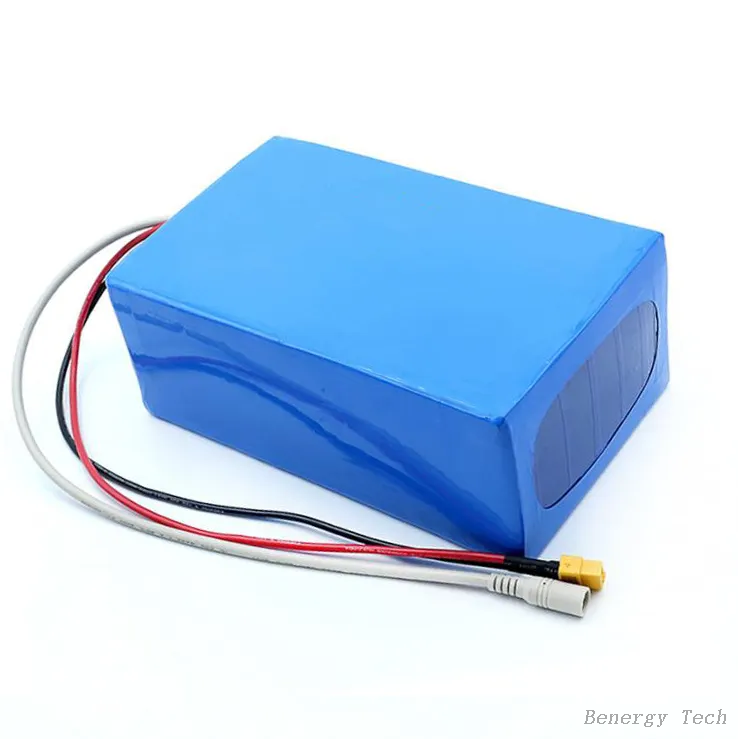

    Battery pack picutre:  Pack size can be customized

    微信图片_20230614095459微信图片_20230614095622

    What is the advantage of Benergy Lifepo4?

    Benergy LiFePO4 Battery Cells are with superior performance and safety. Certified with ISO9001, these cells are highly reliable and have a long cycle life. We provide customized size and shape of LiFePO4 Battery packs according to the customer's requirement. Now our LiFePO4 batteries are the ideal choice for many applications like EV, Solar system, UPS, Power Tools etc.


    Package

    Package by pallet6

    Applications:

    Benergy 48V lithium Iron Phoshpate battery packs can be widely used for 3-whell car, clean sweeper, lawn mower, UPS etc.

    应用 3607

    FAQ:

    Q1: Can I get free sample?
    A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.


    Q2: How should I pay?
    A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.


    Q3: What is delivery time if we place an order?
    A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.


    Q4: Are your factory or trading company?
    A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.


    Q5.What is your warranty?
    A5:We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.


    Q6.Can we put 12V LiFePO4 battery pack in parallel or series by ourself?
    A6:Yes. The battery can be put in parallel by customers. But there are few tips we need to pay attention:
    1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate;
    2> Do not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack;
    3> Do not put the 12V batteries in series.
    4> If you are not professional in parallel batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery;

    5> If you want to make a higher capacity battery pack, like 12V 200Ah, pls order 12V 200AH directly. The cost for one 12V 200AH is lower than two 12V 100AH pack. To charge or discharge one 12V 200Ah directly is better than to charge or discharge two 12V 100AH packs, cycle life longer, safer.

    Get in touch with us
    just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
    Related Products
    no data
    You can give us your requirement about battery packs and we will give you the best solutions. We welcome any OEM or ODM works!
