12V 180AH Lithium Battery Pack for UPS, RV,Marine,Trolling Motor,Electric boat
12V 180AH Lithium Battery Pack Parameter Table:
Product Type | Lithium Iron Phosphate Battery |
Brand Name | Benergy |
Voltage | 12.8V |
Nominal Capacity | 180AH |
Minium Capacity | 180AH |
Pack way | 4S2P |
Size | 483*170*240mm (W,L,H) 19.02*6.69*9.45“ |
Weight | 25Kg±150g 55.12 lbs |
Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
Max Charge Current | 100A (Adjustable) |
Charge Cut Off Voltage | 14.6V±0.05 |
Standard Discharge Current | 50A |
Max continuous discharge current | 100A(Adjustable) |
Peak Discharge Current @3 sec | 150A(Adjustable) |
Discharge Cut Off Voltage | 10V |
Terminal | silver plating terminal |
Cycle Life | >2500 Times (0.5C charge/discharge, 100% DOD) |
Discharge Temperature | -10~55℃ |
Charge Temperature | 0~45℃ |
Application | Electric sprayer, children's toy car, mini cart, EV etc. |
Warranty | 2 Years |
IP range | IP65 |
Indicator | Can match |
OEM/ODM | Yes(Accepted) |

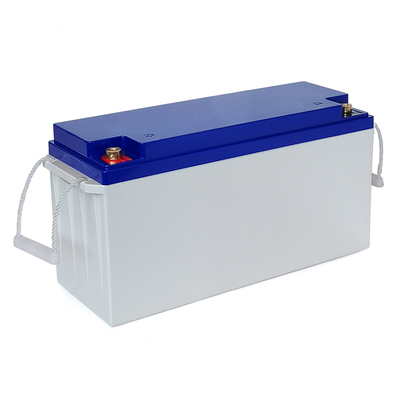

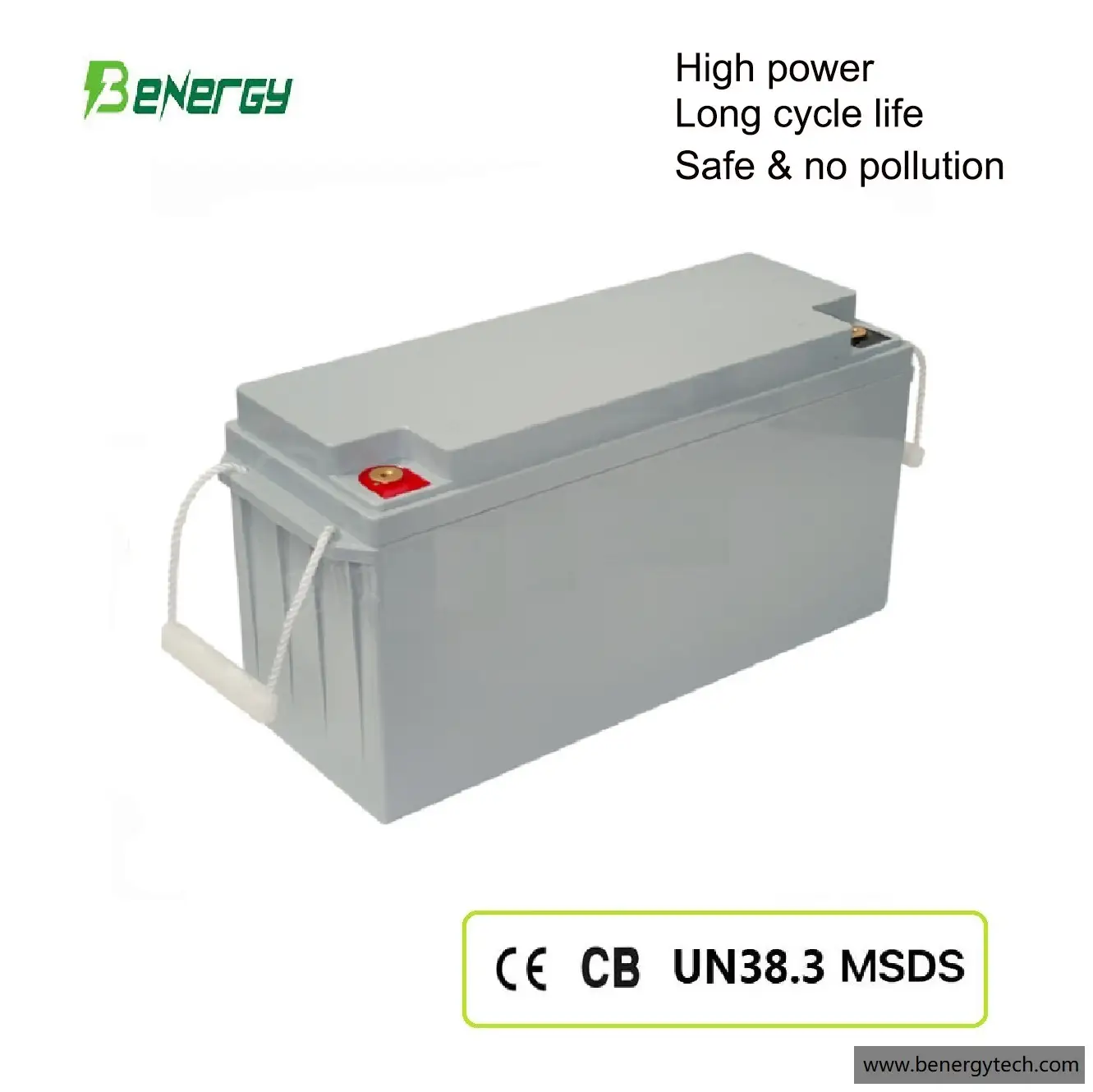

Battery pack picutre (Case color can be different):
Black case with no indicator.
Black case add indicator to show battery pack SOC condition.
(Depends on your requirement if need indicator or not. )
Size details:
Product Advantages
Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);
2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
4. Good charging and discharging performance. 3C continous discharge and 10C burst.
5. Full green and . All raw material of the batteries are environmental-friendly,
6. Wide working temperature range: From -20ºC to 60ºC, extremely cold and hot weather will not affect its performance.
7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.
8. Produced with automatic equipments.
CertificateApplications
Packages
Shipping
Benergy can arrange shipping for you. Shipping way can be by sea, by air,by UPS/DHL/Fedex delivery to your door.
FAQ:
Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is delivery time if we place an order?
A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.
Q4: Are your factory or trading company?
A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.
Q5.What is your warranty?
A5:We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.
