BXL-LFP-50AHP
Benergy
0050

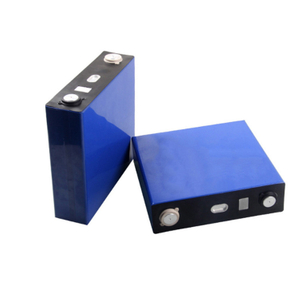

3.2V 50AH Lifepo4 Prismatic cell.
|  |
Item | Specification | Remark | |
1. Nominal Capacity | 50AH | 0.5C Capacity | |
2. Nominal Voltage | 3.2V | ||
3. AC Impedance Resistance | ≤1mΩ | AC 1KHz | |
4. Discharge Cut-off Voltage | 2.5V | ||
5. Charge Cut-off Voltage | 3.65V | ||
6. Standard charging current | 25A | 0.5CmA | |
7. Max. Charging Current | 50A | 1CmA | |
8.Standard Discharging current | 25A | 0.5CmA | |
9. Max. continuous discharging current | 100A | 2CmA | |
10.Peak discharging current within 120 sec | 100A | 2CmA | |
11.Peak discharging current within 5sec | 250A | 5CmA | |
12.Weight | ≤1.35kg | ||
13.Size | 36*130*154mm | Thickness, Length, Height | |
14.Cycle life | ≥3000 Times | 100%DOD, at 0.5C discharge | |
15.Operating Temperature | Charge | 0 ~ +45℃ | |
Discharge | -20 ~ +55℃ | ||
16. Storage Temperature | less than 1 month | -10~+45℃ | Recommend storage at 20℃ during transportation |
less than 6 months | -10~+35℃ | ||
Charge curve:
Battery size details:
Connecting way:
If charge single cell, please do charge it with connector. DO NOT charge the cell with corocodile connector directly.
Our production lines for single cells:
Characteristic:
1. Long cycle life: More than 3000 times (charge and discharge at 1C, 80% capacity retention after 3000 cycles);
2. High safety: No fire and explosion in overcharge test;
3. High Energy Density, screw terminal. Very easy for pack composing or cell replacing if the battery pack have any problem after some years.
4. Good charging and discharging performance;
5. All raw material of the batteries are environmental-friendly;
6. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.
7.Produced with automatic equipments.
Package:
Applications of Benergy Lifepo4 Battery:
Electric bike, Electric wheelchair, Electric scooter, Electric motorcycle, Golf cart, Electric robot, Vacuum cleaner, Electric mower, Wind/solar energy storage ...
FAQ:
Q1: Can I get free sample?
A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is delivery time if we place an order?
A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.
Q4: Are your factory or trading company?
A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.
Q5.What is your warranty?
A5:We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge and discharge everyday.
